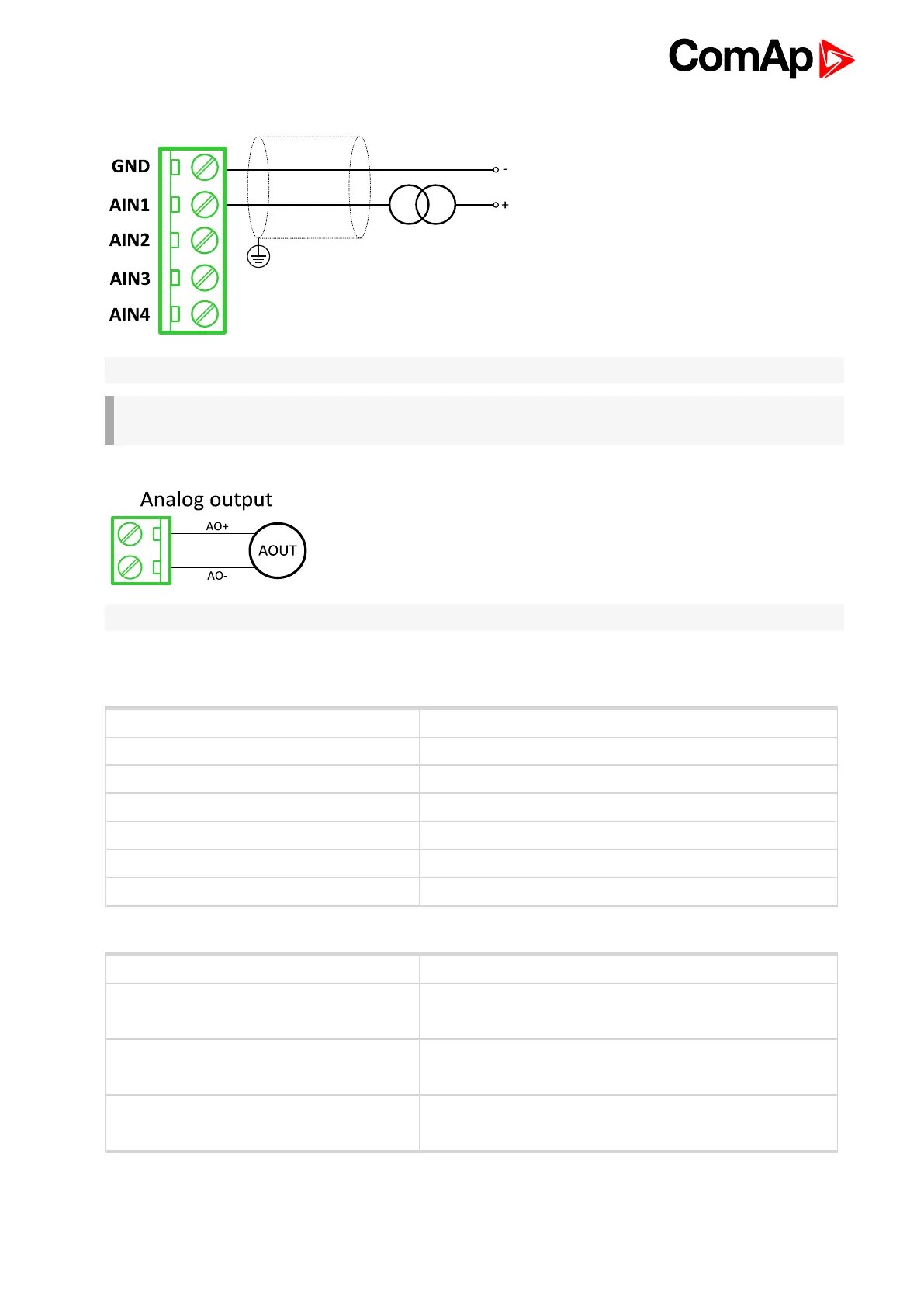

Current sensor - passive
Note: Range: ± 0-20 mA
IMPORTANT: Physical analog input range is 0-20mA. In sensor configuration in PC tool it is
necessary to chose +- 20mA active sensor HW type to ensure proper function of analog input.
Analog outputs
Note: Range: 0 to 20 mA ± 0,33 mA
Technical data
Power supply 8 to 36 V DC
Current consumption 100 mA at 24V ÷ 500 mA
Interface to controller CAN1
Protection IP20
Storage temperature - 40 °C to + 80 °C
Operating temperature - 30 °C to + 70 °C
Dimensions (WxHxD) 95×96×43 mm (3.7’×3.8’×1.7’)
General data
Number of channels 8
Voltage
Range 0-100 mV
Accuracy: 1,5 % ± 1 mV out of measured value
Current
Range: 0-20 mA
Accuracy: 2.5 % ± 0,5 ohm out of measured value
Resistive
Range: 0- 250 Ω
Accuracy: 1 % ± 2 ohm out of measured value
Analog inputs
