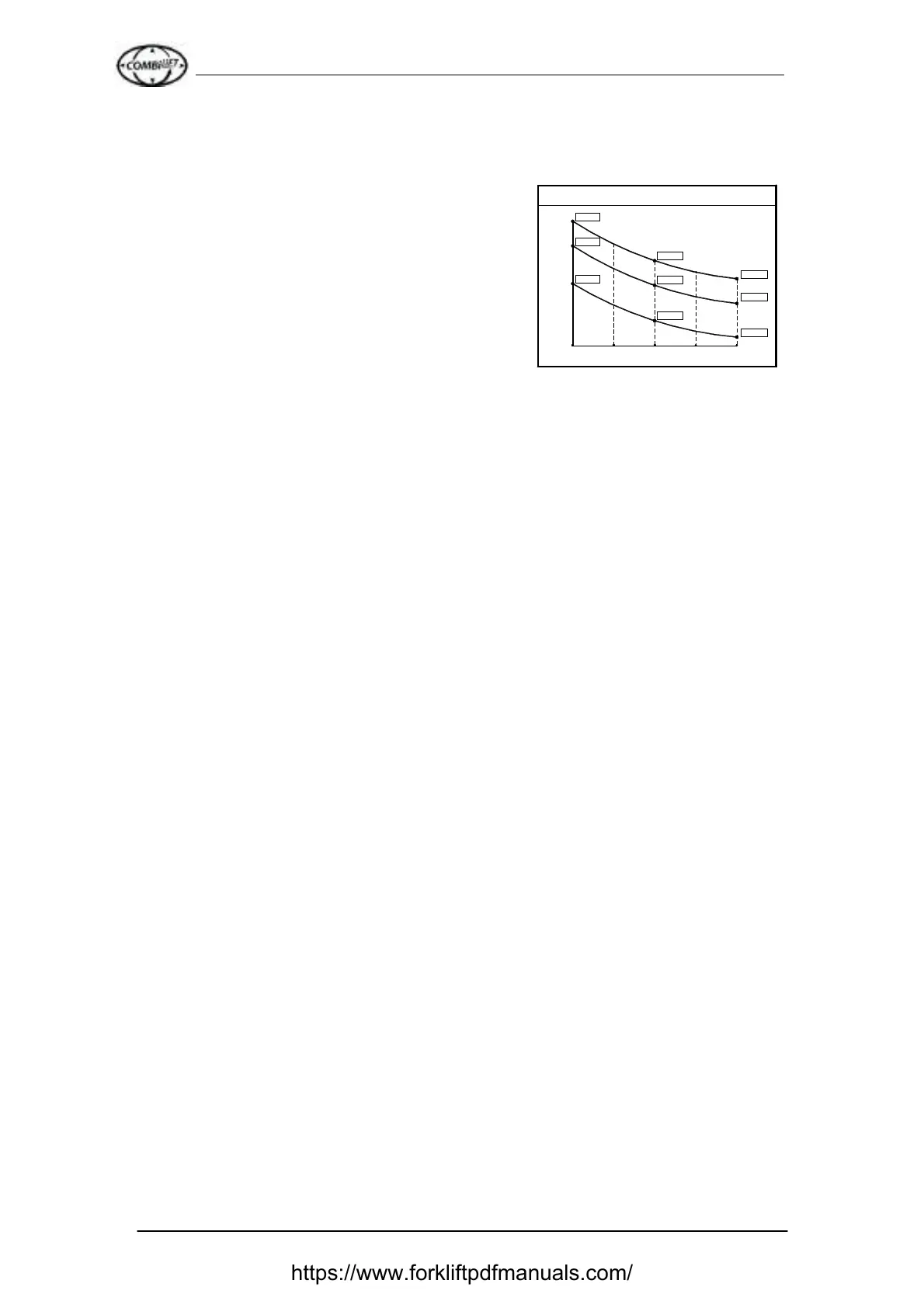

1.3: Load Chart
The rated capacity of the truck is illustrated
on a load chart located inside the cabin.
The load centre is determined by its centre
of gravity and is measured from the front
face of the forks to the centre of gravity of
the load. It is assumed that the centre of
gravity in the vertical direction is no greater
than the specified horizontal load centre.
It is the responsibility of the operator to determine that the weight of the load
to be handled is not greater than the capacity shown on the load chart. The
operator must not handle any load that is greater than the capacity shown.
1.4: Serial Plate
The Serial Plate is the Metal Disc that is fixed to the Combilift in the cabin of
every machine. It is engraved with a number of details, which are required by
law. These are:
The Trucks serial Number
Its rated Capacity
It’s unladen weight
It’s date of manufacture
The manufacturers name and address.
This plate should not be removed by anyone. If lost order a replacement from
Combilift immediately.
1.5: Operator Qualification
The Combilift must NOT be operated by any other individual other than those
who have been trained to do so. Training should be carried out either by
Combilift Driver training personnel or a Combilift authorised training
organisation. Details of these organisations can be acquired from Combilift
Ltd.
Drivers should be aware of all local authority regulations and laws regarding
qualification of drivers for material handling equipment.
COMPLYING WITH 89/392/EEC
MAXIMUM STACKING CAPACITY ON A FIRM LEVEL SURFACE
600 700
LIFT HEIGHT (m)
2.5
4.5
LOAD CENTRE (mm)
800
900
?Kg
5.5
1000
?Kg
?Kg
?Kg
?Kg
?Kg
?Kg
?Kg
?Kg
