23
RT1800-S

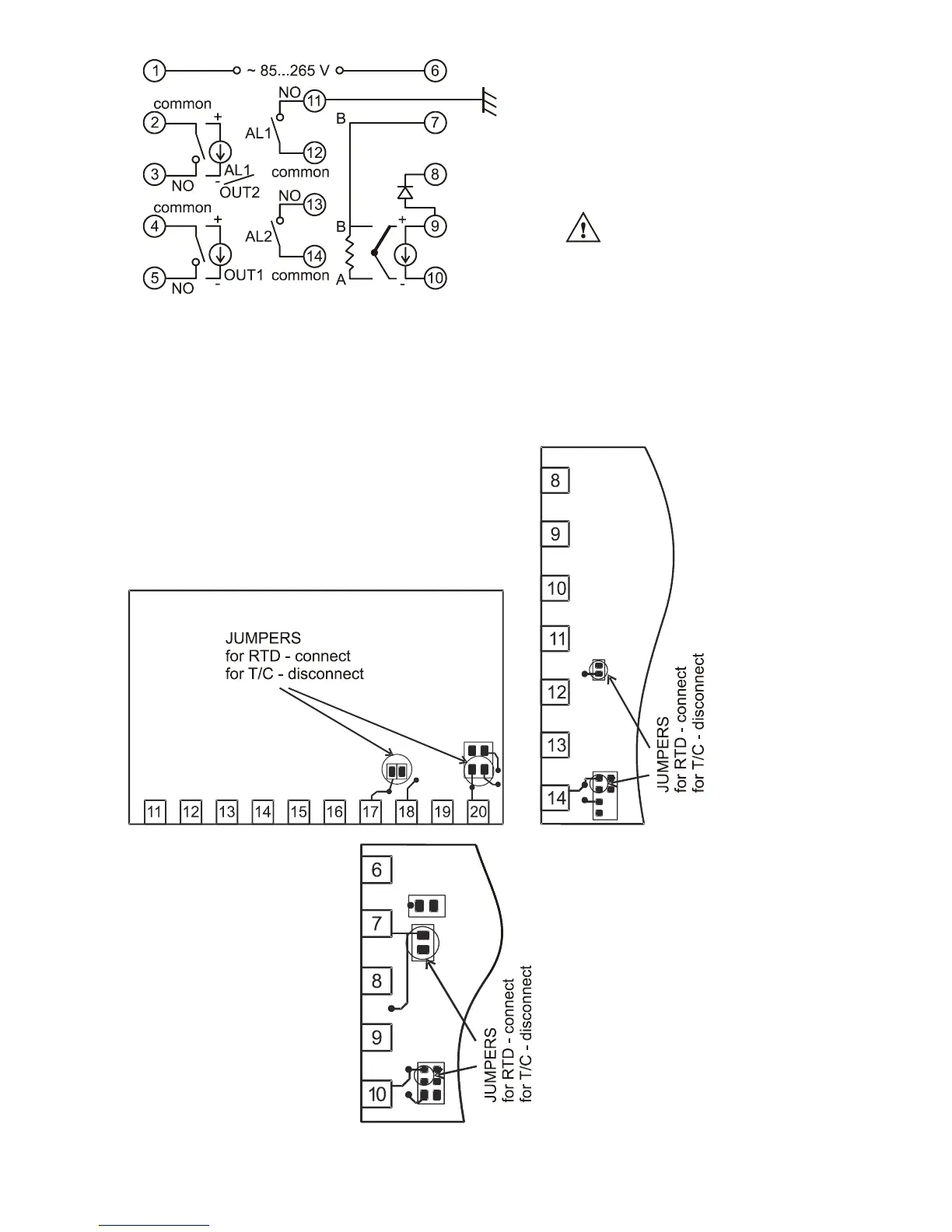

5.3.
Input type selection
If the input type has to be changed from thermocouple (v
oltage) to RTD (resistance) or vice-vers
a,
two couples of pads on c
ontroller circuit board have to be connected or disc
onnected respectively.
RT1800-H/V/B
RT1800-S
RT1800-Q
Important note:
If serial interface is installed,
see the device label
for wiring changes!
22
24
Table of Contents
Default Chapter
2
Table of Contents
2
1 Application
3
2 Technical Specifications
3
3 Operation
5
General Programming Sequence
5
Switching Among Parameter Levels
5
Parameter Adjustment
5
Controller Programming
6
Level 1: "Main Parameters" - Set Point, Alarms, Auto-Tuning, Manual Control
6
Level 2: "PID (ON/OFF) Parameters and Access to the Other Levels
7
Level 3: "Additional Parameters" - Input Type, Control Algorithm Type, Alarm Type and Parameters, Calibration and Others
10
Level 4: "Configuration Level" - Parameter Enabling, Input and Output Configuration
14
4 Appendices
16
Input Type and Range Codes
16
Alarm Type and Function
17
Error Messages
17
Linear Input Adjustment
19
Analog Output Adjustment
19
RAMP-SOAK Adjustment
20
Profile (Pattern) Control Programming
20
5 Mounting and Wiring
22
Mounting
22
Wiring
22
Input Type Selection
23
Electro-Magnetic Interference (EMI) Issues
24
6 Serial Interface
24
