Comelit 4682HD - External unit installation

6

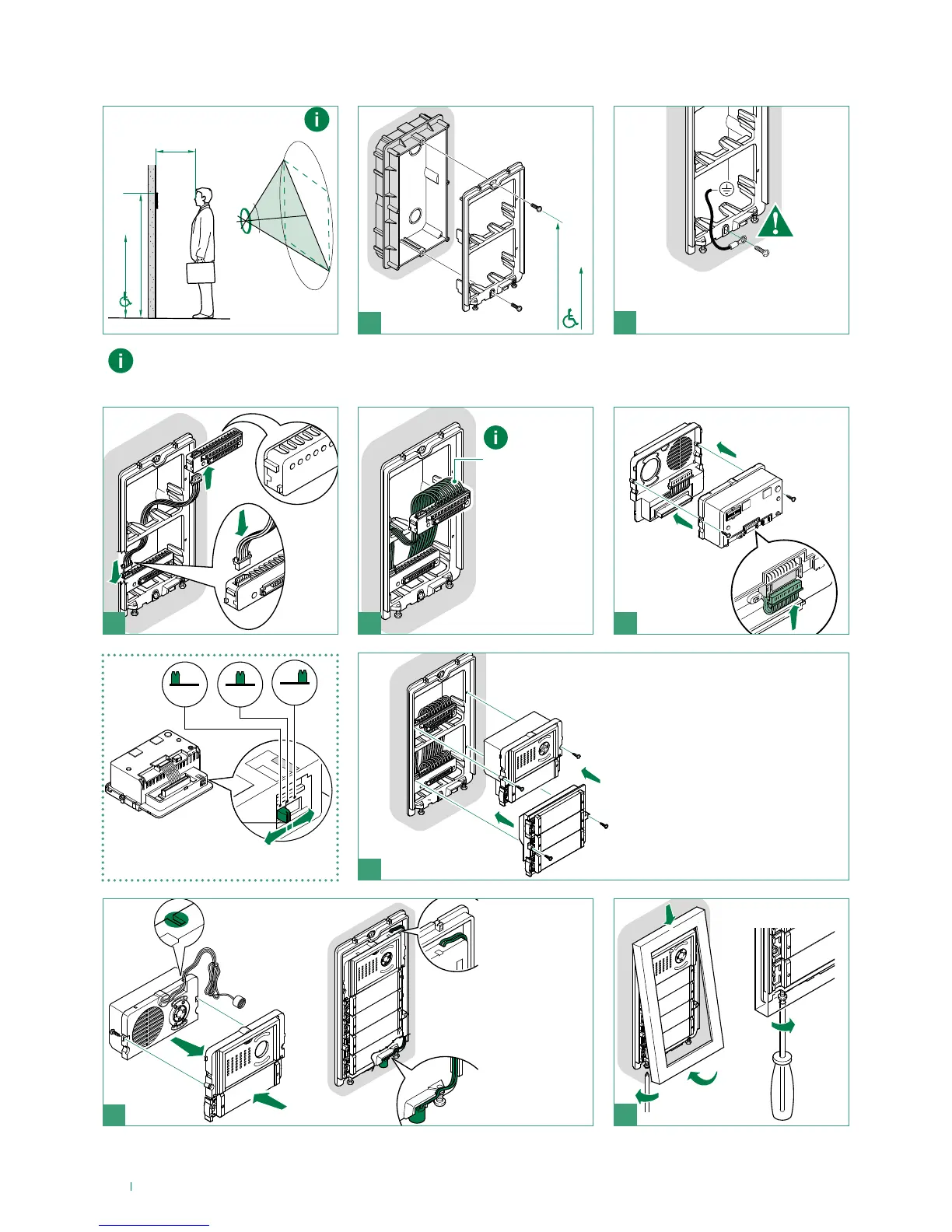

External unit installation
The camera must not be installed in front of light sources, or in places where the filmed subject is against the
light.
In dim environments, we recommend additional lighting is provided.
3 4
1
1
2
5
CAUTION
The wires
must be long
enough so as
to allow easy
programming of
the audio/video
module
LED
O
F
F
LED
O
F
F
WHITE OFF
BLUE
6
Index the modules before
proceeding with installation
(see Assigning an index number
to the “additional button
modules”)
Nameplate LED lighting selection
163 cm
130 cm
40-45 cm
125° MAX
163 cm
130 cm
1
2
Connect the module support
frame to earth
3
2
1
360°
8
2
1
3
7
Alternative microphone
position (excluding 4
module entrance panel)
Close
Open
