10
If the standard configuration settings do not reflect requirements, the buttons can be programmed dierently by carrying out
the steps below.
After programming, set S2 DIP switches 1-2-3-4 (PROG) to ON. With these DIP switch settings, the buttons manage the
programmed functions.
The buttons that are NOT programmed control the functions in row A (“Basic configuration” table).
Advanced configuration
Intercom calls
From an internal unit you can send an intercom call to:
• all devices of the same apartment (internal general intercom call)
• all devices of another apartment (external general intercom call)
• a single internal unit of an apartment identified by a dedicated intercom address different to the address that identifies
the apartment (intercom call to selective address).
• a group of internal units of the same apartment or another apartment identified by a dedicated intercom address
different to the address that identifies the apartment (selective group intercom call).
General and selective intercoms CANNOT be used together on the same riser.

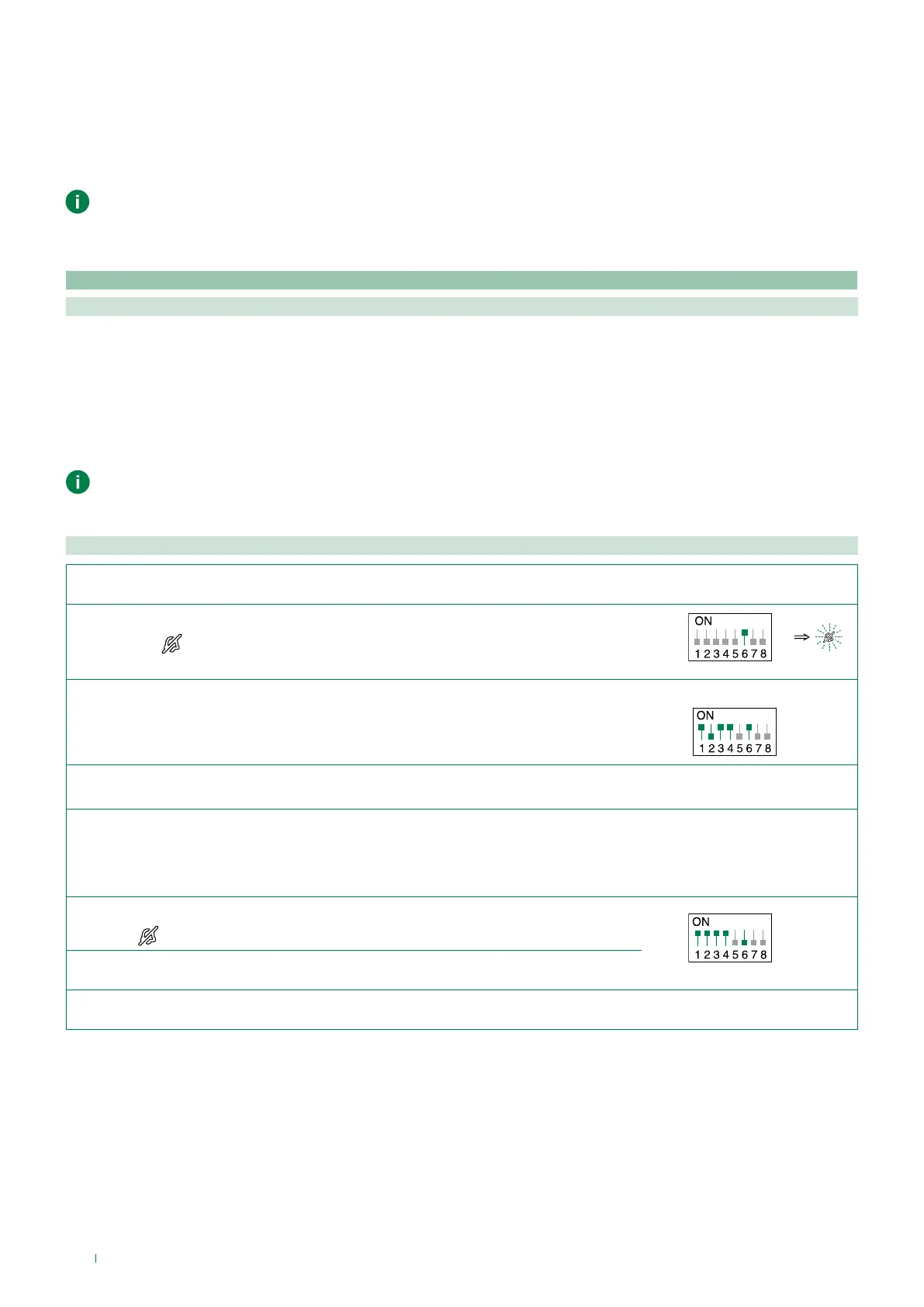

Internal general intercom call and external general intercom call: button programming
Introduction
1. Take note of the S1 DIP switch settings.
2. To enter programming mode, set S2 DIP switch 6 to ON.
» the LED
switches on
S2
3. Refer to the table “Basic configuration” and select a combination in which the
intercom function is listed for the buttons you wish to program.
Example:
S2
4. Set the S1 DIP switches according to the call address of the desired apartment. See
“Addressing table”
5. Press and release the button to be associated with the function.
» Correct procedure indication: the Lock release LED flashes for a few seconds and a confirmation tone sounds.
» Procedure error indication: the Audio LED flashes for few seconds and an error tone sounds.
6. Exit programming mode by setting S2 DIP switch 6 to OFF.
» LED
switches off
S2
7. Set S2 DIP switches 1-2-3-4 to ON.
8. Return S1 DIP switches to the original combination.
