13

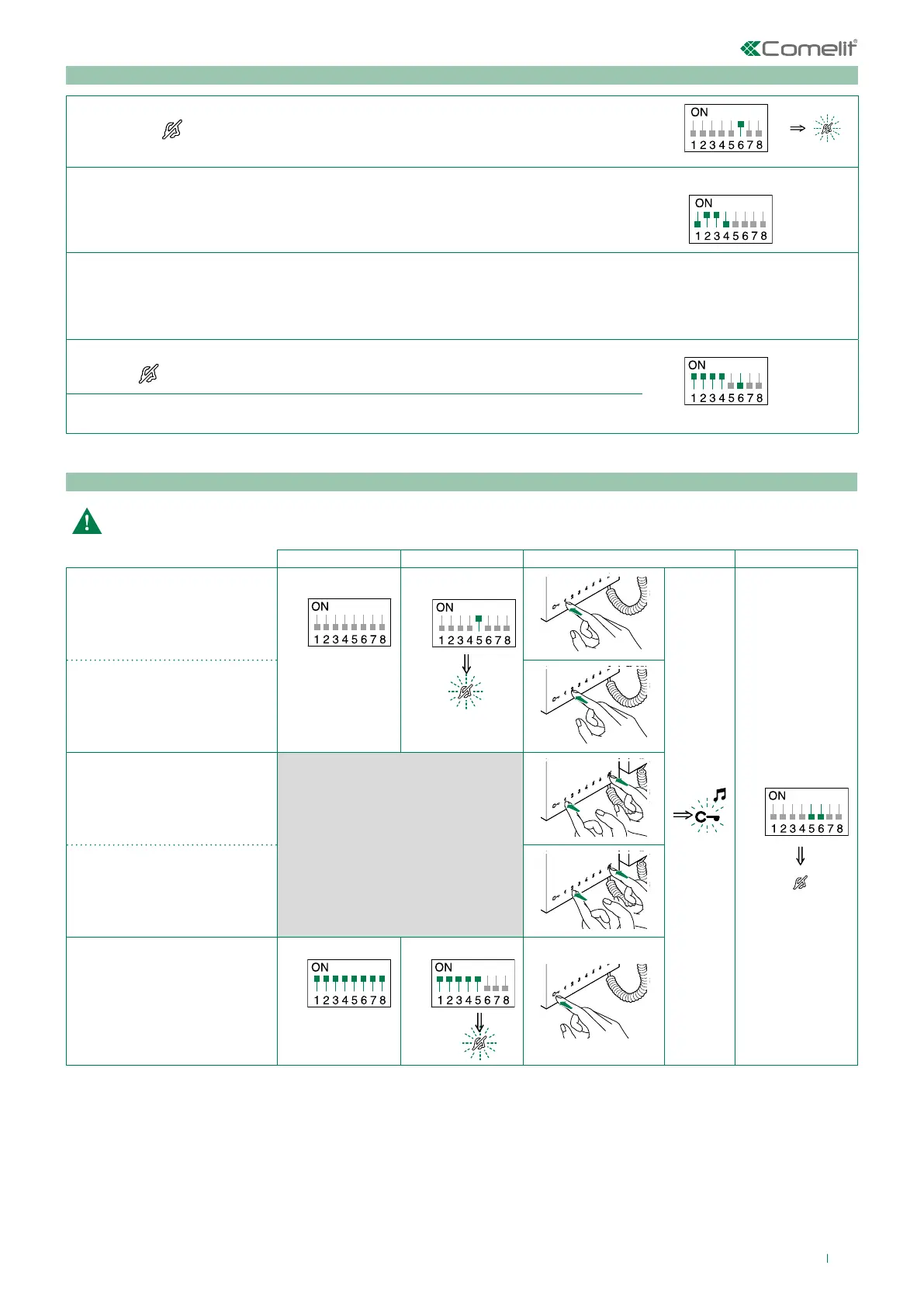

Other functions: button programming
Programming range
1. 2. 3. 4.
Range minimum address
S1
setting a code
“Addressing
table”
S2
S2
Range maximum address
Enable range
Disable range
Deleting the range
S1
S2
2 sec
1. To enter programming mode, set S2 DIP switch 6 to ON.
» the LED
switches on
S2
2. Refer to the table “Basic configuration” and set on S2 a combination in which the
function associated with the buttons you wish to program appears.
Example:
S2
3. Press and release the button to be associated with the function.
» Correct procedure indication: the Lock release LED flashes for a few seconds and a confirmation tone sounds
» Procedure error indication: the Audio LED flashes for few seconds and an error tone sounds
4. Exit programming mode by setting S2 DIP 6 to OFF.
» LED
switches off
S2
5. Set S2 DIP switches 1-2-3-4 to ON.
Take note of the S2, S1 settings and restore on completion of programming
