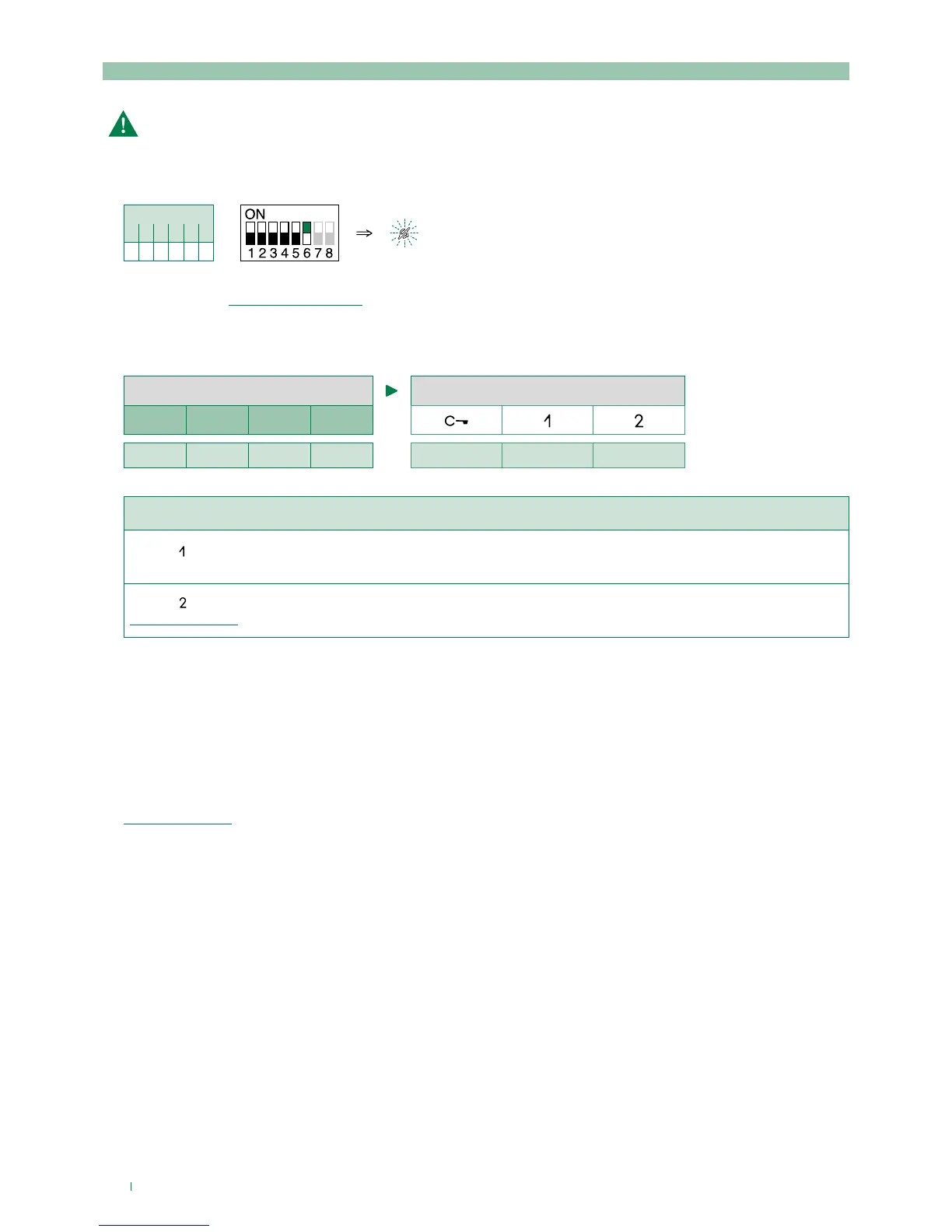

14
1. To enter programming mode, set S2 DIP switch 6 to combination 1
» the Privacy LED flashes
S2 DIP
1 2 3 4 5 6
0 0 0 0 0 1
S2
Generic actuator, Addressable actuator: button programming
Take note of the DIP-switch settings.
2. Refer to the table "Basic configuration" and select a combination in which the actuator function (ACT) is listed for the
buttons you wish to program.
Example
S2 BUTTON PROGRAMMING
DIP 1 DIP 2 DIP 3 DIP 4
0 0 1 0
ACT ACT ACT
Example programming of button 1 generic actuator, and button 2 addressable actuator to code 125
(Button
= ACT) Set S2 DIP switches 1-2-3-4 to the combination 0 0 1 0,
Set S1 DIP switches to the combination 11111111.
(Button = ACT) Set S2 DIP switches 1-2-3-4 to the combination 0 0 1 0, set S1 with address 125 in accordance with
addressing table.
3. Press and release the button to be associated with the function
» Correct procedure indication: the Lock release LED flashes for a few seconds and a confirmation tone sounds
» Procedure error indication: the Audio LED flashes for few seconds and an error tone sounds
4. To exit programming mode, set S2 DIP switch 6 to the combination 0
» the Privacy LED switches off
5. After programming, set S2 DIP switches 1-2-3-4 to the combination 1111. Restore the user code setting on S1, see
addressing table.
