4
1.
4.
2.
3.
5.
6.
9.
7.
8.
Art. 6751W
• Mini series door entry phone with full-duplex audio. With 5 touch sensitive buttons for audio key, lock release, actuator,
switchboard call and Privacy functions, and door status indicator LED. Floor door call management as standard.
• For use in SimpleBus2 audio systems with power supply unit art. 1210.

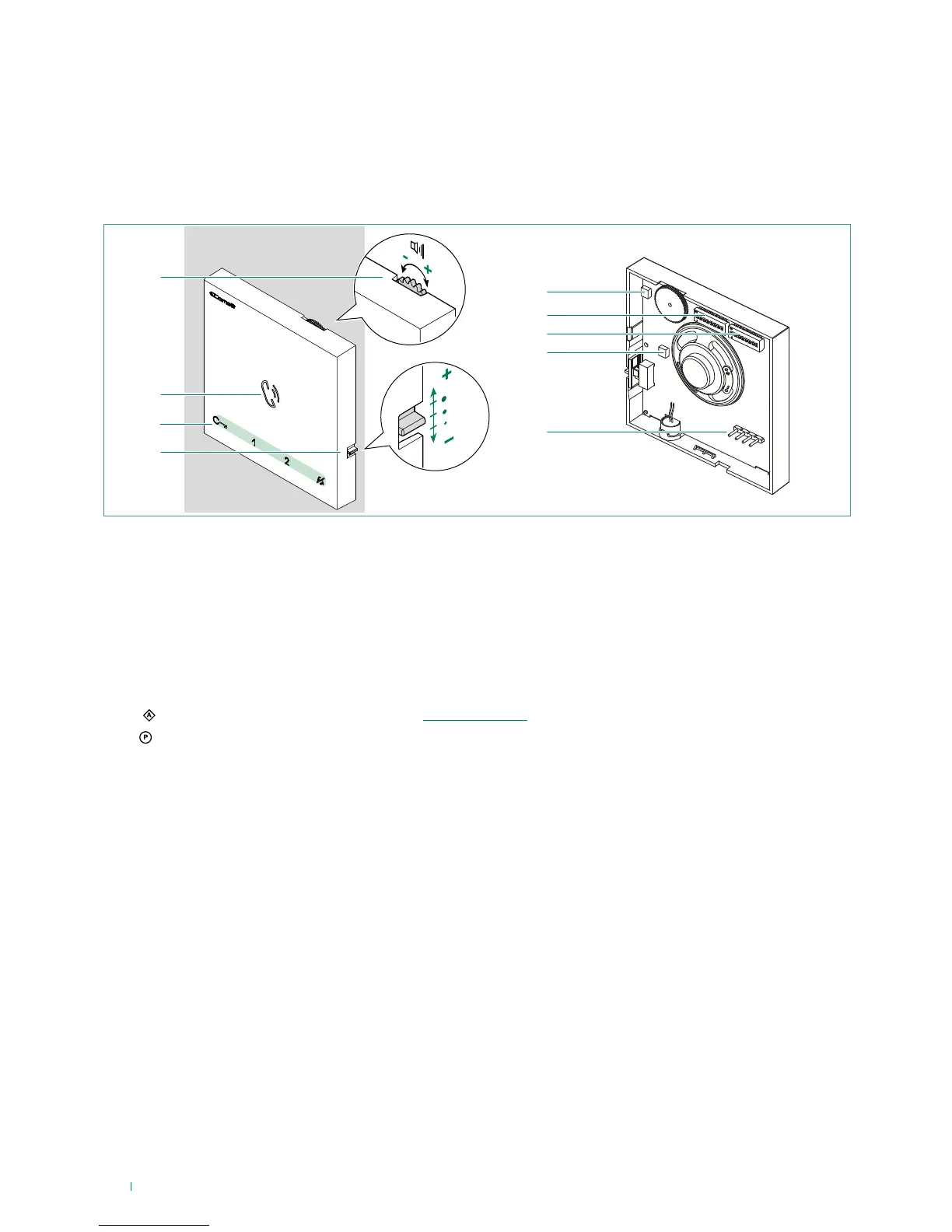

1. Loudspeaker volume control
f turn clockwise to increase the value
2. Speaker and audio activation button
3. Touch-sensitive buttons
4. Call volume adjustment (high - medium - low)
5. Trimmer - Factory setting DO NOT CHANGE!
6. S1
Microswitches for setting the user code (see addressing table)
7. S2
Microswitches for programming keys and functions
DIP 1-2-3-4 for button function programming
DIP 5-6 access to programming
DIP 7-8 not utilised
8. Trimmer - Factory setting DO NOT CHANGE!
9. Pin for securing terminal block
Terminal block for system connection
LL Bus line connection terminals
CFP1 CFP2 Floor door call input
