3
• Mini series handsfree door entry phone with full-duplex audio and integrated magnetic induction audio amplification system.
With 5 touch sensitive buttons for audio key, lock release, actuator, switchboard call and Privacy functions, and door status
indicator LED. Floor door call management as standard. Equipped with branch terminal art. 1214/2C.
• For use in SimpleBusTop audio/video systems with mixer art. 4888C, Building Kit systems with power supply unit
art.1210 or Audio/Video Kits with power supply unit art. 1209.
1.
4.
2.
3.
5.
6.
9.
7.
8.

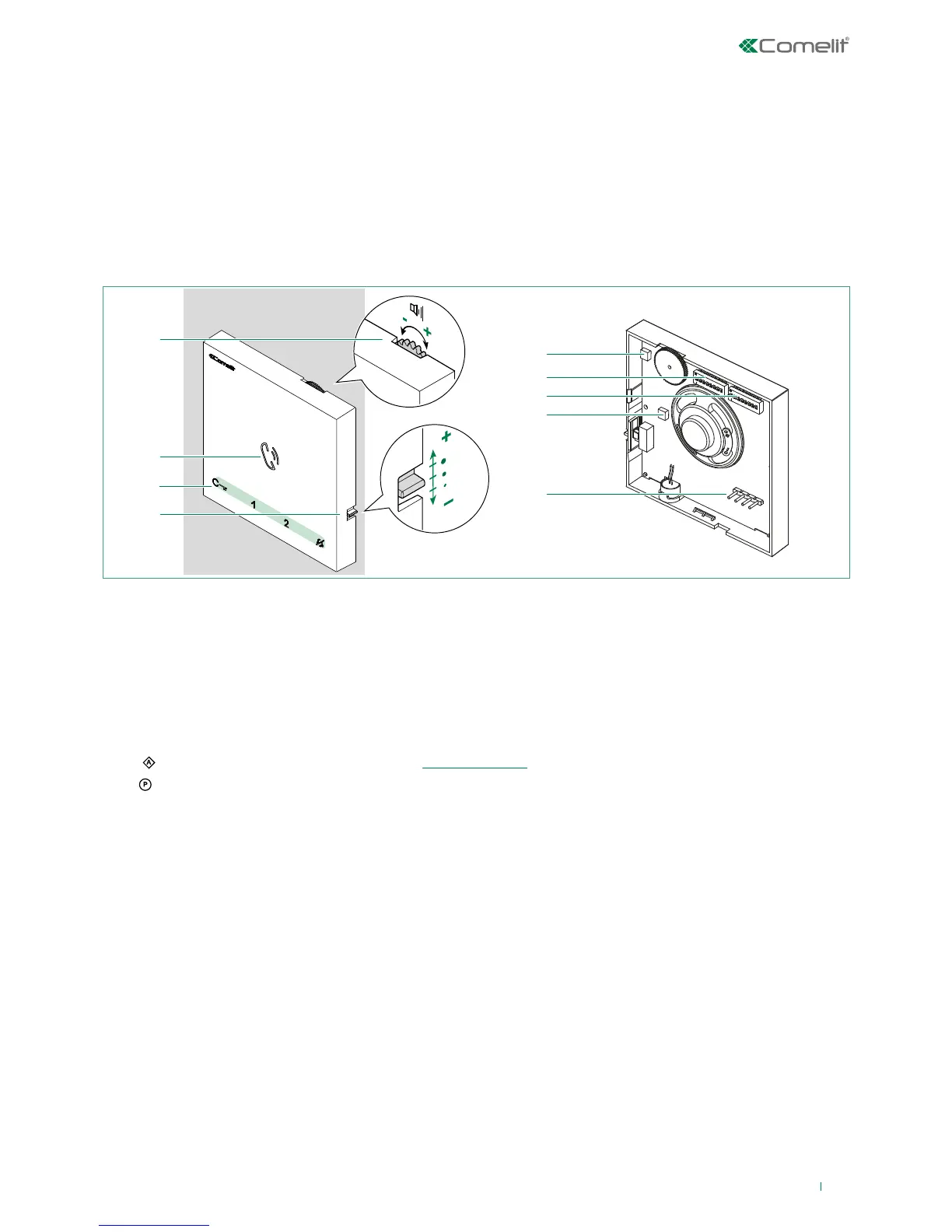

Art. 6750W
Description
1. Loudspeaker volume control
f turn clockwise to increase the value
2. Speaker and audio activation button
3. Touch-sensitive buttons
4. Call volume adjustment (high - medium - low)
5. Trimmer - Factory setting DO NOT CHANGE!
6. S1
Microswitches for setting the user code (see addressing table)
7. S2
Microswitches for programming keys and functions
DIP 1-2-3-4 for button function programming
DIP 5-6 access to programming
DIP 7-8 not utilised
8. Trimmer - Factory setting DO NOT CHANGE!
9. Pin for securing terminal block
Terminal block for system connection
LL Bus line connection terminals
CFP1 CFP2 Floor door call input
