COMEM eSDB10 - Appendix A - Options

11
Appendix A - Options

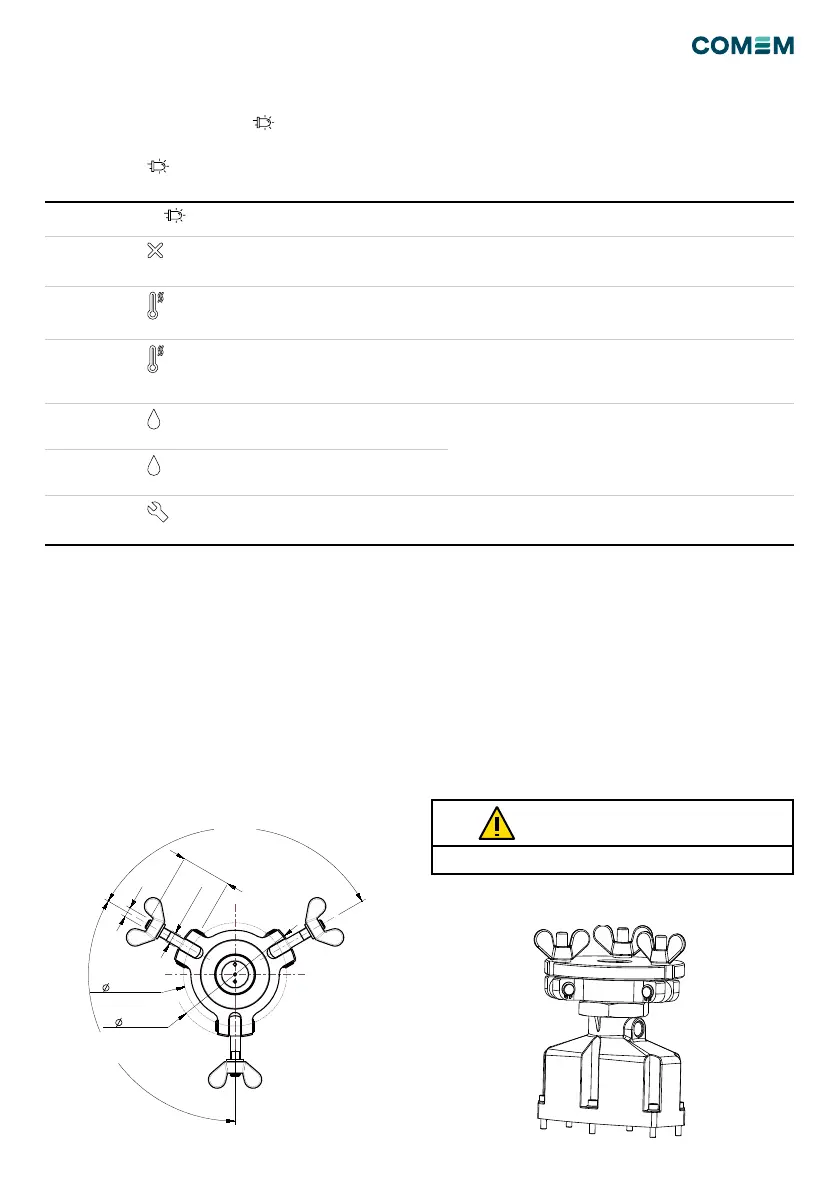

Flange DIN 45962 connection
The minimum thickness flange has to be 15 mm.
CAUTION
The rotation range shall be completely covered adjusting
the position of eSDB and xing the locknut.
Figure 13 Figure 14
Fault monitoring
The device has a self-monitoring function to detect inter-
nal faults, which are displayed by
and failure contacts.
The following table lists the individual faults.
Fault
Indication
Error-relay
(Standard
conguration)
Error-relay
(Special
conguration)
Note
Failure of the
supply voltage
All
off
POWER FAILURE:
terminal 22-24-21
POWER FAILURE:
terminal 22-24-21
Check if the supply voltage is connected correctly
Electronic control
defective
Red - Fixed
POWER FAILURE:
terminal 22-24-21
POWER FAILURE:
terminal 22-24-21
Try to switch off and switch on the power supply. Reset the
device following instructions in Appendix C.
If the error remains, please contact us.
Heater 1
defective
Red - Fixed
SYSTEM FAILURE:
terminal 12-14-11
POWER FAILURE:
terminal 22-24-21
Reset the device following instructions in Appendix C.
If the error remains, please contact us.
Heater 2
defective
Red - Blinking
SYSTEM FAILURE:
terminal 12-14-11
POWER FAILURE:
terminal 22-24-21
Reset the device following instructions in Appendix C.
If the error remains, the dehydrating breather continues to work
because the main tank is not damage. In this condition, the
device may work for a long time. Please contact us to replace it.
WEIGHING CELL
defect
Red - Fixed
SYSTEM FAILURE:
terminal 12-14-11
POWER FAILURE:
terminal 22-24-21
Reset the device following instructions in Appendix C. If error
remains it means that the weighing cell is damaged. Control of
the weight is no longer possible, but the device works because
of the backup time control. If the error remains the dehydrating
breather should be replaced. Please contact us.
LOAD CELL
outside range
Red - Blinking
SYSTEM FAILURE:
terminal 12-14-11
POWER FAILURE:
terminal 22-24-21
EV Fail
defect
Red - Fixed
SYSTEM FAILURE:
terminal 12-14-11
POWER FAILURE:
terminal 22-24-21
Reset the device following instructions in Appendix C. If error
remains it means that the solenoid valve is damaged, and the
dehydrating breather should be replaced. Please contact us.
Table 5
120°
120°
150 (5.9")
15 (0.59")
M12
3x60 (2.36")
124 (4.88")
