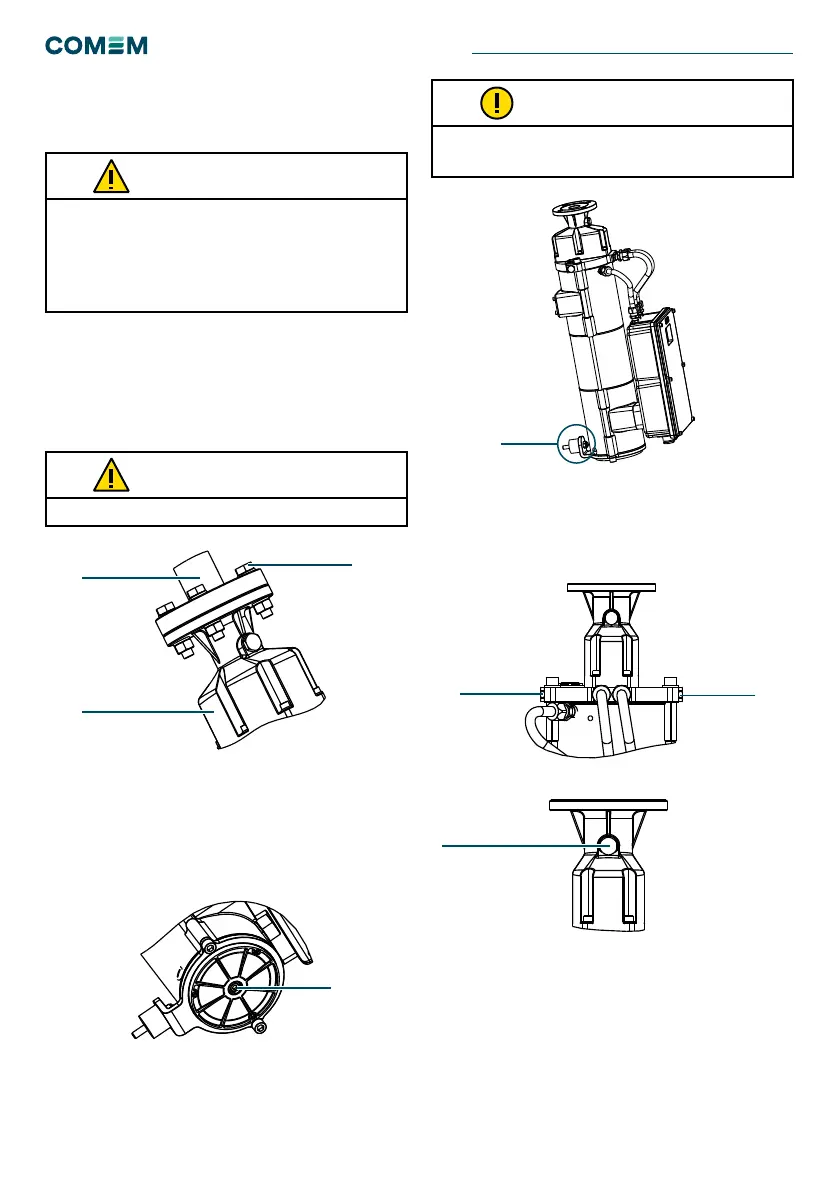

COMEM eSDB10 - Installation

50
Installation
Les exigences en matière d'utilisation et d'installation décrites
dans le présent manuel doivent être rigoureusement suivies.
Autrement, l'appareil peut s'abîmer ou un dysfonctionnement
peut se produire. L'unité doit être montée stable et droite. L'unité
et la tuyauterie doivent être installées de façon à ce que l'huile
ne puisse pas entrer dans le reniard. Ne pas installer dans une
armoire fermée; une ventilation adéquate est nécessaire.
PRUDENCE
Figure 5
Placer le joint d'étanchéité entre les deux brides.
PRUDENCE
eSDB10
Première étape: Retirez le ruban ou le capuchon en
plastique des zones d'entrée et de sortie d'air.
Fixez la bride supérieure (Fig. 4/A) sur la bride du tuyau
provenant du conservateur (Fig. 4/B) à l'aide de quatre vis
M12 (Fig.4/C).
Deuxième étape: Vériez le niveau supérieur (Fig. 16/17/
18); la bulle interne doit se trouver à l'intérieur de la plus
petite bague noire.
Troisième étape: dévissez la vis inférieure dans la partie
inférieure du dispositif (Fig. 5/A) jusqu'à la n de la plage
de fonctionnement des vis.
Quatrième étape: dévissez le bouchon sur l'eSDB10.
Selon la position du reniard d'air principal (eSDB15,
eSDB30), dévissez le bouchon droit (Fig. 7/A) ou le
bouchon gauche (Fig. 7/B). Dévissez le bouchon du
reniard d'air principal (Fig. 8/A).
Figure 6
Figure 4
Le fabricant du transformateur peut choisir d'appliquer le kit
anti-vibration fourni avec l'eSDB en fonction de la robustesse du
support (Fig. 6/A).
REMARQUE
