COMEM eSDB10 - Installation

28

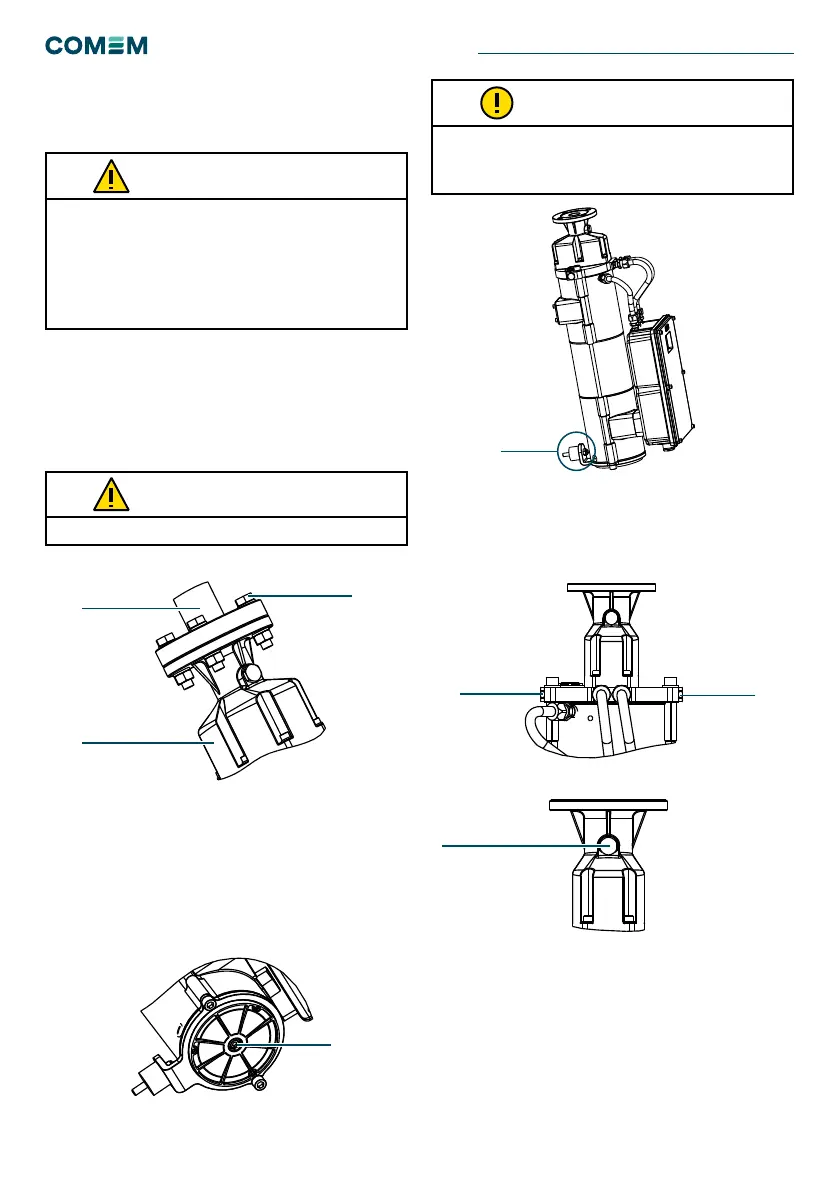

Installation
Die in diesem Handbuch enthaltenen Betriebs- und
Installationsvoraussetzungen sind streng zu beachten.
Andernfalls kann es zu Schäden oder Funktionsstörungen am
Gerät kommen. Die Anlage muss nivelliert und aufrecht montiert
werden. Die Anlage und die Leitungen müssen so installiert
werden, dass kein Öl in den Entlüfter gelangen kann. Nicht in
einem geschlossenen Schrank installieren, da ausreichende
Belüftung erforderlich ist.
VORSICHT
Abbildung 5
Die Flachdichtung zwischen die beiden Flansche legen.
VORSICHT
eSDB10
1. Schritt: Das Band/die Kunststoffkappe von den
Lufteintritts- und -austrittsöffnungen abnehmen.
Den oberen Flansch (Abb. 4A) mit vier M12-Schrauben
(Abb. 4C) am Flansch der vom Konservator kommenden
Leitung (Abb. 4B) befestigen.
2. Schritt: Das obere Level (Abb. 16/17/18) überprüfen,
die Blase im Inneren muss sich innerhalb des kleinsten
schwarzen Rings benden.
3. Schritt: Die Schraube an der Unterseite aus dem unteren
Teil des Geräts (Abb. 5/A) herausschrauben, bis das Ende
des Gewindes erreicht ist.
Abbildung 4
Der Hersteller des Transformators kann entscheiden, ob er den
Schwingungsdämpfersatz, der mit dem eSDB mitgeliefert wird,
montieren möchte. Die Entscheidung hängt von der Festigkeit
der Halterung ab (Abb. 6/A).
HINWEIS
Abbildung 6
4. Schritt: Den Stopfen vom eSDB10 abschrauben.
Abhängig von der Anordnung des Hauptentfeuchters
(eSDB15, eSDB30) den rechten (Abb. 7/A) oder den
linken Stopfen (Abb. 7/B) abschrauben. Den Stopfen vom
Hauptentfeuchter abschrauben (Abb. 8/A).
Abbildung 7
Abbildung 8
Die beiden Anschlüsse mit einer Leitung verbinden
(Abb.9). Anschlussgewinde: M16x1,5
