COMEM eSDB10 - Installazione

17
Installazione
Le prescrizioni indicate in questo manuale devono essere rigo-
rosamente rispettate pena il rischio di guastare l'acces-sorio.
L’unità deve essere montata in verticale, livellata.
Le tubazioni fra essiccatore e trasformatore devono impedire
l’entrata di olio nell’unità.
Non installare in spazi connati, l’unità deve essere installata in
spazi ventilati.
ATTENZIONE
Figura 5
Figura 9
Posizionare la guarnizione piana tra le due ange.
ATTENZIONE
eSDB10

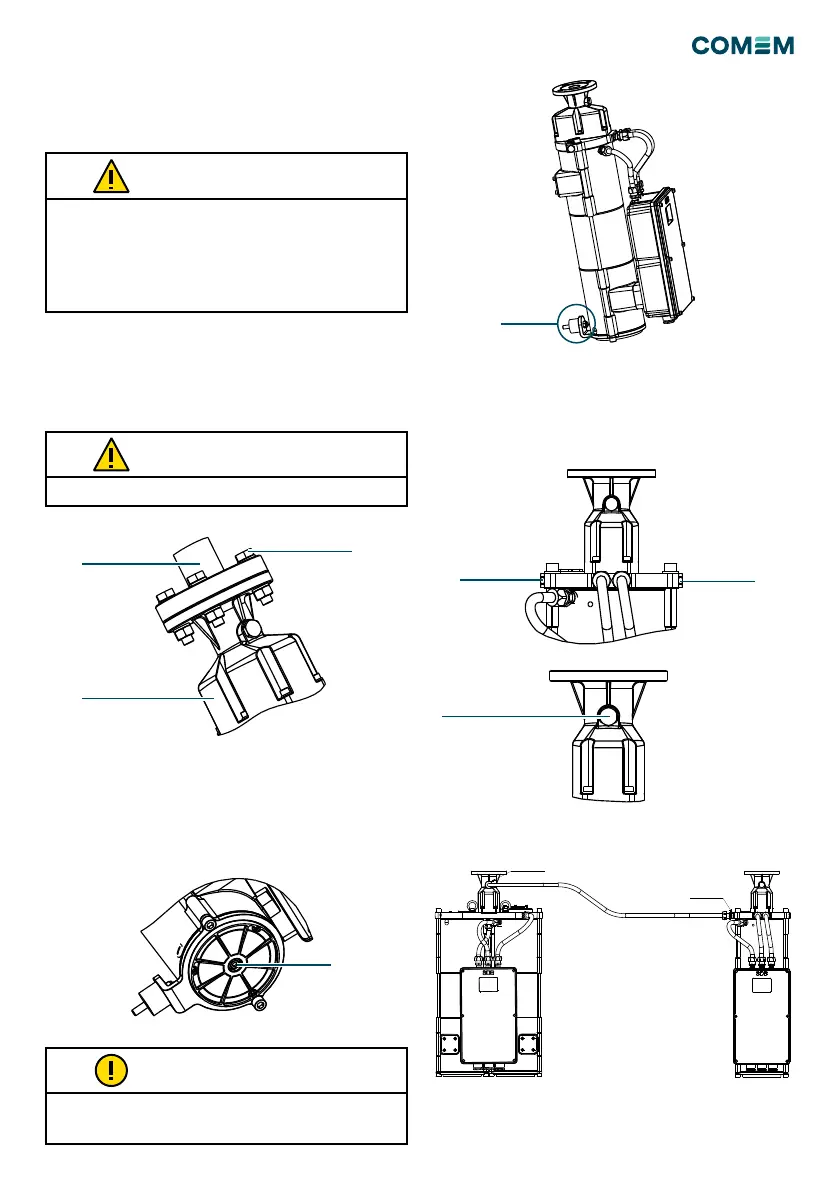

Primo passaggio: Rimuovere nastro/tappo di plastica dai
punti di ingresso/uscita dell'aria. Fissare la angia superi-
ore (Fig.4/A) nella angia della tubazione del conservatore
(Fig.4/B) utilizzando N°4 viti M12 (Fig.4/C).
Secondo passaggio: Vericare che la bolla (Fig.16/17/ 18)
si trovi all'interno del cerchio nero.
Terzo passaggio: svitare la vite presente nella parte
inferiore dell'essiccatore (Fig.5/A) no a ne corsa utile
della vite.
Quarto passaggio: svitare il tappo dall'eSDB-10. A
seconda della posizione dell'essicatore principale (eSDB-
14C/15/30) rimuovere il tappo di destra (Fig.7/A) o di
sinistra (Fig.7/B).
Svitare il tappo anche sull'essicatore principale (Fig.8/A).
Collegare il tubo tra i due eSDB come mostrato in Figura 9.
Il letto del foro è M16x1.5
Figure 6
Figura 7
Figura 8
Figura 4
