Instalación
Deben respetarse estrictamente los requisitos de
funcionamiento e instalación descritos en este manual.
Si no es así, puede dañarse el dispositivo o puede producirse
un mal funcionamiento. La unidad debe montarse nivelada y
en posición vertical. La unidad y los tubos deben montarse de
manera que el aceite no pueda entrar en el respirador.
No instalar en un armario cerrado: es necesaria una ventilación
adecuada.
PRECAUCIÓN
Figura 5
Ponga la junta plana entre las dos bridas.
PRECAUCIÓN
eSDB10

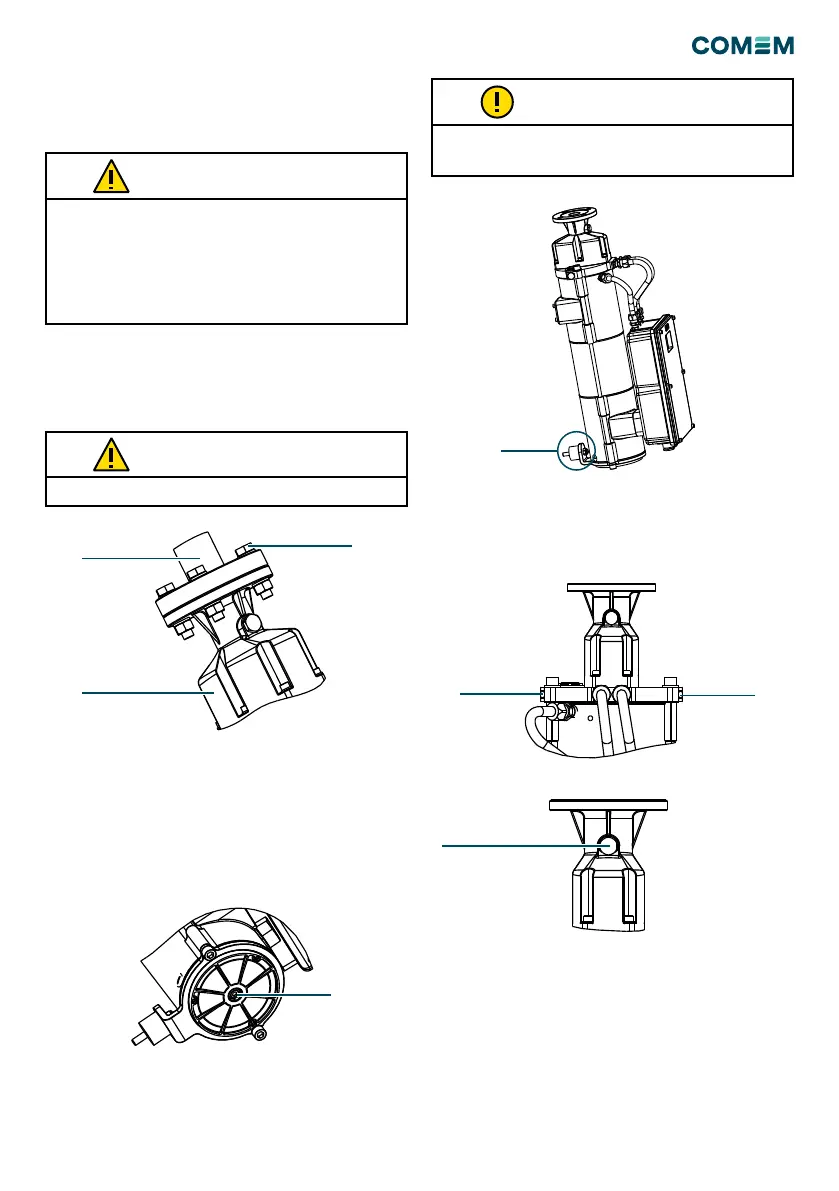

Primer paso: Retire la cinta/tapa de plástico de las zonas
de aire de entrada/salida. Fije la brida superior (Fig. 4/A)
en la brida del tubo desde el conservador (Fig. 4/B) con
cuatro tornillos M12 (Fig. 4/C).
Segundo paso: Compruebe el nivel superior (Fig.16/17/
18), la burbuja interna debe estar dentro del anillo negro
más pequeño.
Tercer paso: desenrosque el tornillo inferior en la parte
inferior del aparato (Fig. 5/A) hasta el nal del rango de
trabajo de los tornillos.
Cuarto paso: Desenrosque el tapón del eSDB10.
Dependiendo de la posición del respirador principal
(eSDB15, eSDB30), desenrosque el tapón derecho (Fig.
7/A) o el izquierdo (g. 7/B).
Desenrosque el tapón del respirador principal (Fig. 8/A).
Conecte un tubo entre los dos tapones (Fig. 9).
La rosca del tapón es M16x1,5.
Figura 6
Figura 7
Figura 8
Figura 4
El fabricante del transformador puede elegir si aplica el kit
antivibración que se suministra con el eSDB en función de la
robustez del soporte (g. 6/A).
NOTA
D
C
B
A
654
3
21 7 8
E
F
A
B
C
D
E
F
1 2 3 4 5 6 7 8
