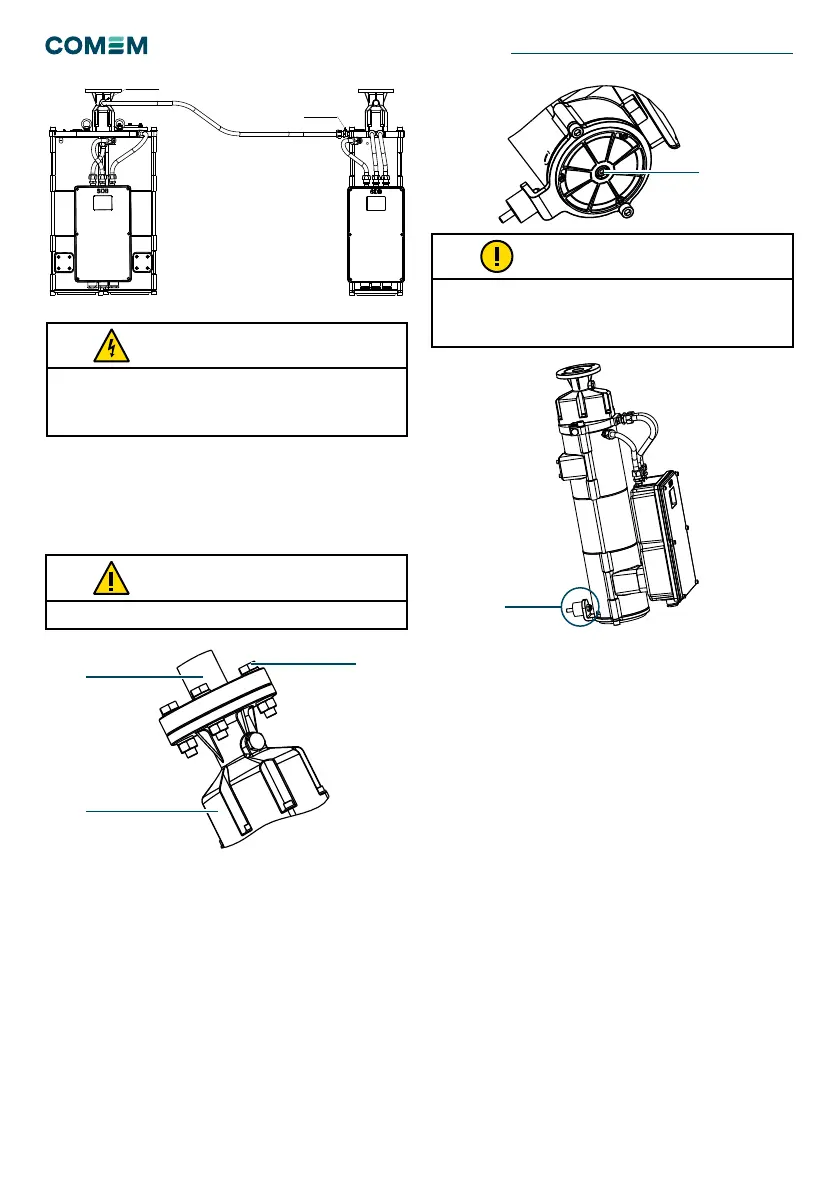

DESECADOR AUTOREGENERANTE eSDB 10/15/30
Figura 11
Ponga la junta plana entre las dos bridas.
PRECAUCIÓN
eSDB-15/30
Primer paso: Retire la cinta/tapa de plástico de las zonas
de aire de entrada/salida. Fije la brida superior (Fig. 10/A)
en la brida del tubo desde el conservador (Fig. 10/B) con
cuatro tornillos M12 (Fig. 10/C).
Segundo paso: Compruebe el nivel superior (Fig.16/17/
18), la burbuja interna debe estar dentro del anillo negro
más pequeño.
Tercer paso: desenrosque el tornillo inferior en la parte
inferior del dispositivo (Fig. 11/A) hasta el nal del rango
de trabajo de los tornillos.
Figura 12
Figura 10
El fabricante del transformador puede elegir si aplica el kit
antivibración que se suministra con el eSDB en función de la
robustez del soporte (g. 12/A). Para las conexiones eléctricas
COMEM aconseja utilizar cables armados.
NOTA
Figura 9
Entre el tapón y la carcasa debe colocarse una junta para evitar
cualquier fuga.
El sistema (tubo y tapón) debe estar montado para garantizar la
estanqueidad.
ADVERTENCIA
