COMEM eSDB10 - Page 29

29

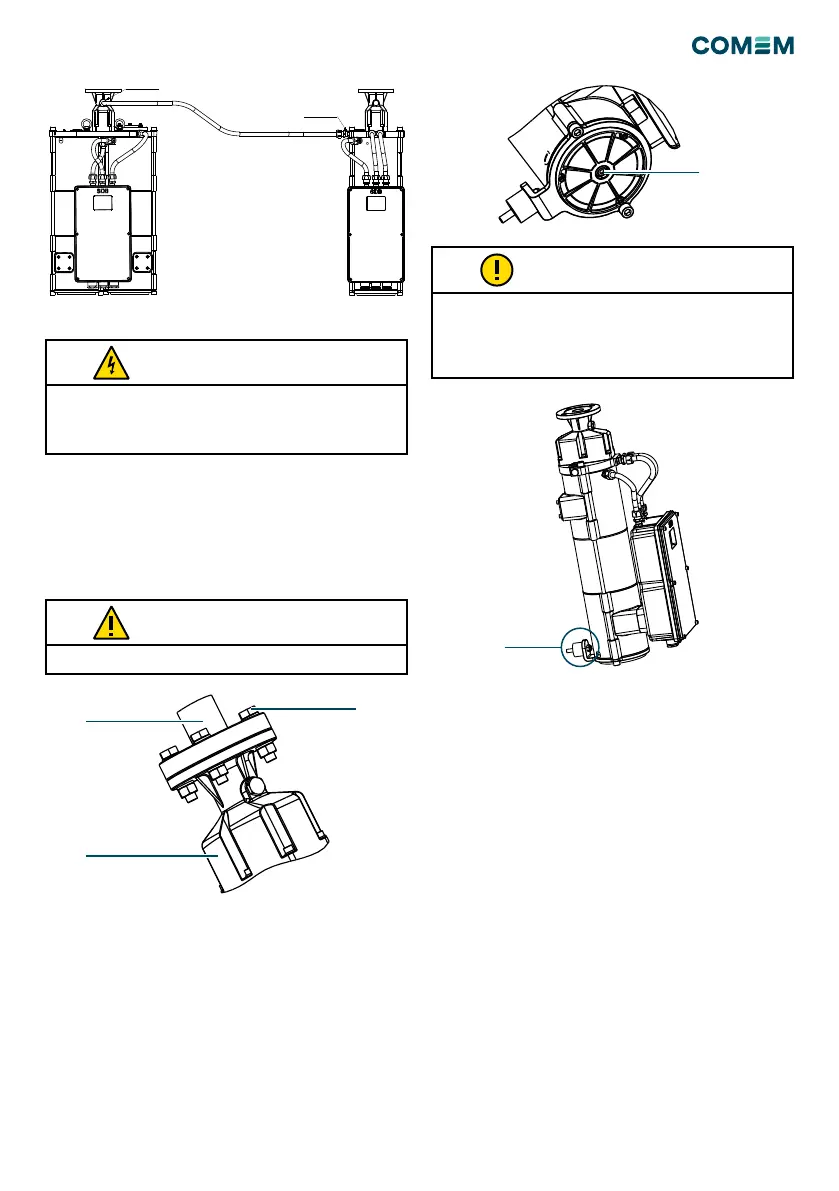

Abbildung 11
Die Flachdichtung zwischen die beiden Flansche legen.
VORSICHT
eSDB-15/30
1. Schritt: Das Band/die Kunststoffkappe von den
Lufteintritts- und -austrittsöffnungen abnehmen.
Den oberen Flansch (Abb. 10A) mit vier M12-Schrauben
(Abb. 10C) am Flansch der vom Konservator kommenden
Leitung (Abb. 10/B) befestigen.
2. Schritt: Das obere Level (Abb. 16/17/18) überprüfen,
die Blase im Inneren muss sich innerhalb des kleinsten
schwarzen Rings benden.
3. Schritt: Die Schraube an der Unterseite aus dem unteren
Teil des Geräts (Abb. 11/A) herausschrauben, bis das
Ende des Gewindes erreicht ist.
Abbildung 12
Abbildung 10
Der Hersteller des Transformators kann entscheiden, ob er den
Schwingungsdämpfersatz, der mit dem eSDB mitgeliefert wird,
montieren möchte. Die Entscheidung hängt von der Festigkeit
der Halterung ab (Abb. 6/A). COMEM empehlt, für die
elektrischen Anschlüsse geschirmte Kabel zu verwenden.
HINWEIS
Zwischen den Anschluss und das Gehäuse muss eine
OR-Dichtung gelegt werden, damit die Verbindung dicht ist.
Das System (Leitung und Anschluss) muss so montiert werden,
dass seine Dichtheit gewährleistet ist.
WARNUNG
Abbildung 9
D
C
B
A
654
3
21 7 8
E
F
A
B
C
D
E
F
1 2 3 4 5 6 7 8
