COMEM eSDB10 - Page 7

7

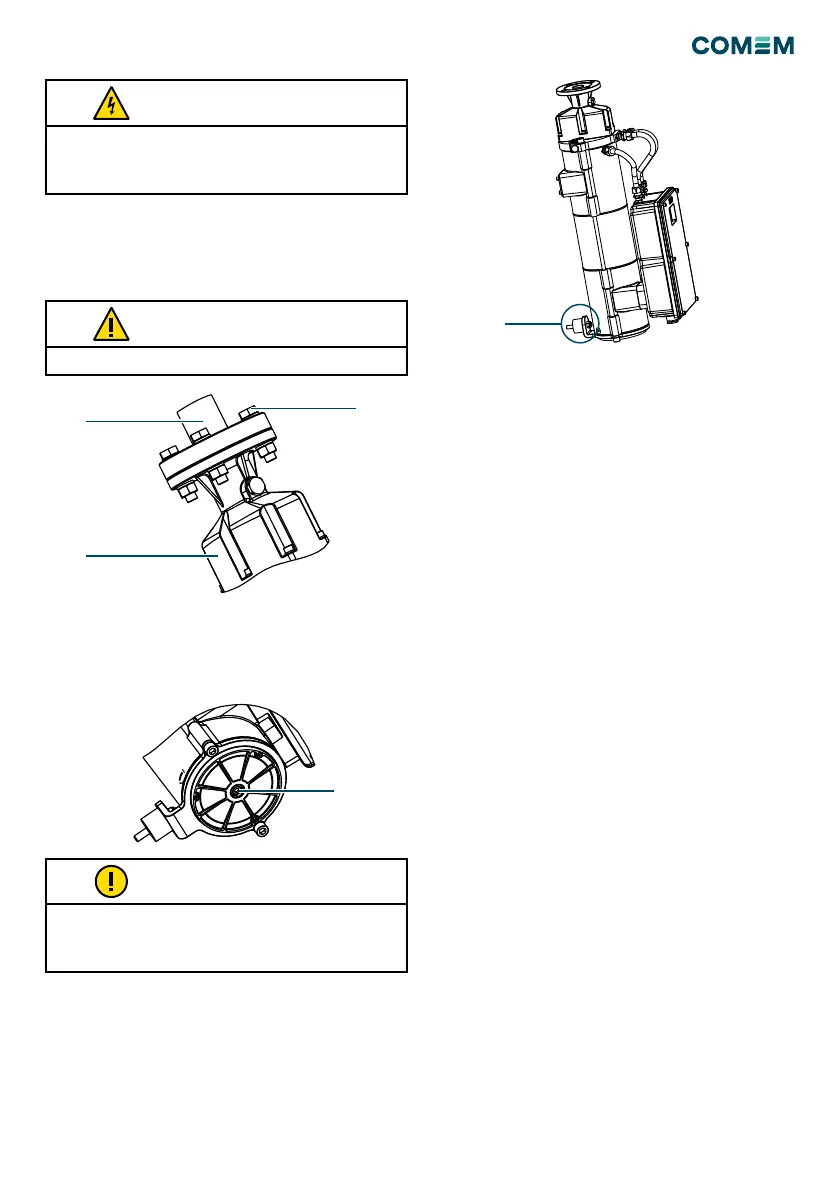

Figure 11
Put the plane gasket between the two anges.
CAUTION
eSDB-15/30
First step: Remove the tape/plastic cap from the entry/
exit air zones. Fix the upper ange (Fig.10/A) on the ange
of the pipe from the conservator
(Fig.10/B) with tour M12 screws (Fig.10/C).
Second step: Check the upper level (Fig.16/17/18), the
internal bubble must be inside the smallest black ring.
Third step: unscrew the bottom screw in the lower part of
the device (Fig.11/A) until the end of the screws working
range.
Figure 12
Figure 10
Between the plug and the housing must be positioned an or
gasket to avoid any leakage.
The system (pipe and plug) must be assembled to guarantee
the sealing.
WARNING
The transformer manufacturer can choose whether to apply the
anti-vibration kit which is supplied with the eSDB depending on the
sturdiness of the support (fig.12/A). For the electrical connections
COMEM advises to use armed cables.
NOTE
