COMEM MB 103 - Use

14

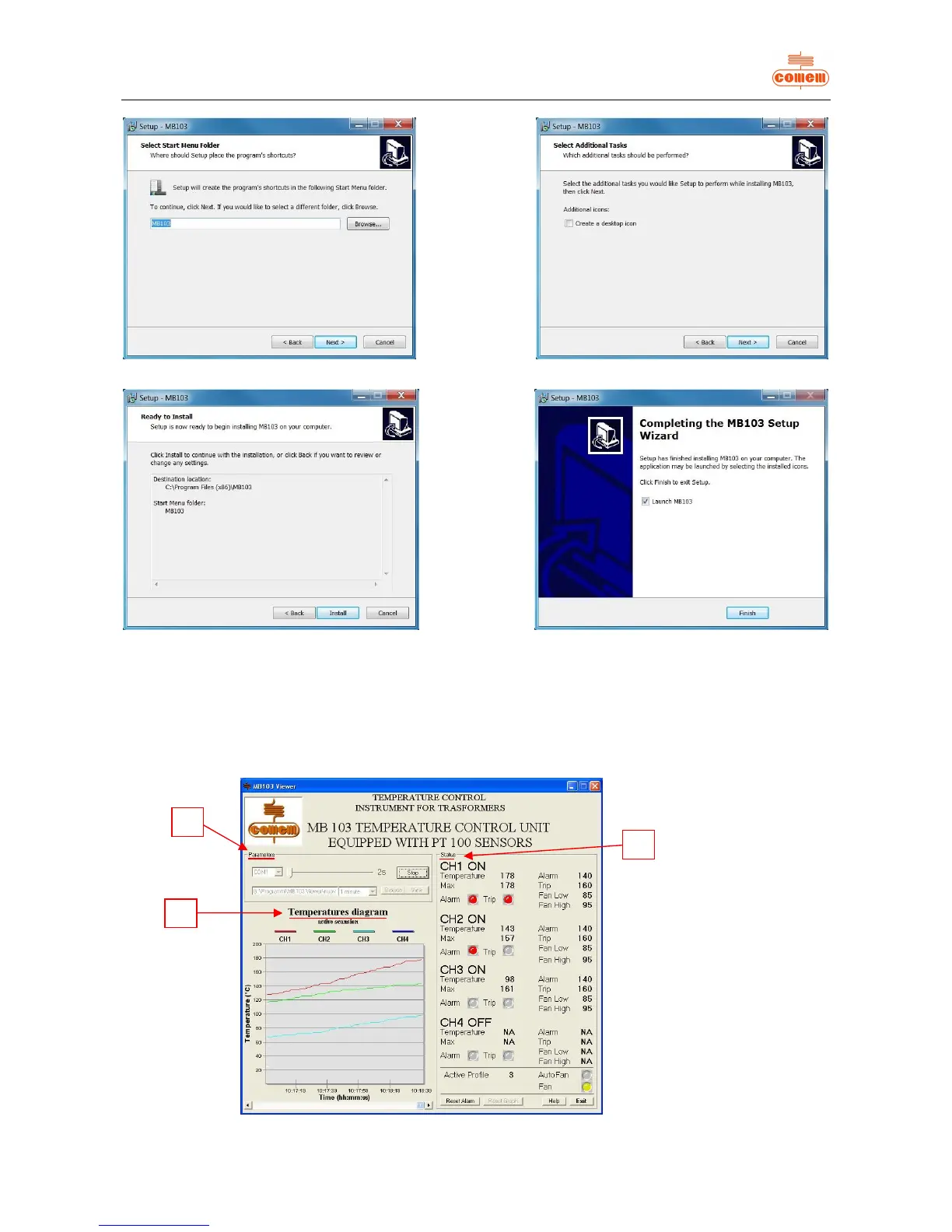

Fig. 5 Fig. 6
Fig. 7 Fig. 8
The installation procedure has now terminated.
6.3 Use
Once the program has been installed, click on the start Menu: “Start – Programs – MB 103” to run the software.
the following page will appear:
Fig. 9
1
3
2
Click on “Next”.
(fig. 5) and (fig. 6)
Click on “Install”.
(fig. 7)
then on “Finish”.
(fig. 8)
The initial window (
fig. 9
) is divided into
3 parts:
1. Parameters
2. Status
3. Temperatures diagram
