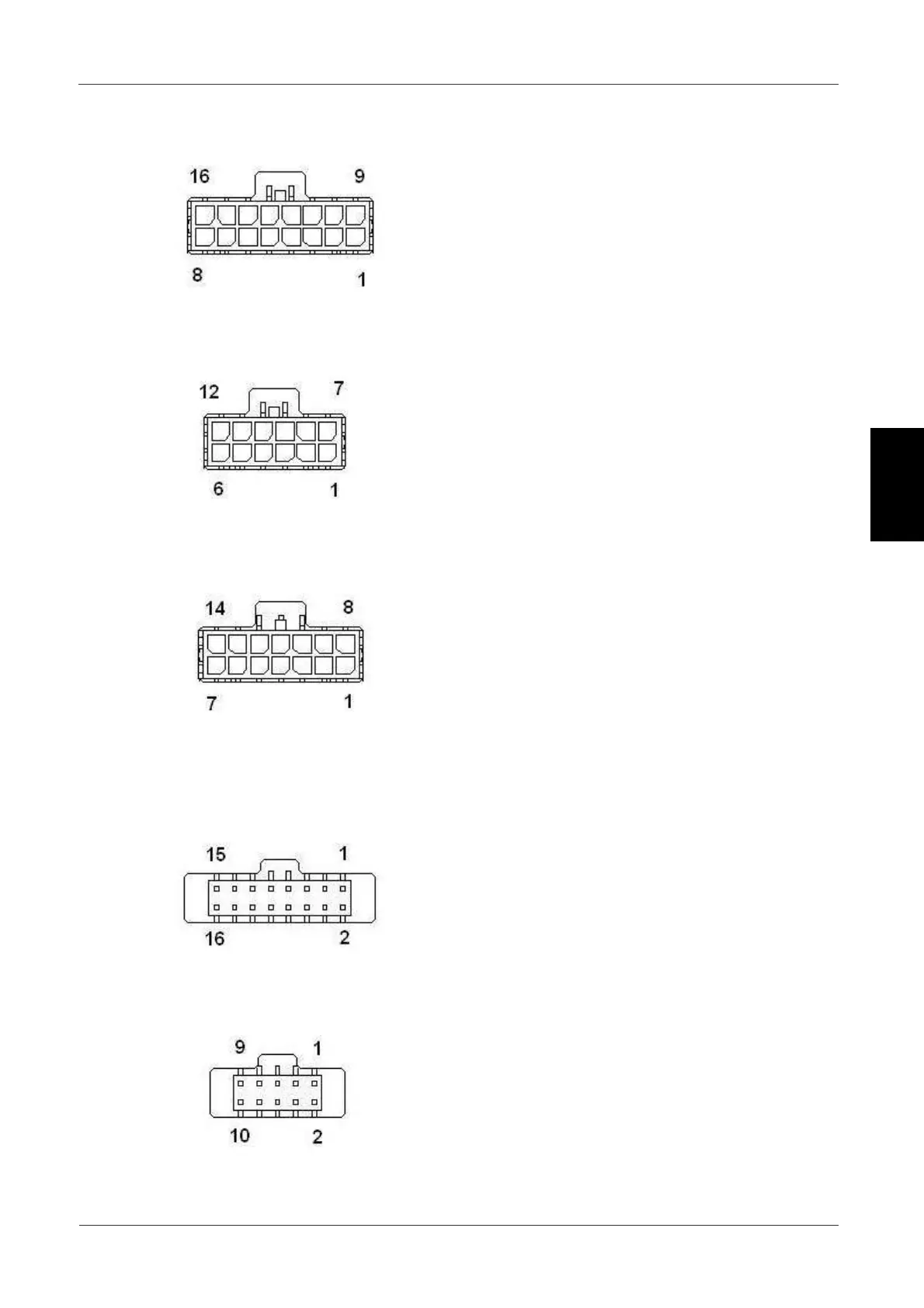

J1 = microfit 3mm 16 poles: Connection of VMC and payment devices power supply
1. TX1 MASTER
2. RX1 MASTER
3. TX1 SLAVE
4. RX1 SLAVE
5. GND1-E
6. GND1-K
7. TX2 MASTER
8. RX2 MASTER
9. VAC2
10. VAC1
11. VRAD
12. TX2 SLAVE
13. GND-SLAVE
14. GND
15. GND
16. RX2 SLAVE
J2 = microfit 3mm 12 poles: Connection RS232 – I2C, +5Vdc, +12Vdc
1. GND
2. GND
3. RX232_CONN
4. GND
5. GND
6. SCL_EXT
7. PROG_FLASH
8. CTS_ISP_CONN
9. TX232_CONN
10. +12 V
11. +5 V
12. SDA_EXT
J3 = microfit 3mm 14 poles: Connection of banknote reader 12Vdc 2.3A ± 10%
1
11
1
1. GND
2. GND
3. GND
4. GND
5. GND
6. RS485A_CONN
7. CAN_L_CONN
8. SEL_B
9. SEL_A
10. +5 V
11. +12 V COIN
12. CCTALK_CONN
13. RS485B_CONN
14. CAN_H_CONN
J4 = strip 2.54mm 16 poles: Connection of banknote reader 12Vdc for a maximum of
2.3A ± 10%
1. +12 V COIN
2. GND
3. NC
4. NC
5. NC
6. NC
7. BILL_BUSY
8. NC
9. BILL 1 INHIBIT
10. BILL 1 INHIBIT
11. BILL 1 INHIBIT
12. BILL 1 INHIBIT
13. BILL 3
14. BILL 4
15. BILL 1
16. BILL 2
J5 = strip 2.54mm 10poles: Connection of coin validator 12Vdc
1. GND
2. +12V COIN
3. COIN_5
4. COIN_6
5. COIN_IRQ
6. COIN INHIBIT
7. COIN_1
8. COIN_2
9. COIN_3
10. COIN_4
