World Key/World Key Lite/World Key Move - operating manual
36

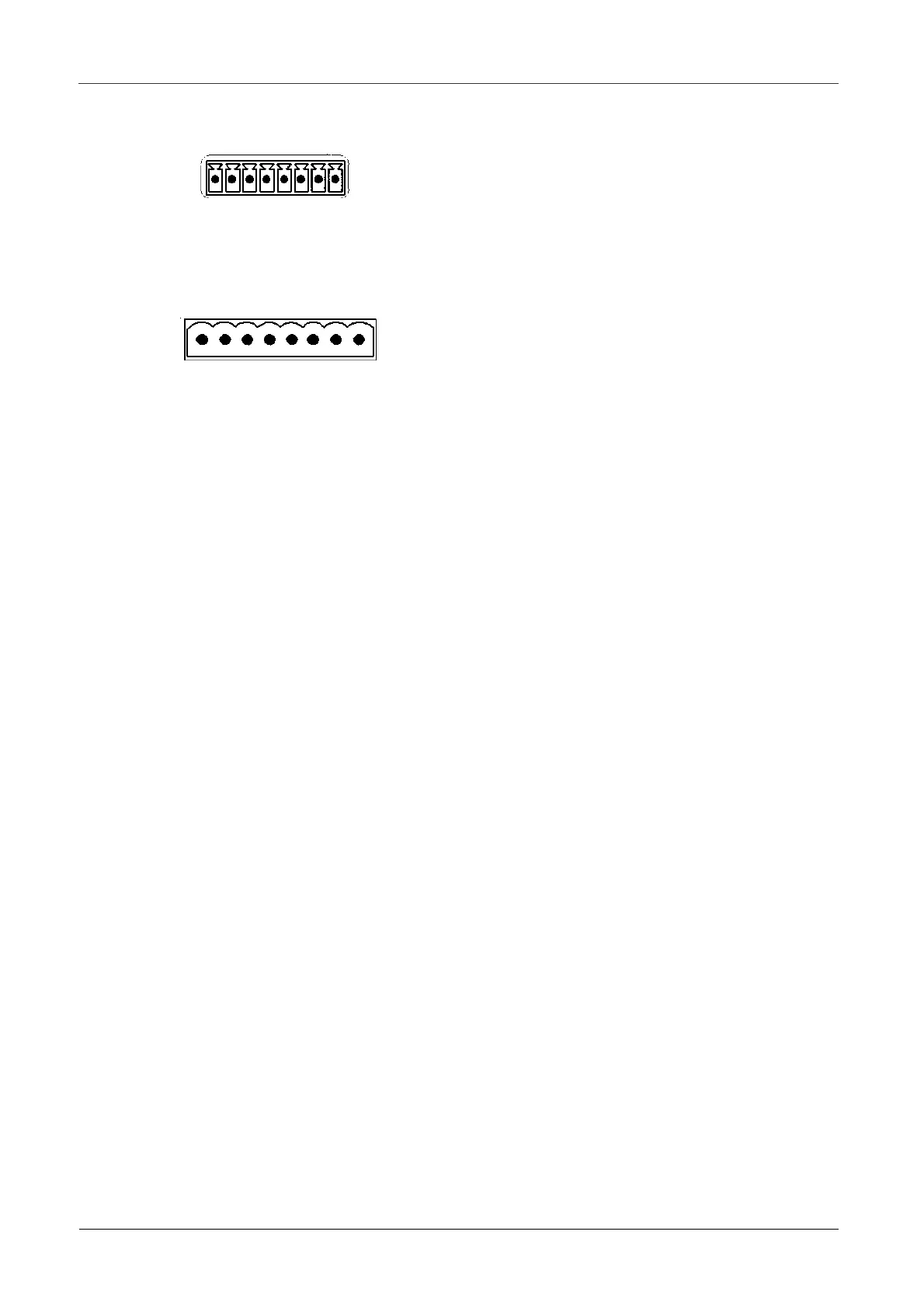

J9 = 4-input low voltage connector Vdc range: 8÷30 V Vac range: 8÷28 V
1. – START 1
2. + START 1
3. – RESET 1
4. + RESET 1
5. – START 2
6. + START 2
7. – RESET 2
8. + RESET 2
J9 = High voltage connector 2 relays 250 Vac / 6 A 1 input Vac range: 15÷230 Vac
1. NO 1
2. COM 1
3. NC 1
4. NO 2
5. COM 2
6. NC 2
7. IN 5 (230 VAC)
8. RETURN IN 5
1 2 3 4 5 6 7 8
1
2 3 4 5 6 7 8
2 3 4 5 6 7 8 2 3 4 5 6 7 8
2 3 4 5 6 7 8
IN OR AI
PIN 3-4
DI J9
}
