In standard validator configuration, RM5 can manage up to fifteen coin values, i.e. up to 59
different coins provided that these are re-addressed to the first 15 channels. When the coin is
introduced, the validator will signal in binary code on the first 4 channels the channel on which the
coin has been adjusted; at the same time the “data valid” signal will activate on channel 6; this one
will activate at every coin introduction.

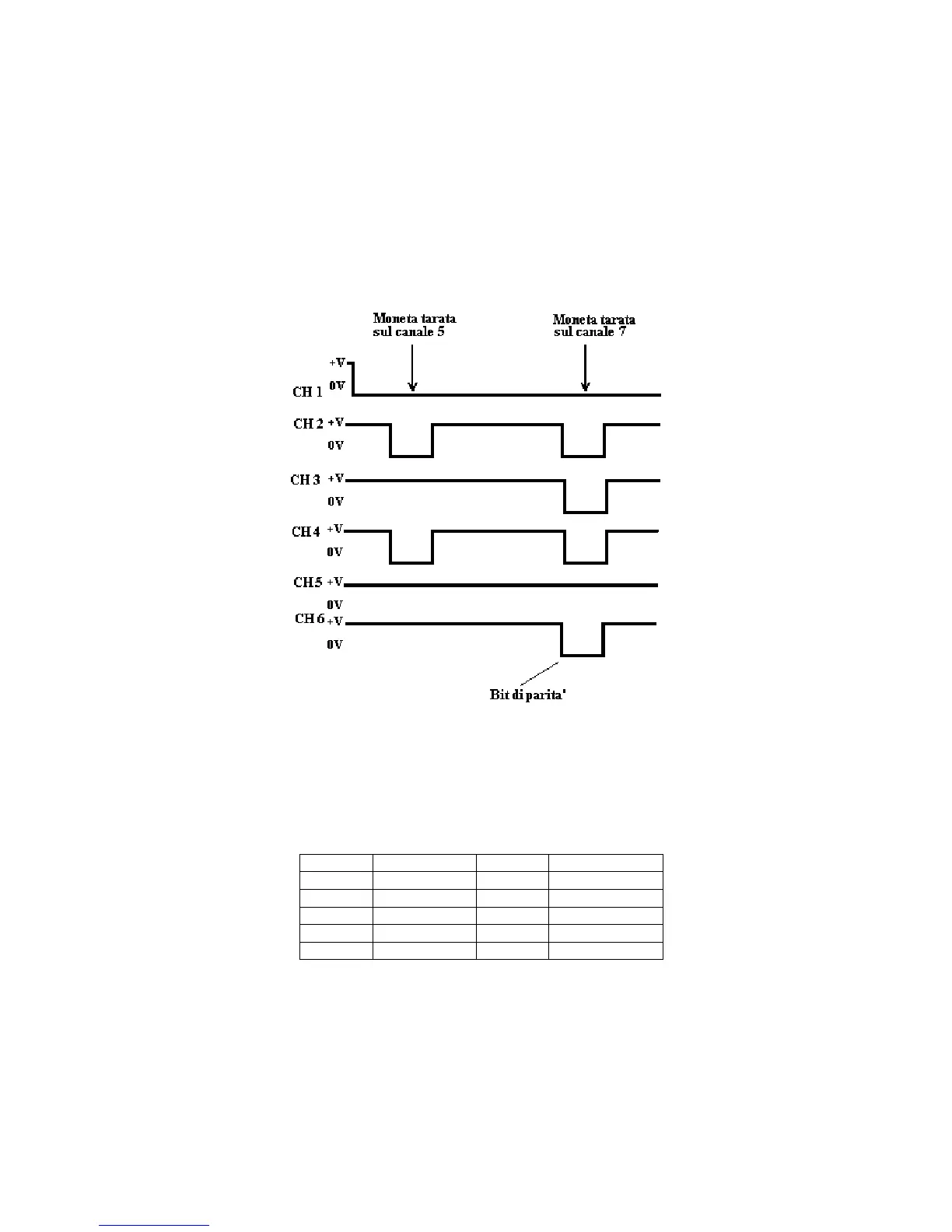

Output meaning:
Coin adjusted on channel 5 – Coin adjusted on channel 7- Parity bit
NOTE : In case of a binary validator capable of piloting a separator, the “data valid” signal
corresponding to channel 6 will be omitted.
PIN OUT OF RM5 X B0 VALIDATOR 10 PIN CONNECTOR
Pin No. Meaning Pin No. Meaning
1 Gnd 6 Inhibition
2 +12-24 Vdc 7 CH 1
3 N.U. 8 CH 2
4 Data Valid 9 CH 3
5 N.U. 10 CH 4
