Comestero rm5 - No communication:

COMESTERO GROUP M21/03.02
Rev.02
of 25/09/03
Page 33 of 34
Check continuity on Jumper JD5
Diameter:
Check conditions of the label inside the door.
Carry out door flex continuity.
Check with tester as Volt (diodes on board)
Check point Check point Volt Component
14 13 1,2 Volt D4
12 11 1,2 Volt D3
10 9 1,2 Volt D2
No communication :
Check voltage on C6 that must be approx. 1 Vdc.
Check HFU coil on door (see faulty coils).
Check voltage on JP1 ( red terminal) that must be 5 Vdc.
1
1
2
2
.
.
S
S
P
P
A
A
R
R
E
E
P
P
A
A
R
R
T
T
S
S

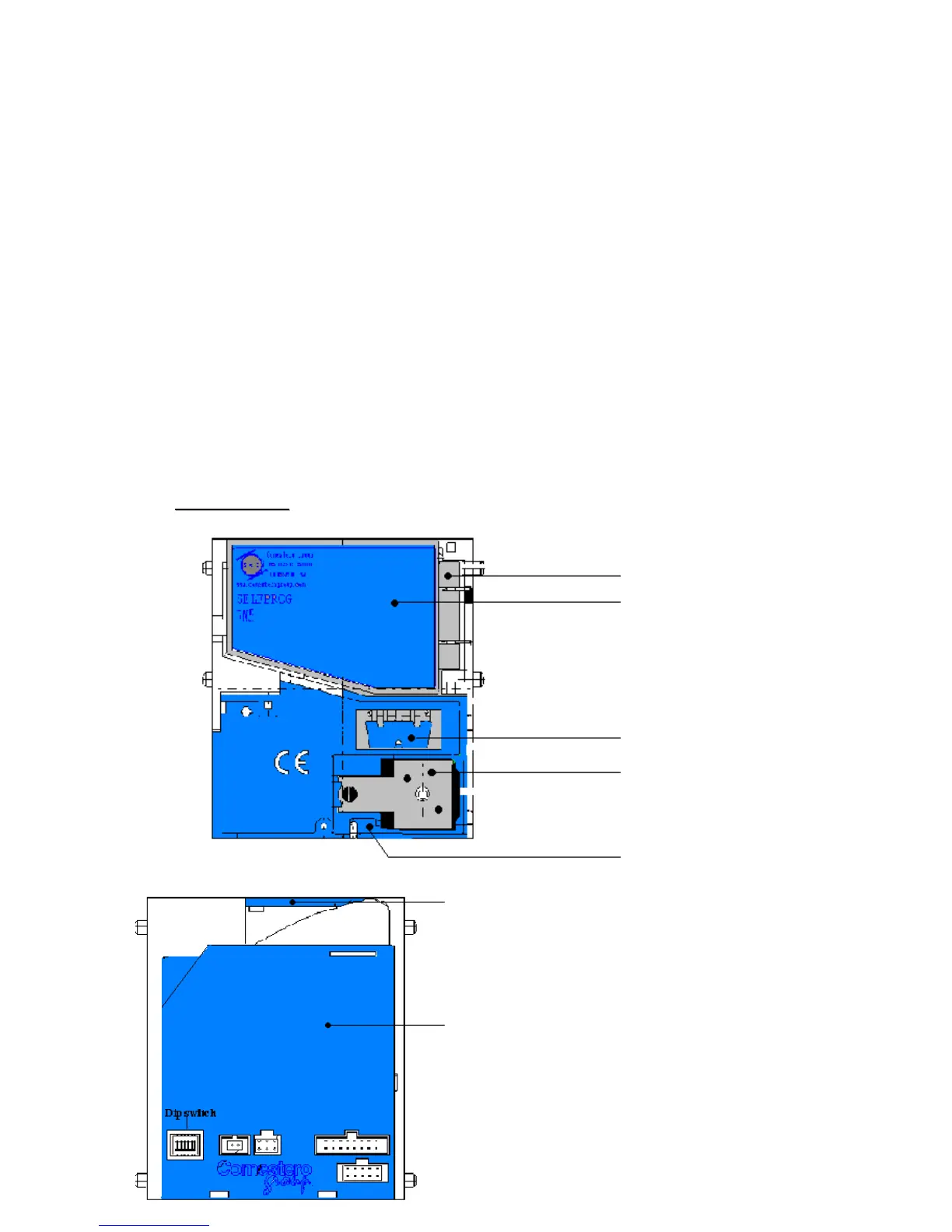

Door Assembly
(Flat+Coils +Label
+photodiodes )
Code PRM5-PORTELLO
Front lid
Code C25RM5-10360B2
Anti-reach lever
Code C25RM5-10365B3
Solenoid -Vending
Code:C/GE-3V
Solenoid- Games
Code: E/GE-4G
Coil support
Code Vending:
C25RM5-10369C7
Code Games:
C25RM5-10368B3
Opening Lever
Code:C25RM5-10363B3
Rear Lid
Code C25RM5-10359C
