Comestero rm5 - CONFIDA BINARY VALIDATOR CONFIGURATION (RM5 X BC)

COMESTERO GROUP M21/03.02
Rev.02
of 25/09/03
Page 21 of 34
8
8
.
.
6
6
C
C
O
O
N
N
F
F
I
I
D
D
A
A
B
B
I
I
N
N
A
A
R
R
Y
Y
V
V
A
A
L
L
I
I
D
D
A
A
T
T
O
O
R
R
C
C
O
O
N
N
F
F
I
I
G
G
U
U
R
R
A
A
T
T
I
I
O
O
N
N
(
(
R
R
M
M
5
5
X
X
B
B
C
C
)
)
In Confida binary validator configuration, RM5 validator can manage up to fifteen different coin
values, i.e. up to 59 different coins provided that these are re-addressed to the first 15 channels.
Channel 1 is used to indicate the type of communication adopted to the machine: if disabled (open
collector) the validator uses a standard mode, if enabled (Gnd) the validator uses the confida
combinatory mode.
Channel 6 is used as even parity display to increase safety on the value of the combination
transmitted to the validator; thanks to this , always more than one line is activated for every
communication thus making easier the identification of any illegal combination due to causes of
different nature.

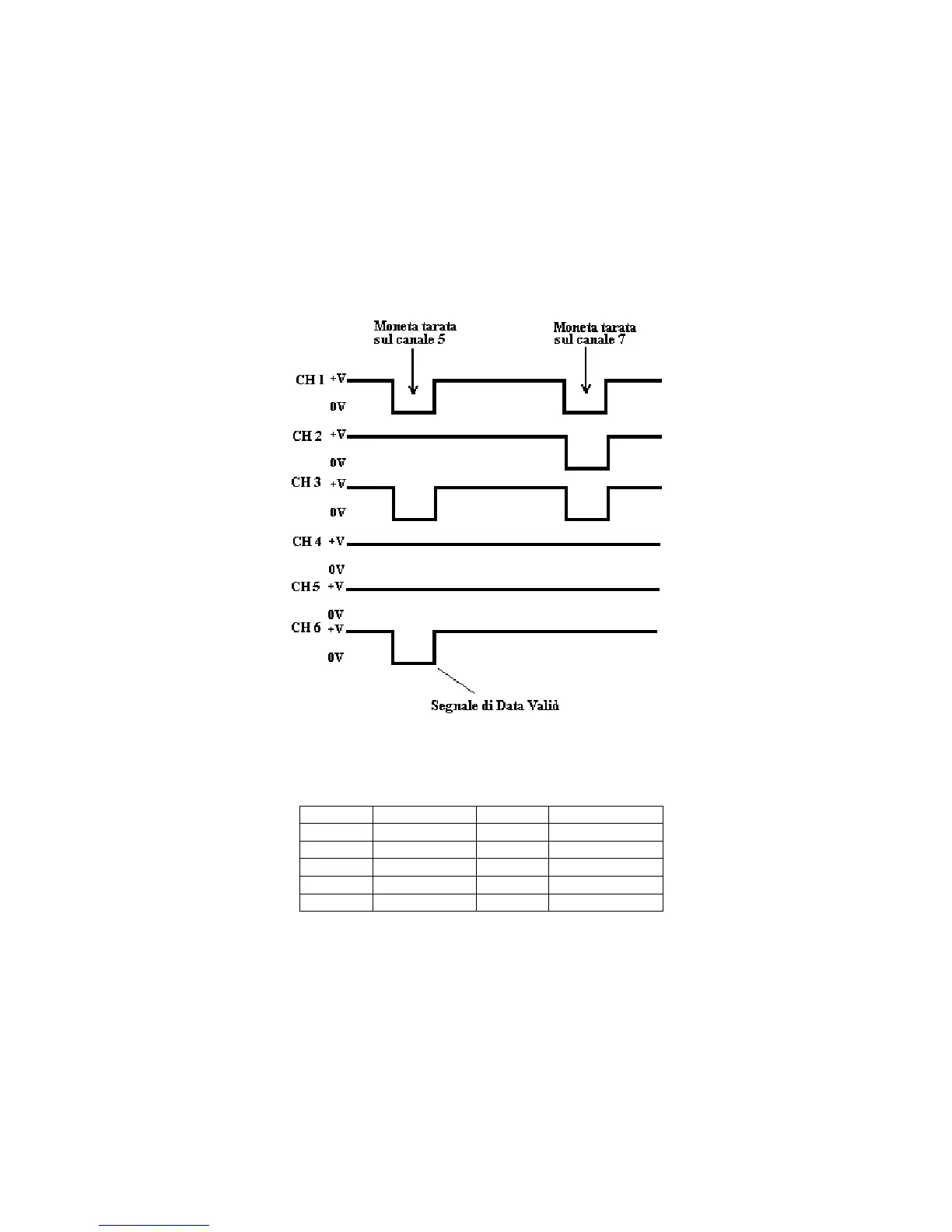

Coin adjusted on channel 5 – Coin adjusted on channel 7- Data Valid Signal
PIN OUT OF RM5 X BC VALIDATOR 10 PIN CONNECTOR
Pin No. Meaning Pin No. Meaning
1 Gnd 6 Inhibition
2 +12-24 Vdc 7 CH 1
3 N.U. 8 CH 2
4 Parity bit 9 CH 3
5 N.U. 10 CH 4
