Commax CIP-700M - System Diagram Overview

17
Spec
Model
CAV-71AS
MASTER 6 lines
14V , 700mA(MAX)
Hands free mode(Voice Switch circuit)
17.78 cm(7') COLOR TFT-LCD(digital)
- Entrance : two types of 3 tones electric chime bell
- Guard station : Melody
60±10 SEC(During conver sation), 30±10SEC(During monitoring)
MASTER : Ø 0.65 CABLE / 30m
0℃~+40℃
Transmission style
Power Source
Conversation
Display
Screen
Distance
Working Temperature
24. Specification
Call sound
31

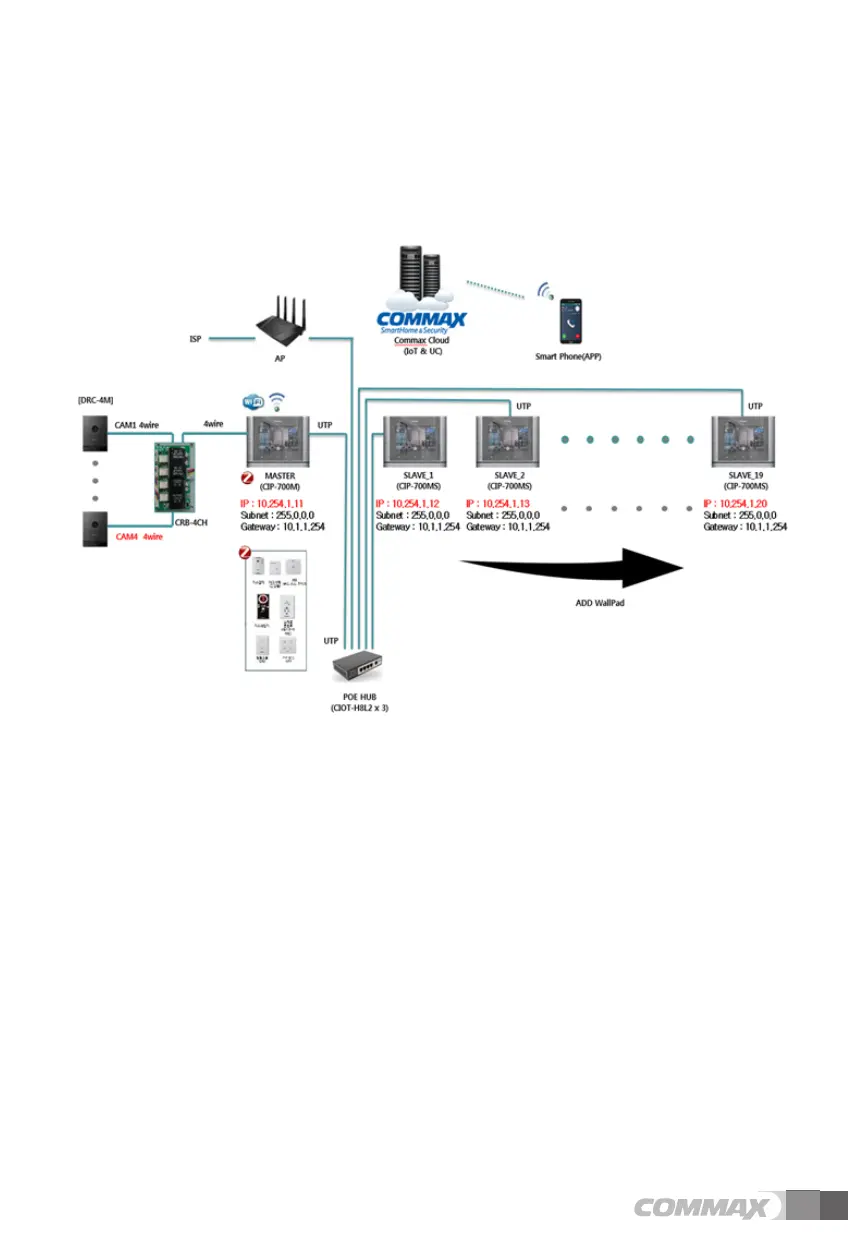

11. System Diagram
