1) Operation and inspection
All the equipment which is completed the wiring should be appropriate for below each
statement.
2) State on standby
If the power is on, the model name and version will be displayed with LED turned on.
1) Contrast : contrast adjustment (adjust it appropriately with UP/DOWN button)
2) Brightness : brightness adjustment (adjust it appropriately with UP/DOWN button)
3) Color : color adjustment (adjust it appropriately with UP/DOWN button)
4) Reset : initialize every setting value.
5) Screen-Mode : set the proportion of screen. (FULL screen/ 4:3 screen)
6) Save& Exi : save the setting value and end the screen adjustment.
* Screen brightness/concentration/color are adjustable with MENU switch while video calling.
* After moving to the relevant item with the UP/DOWN button, it is adjustable by pressing
SELECT button.
Contrast
[CONTROL MENU]
Brightness
Color
Reset
Screen-Mode FULL / 4:3
Save & Exit
4. Operation and Reset
5. Screen adjustment function
4
4
1. Introduction

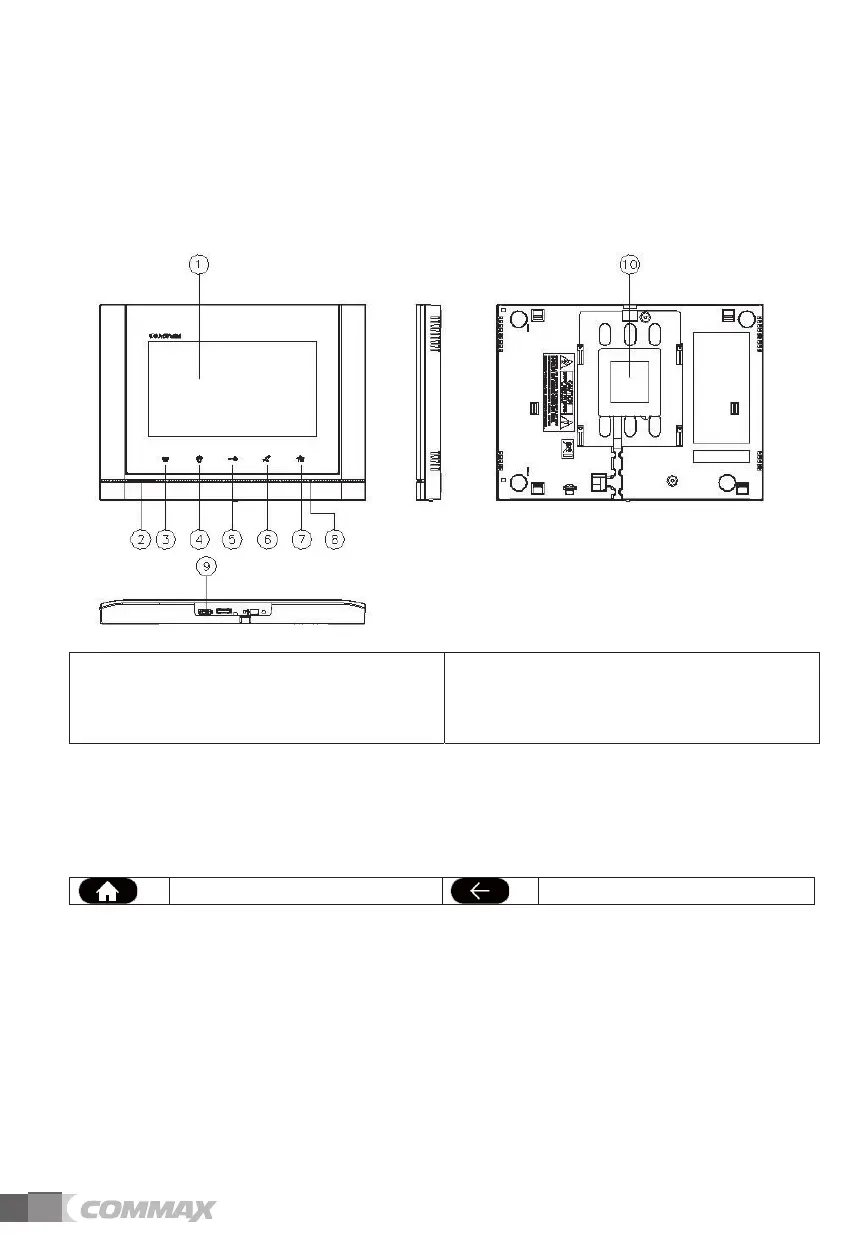

1.1. Product component
ྙ Touch Screen
ྚ Speaker
ྛ Emergency button
ྜ Guard button
ྜྷ Door open button
ྞ Call button
ྟ Home button
ྠ Microphone
ྡ Power switch
ྡྷ Connection terminal
1.2. Screen composition
The bottom button of home screen
Go to home screen Go back
