Commax DRC-481L - Main Entrance Interphone Wiring

- 48-

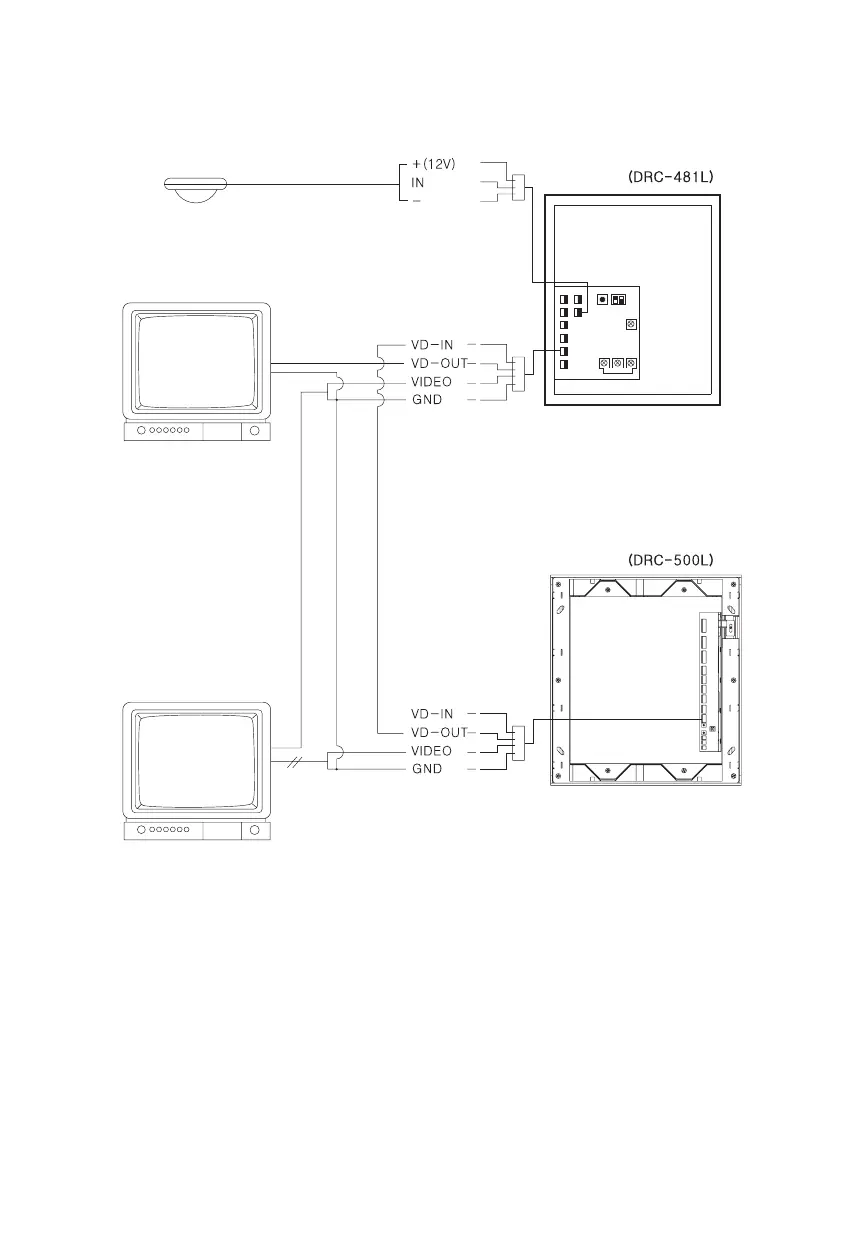

17) CCTV and Sensor Wiring
※ NOTE
1. Monitor 1: To view only when being used by the Main Entrance Interphone (DRC-481L).
2. Monitor 2: Continuous surveillance of the Main Entrance.
Monitor 1
CAMERA 1
CAMERA 2
Monitor 2
R
B
Y
R
B
Y
W
R
B
Y
W
R: Red
Y: Yellow
B: Blue
W: White
