Commodore AMIGA 1084S - Technical Specifications

GB-12
Monitor 1084S

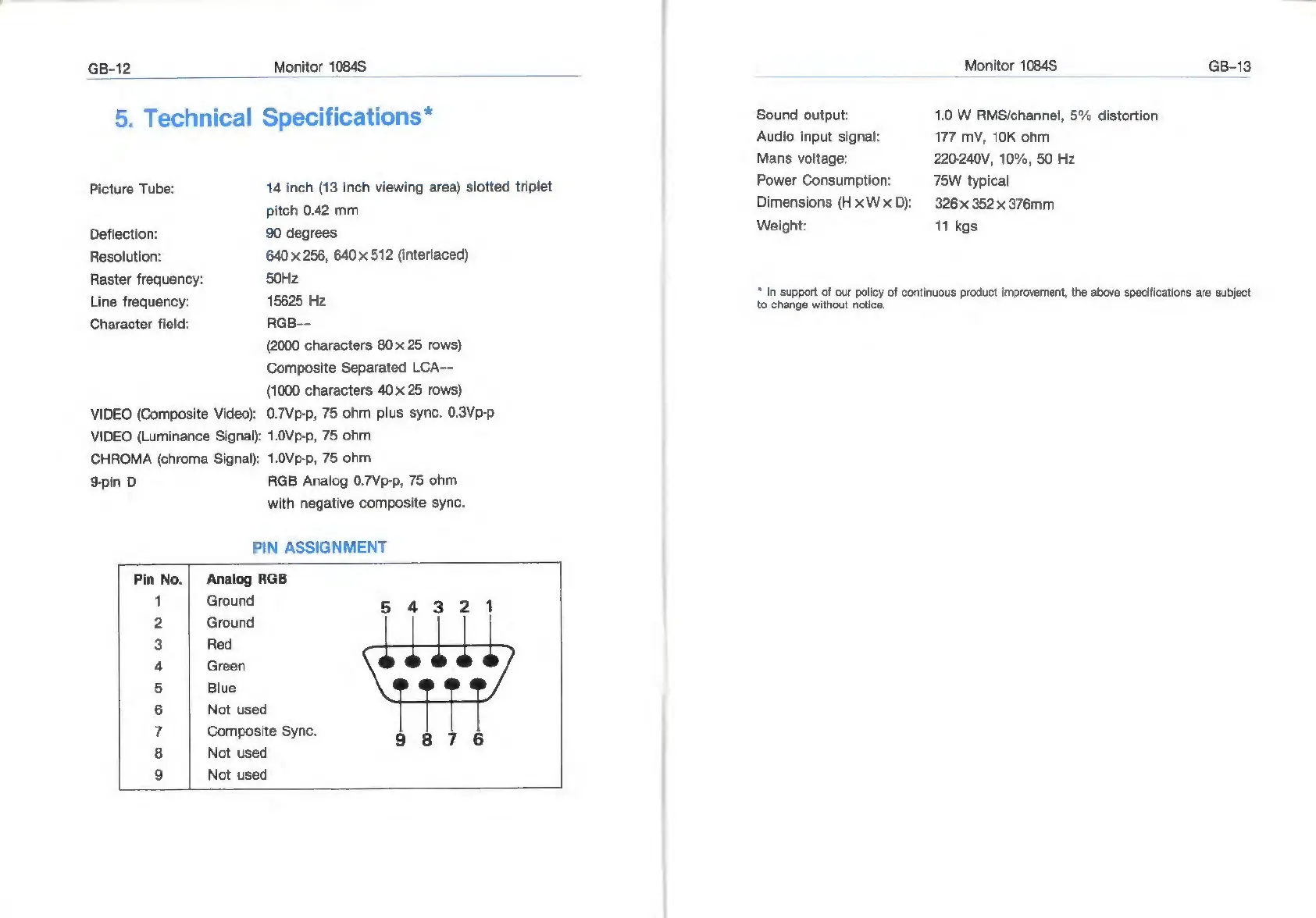

5. Technical Specifications*
Picture Tube:
Deflection:
Resolution:
Raster frequency:
Line frequency:
Character field:
VIDEO (Composite Video):
VIDEO (Luminance Signal):
CHROMA (chroma Signal):
9-pin D
PI
14 inch (13 inch viewing area) slotted triplet
pitch 0.42 mm
90 degrees
640 x 256, 640 x 512 (interlaced)
50Hz
15625 Hz
RGB--
(2000 characters 80 x 25 rows)
Composite Separated LCA--
(1000 characters 40 x 25 rows)
0.7Vp-p, 75 ohm plus sync. 0.3Vp-p
1.0Vp-p, 75 ohm
1.0Vp-p, 75 ohm
RGB Analog 0.7Vp-p, 75 ohm
with negative composite sync.
N ASSIGNMENT
Pin No. | Analog Ri
Ground
Ground
Red
Green
Blue
Not used
Not used
Not used oeonousrwm-
Composite Sync.
GB
54321
9876
Monitor 1084S
GB-13
Sound output:
Audio input signal:
Mans voltage:
Power Consumption:
Dimensions (H x W x D):
Weight:
1.0 W RMS/channel, 5% distortion
177 mV, 10K ohm
220-240V, 10%, 50 Hz
75W typical
326 x 352 x 376mm
11 kgs
* In support of our policy of continuous product improvement, the above specifications are subject
to change without notice,
