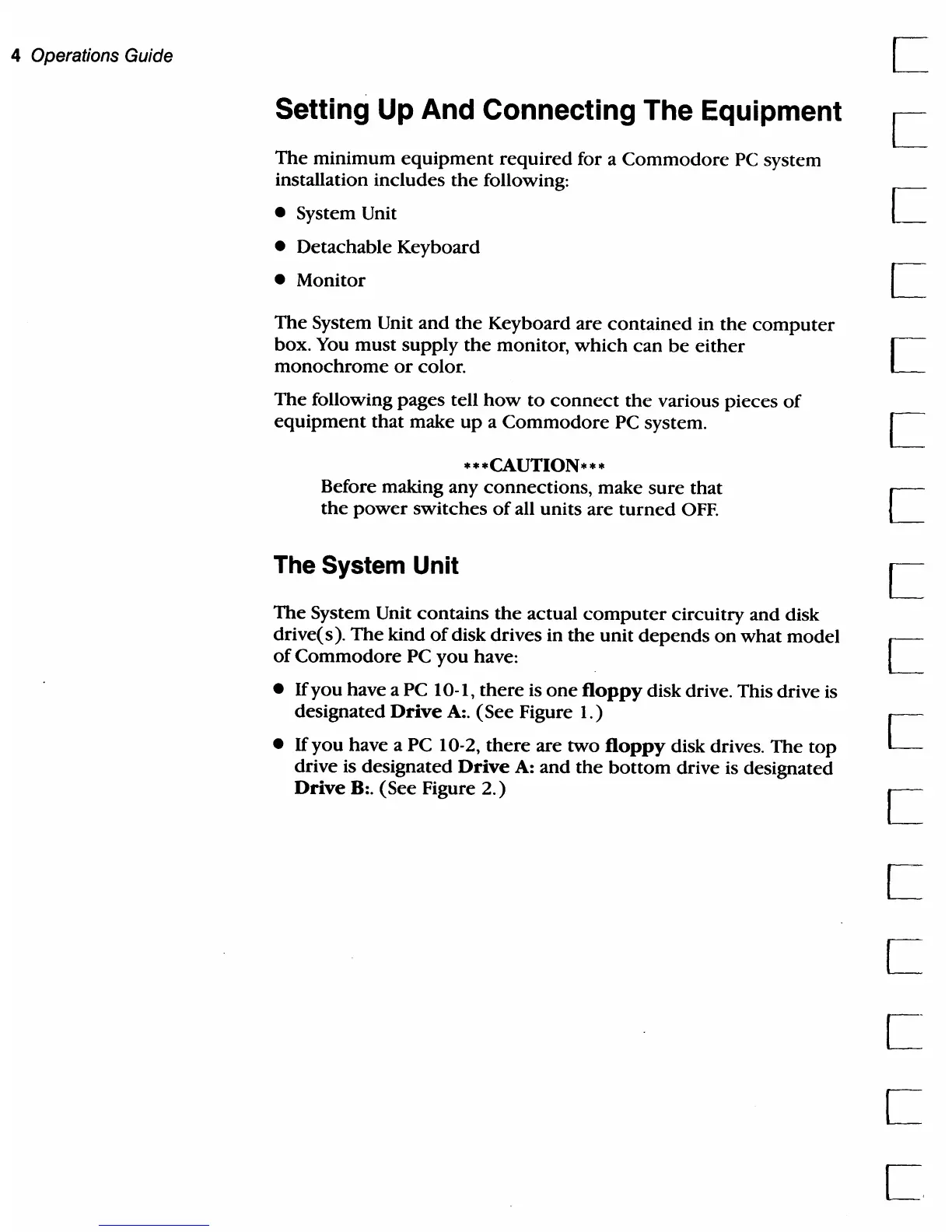

4 Operations Guide
Setting Up And Connecting The Equipment
The minimum equipment required for a Commodore PC system
installation
includes the following:
• System Unit
•
Detachable Keyboard
• Monitor
The System Unit and the Keyboard are contained in the computer
box. You must supply the monitor, which can be either
monochrome or color.
The following pages tell how to connect the various pieces of
equipment that make up a Commodore PC system.
···CAUTION···
Before making any connections, make sure that
the power switches of all units are turned OFF.
The System Unit
The System Unit contains the actual computer circuitry and disk
drive( s).
The kind of disk drives in the unit depends on what model
of Commodore PC you have:
• If
you have a PC 10·1, there is one floppy disk drive. This drive is
designated Drive A:. (See Figure 1.)
• If you have a PC 10-2, there are two floppy disk drives. The top
drive is designated Drive A: and the bottom drive is designated
Drive B:. (See Figure 2.)
