C:

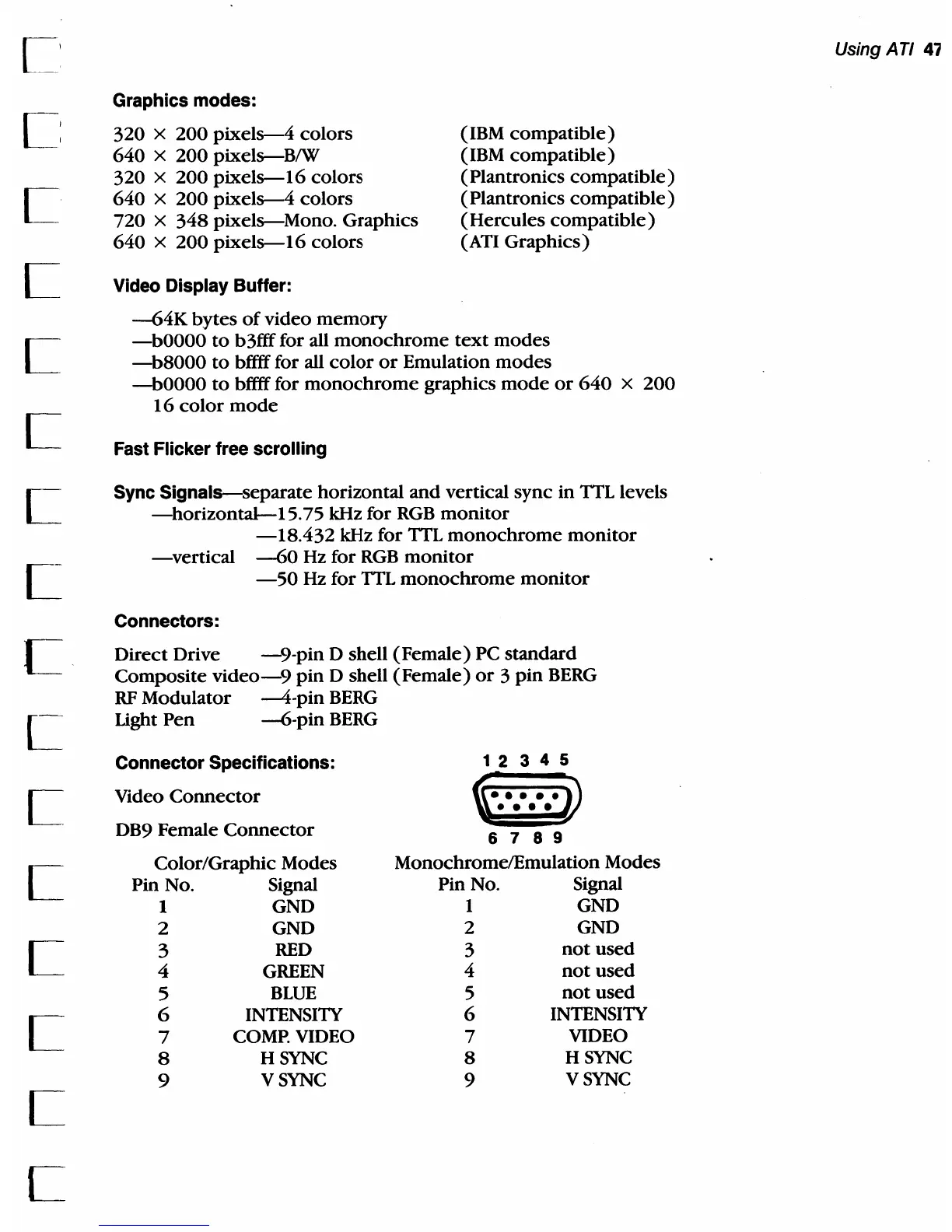

Graphics modes:
320 x 200 pixels-4 colors
640 x 200 pixels-BIW
320 X 200 pixels-I6 colors
640 X 200 pixels-4 colors
720 X 348 pixels-Mono. Graphics
640 X 200 pixels-I6 colors
(IBM
compatible)
(IBM compatible)
(Plantronics compatible)
(Plantronics compatible)
(Hercules compatible)
(AT! Graphics)
L Video Display Buffer:
c
-64K bytes of video memory
-bOOOO to b3fff for all monochrome text modes
-b8000 to bffff for all color or Emulation modes
-bOOOO to bffff for monochrome graphics mode or 640 X 200
16 color mode
Fast Flicker free scrolling
Sync Signals--separate horizontal and vertical sync in ITL levels
-horizontal-I 5.75 kHz for RGB monitor
-18.432 kHz for ITL monochrome monitor
-vertical -60 Hz for RGB monitor
-50 Hz for ITL monochrome monitor
Connectors:
Direct Drive -9-pin D shell (Female) PC standard
Composite video-9 pin D shell (Female) or 3 pin BERG
RF Modulator -4-pin BERG
Light Pen -6-pin BERG
Connector Specifications:
Video Connector
DB9 Female Connector
Color/Graphic Modes
Pin No. Signal
1 GND
2 GND
3 RED
4 GREEN
5 BLUE
6 INTENSITY
7
COMP. VIDEO
8 HSYNC
9 V
SYNC
1 2 3 4 5
6 7 8 9
Monochrome!Emulation Modes
Pin No. Signal
1 GND
2 GND
3
not used
4 not used
5 not used
6 INTENSITY
7 VIDEO
8 HSYNC
9 V
SYNC
Using AT! 47
