CommScope Touchstone DG6450 - Choosing an Installation Location

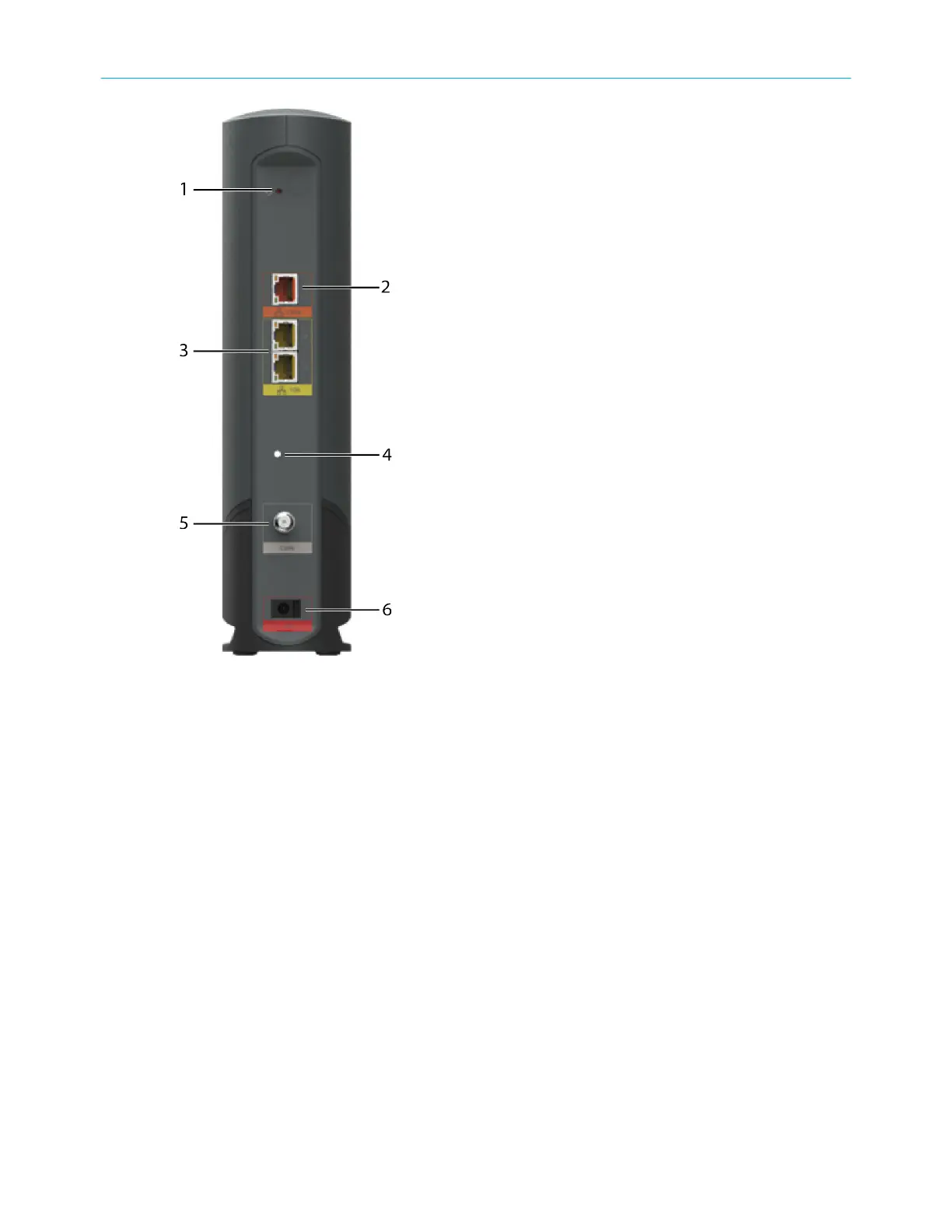

1. Reset buon: Resets the Data Gateway as if you power cycled the device. Use a pointed
non-metallic object to press this buon.
2. 2.5GigE Ethernet connector: 2.5GigE connector for use with a computer LAN port.
3. 1GigE Ethernet connectors: 1GigE connectors for use with a computer LAN port.
4. MoCA: Indicates connecvity between the Data Gateway and other home devices
connected via the MoCA network.
5. Cable: Connector for the coaxial cable.
6. Power: Connector for the power cord.
Choose an installaon locaon
There are a number of factors to consider when choosing a locaon to install your Data
Gateway:
■ Is an AC outlet available nearby? For best results, the outlet should not be switched and
should be close enough to the Data Gateway that extension cords are not required.
■ Is a cable jack available? For best performance, keep the number of spliers between
the jack and cable drop to a minimum. Each splier aenuates (reduces) the signal
available to the Data Gateway. A large number of spliers can slow down your Internet
connecon.
