CompAir D50H RS User Manual

4. Design and functioning
19
4.1.3 Design of the air-cooled D50H RS-A - D75H RS-A

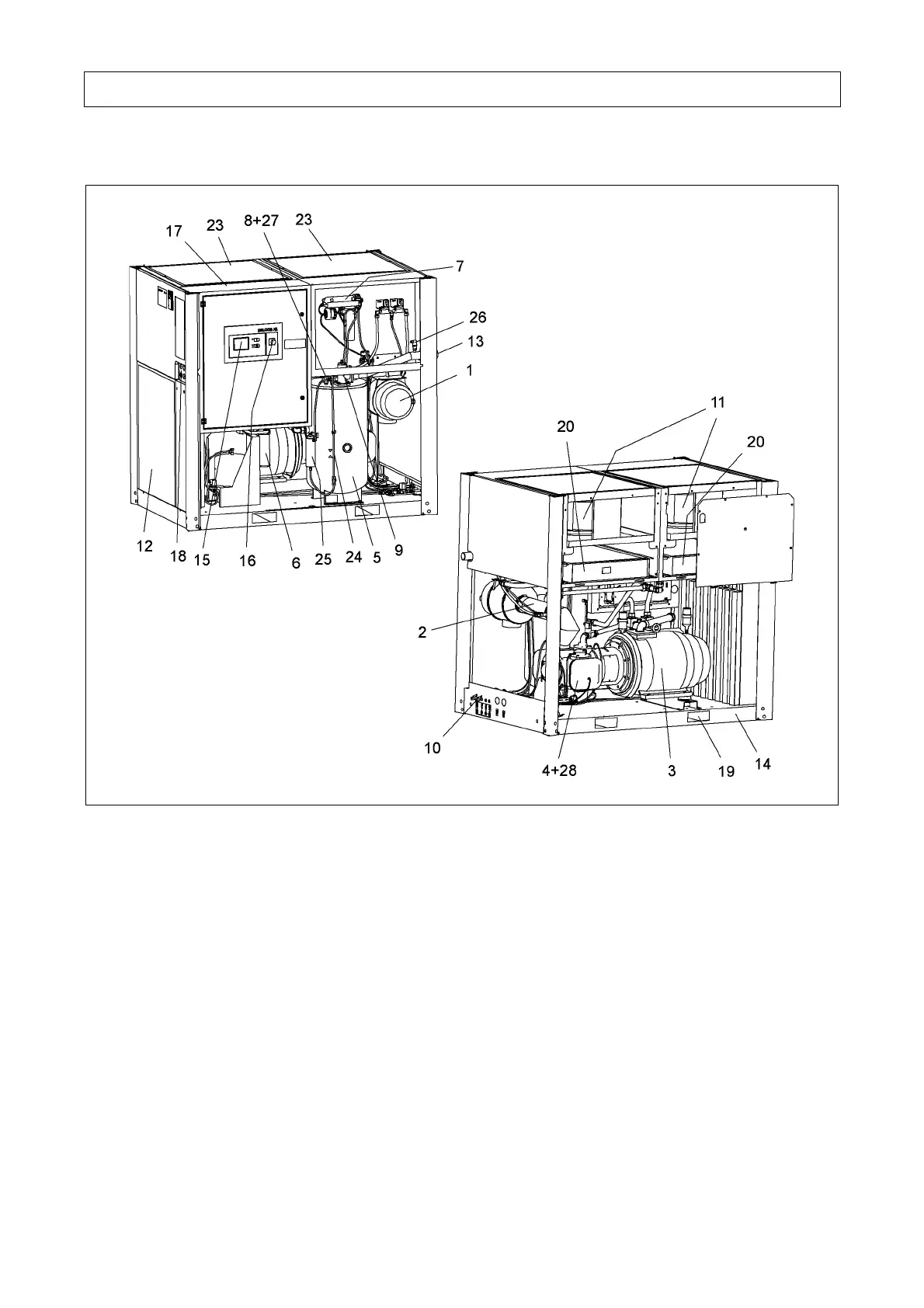

Fig. 4
1 Intake filter
2 Suction inlet
3 Electric motor
4 Screw compressor
5 Pressure reservoir
6 Water filter
7 RO-Unit
8 Safety valve
9 Pressure holding and check valve
10 Water connection
11 Cooling air ventilator
12 Cooling air inlet filter mat
13 Compressed air outlet
14 Base frame
15 Control keypad
16 EMERGENCY OFF
push-button
17 Control cabinet
18 Supply cable gland
19 Opening for lifting gear
20 Water cooler
23 Fan protection panel
24 Water level indicator
25 Water level sensor
26 Network pressure sensor
27 Final compression
pressure sensor
28 Final compression temperature
sensor
