6. Operating Instructions
6-1

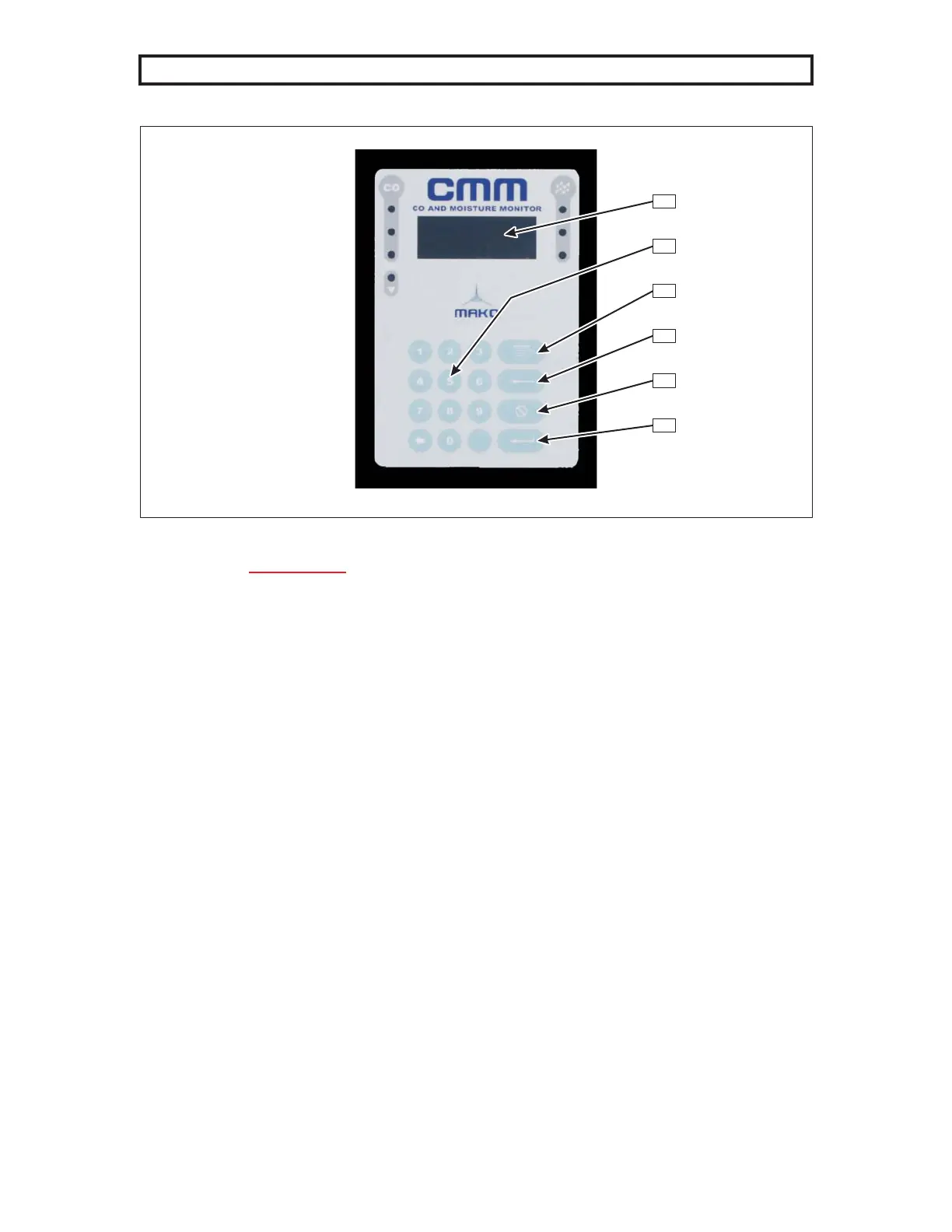

fig. 6.1-1 Standard CMM Controls
Please read your owner's manual carefully
for important safety information.
See section 4.2 for a full description of the
Standard CMM Overlay.
[1] - CMM Display.
[2] - CMM Number Pad.
[3] - Menu Command - This button will take
you to the main menu of the CMM.
[4] - Previous Command - This button will
take you back one screen.
[5] - Cancel Command - This button will
allow you to cancel out of a command.
[6] - Enter Command - This button will
allow you to enter data that has been
punched in.
6.1 Standard CMM Controls
Danger!
6.2 Start-Up
6.2.1 Shut-Down
Before beginning start-up inspect unit &
check logs (see section 3.8 and 3.8.1)
1) The CMM retrofit panels will be powered
up along with the compressor system.
2) The CMM Wall Mount unit will need to
be turned on independently. Compressor
system should not be able to operate with
the CMM wall mount turned off.
It is not necessary to turn the CMM off during
normal day-to-day operation. It is beneficial
to leave the unit powered on. However, if the
units will not be operated for an extended
amount of time then shut down procedures
are in order.
1) The CMM retrofit panels will be shut-
down along with the compressor
system.
2) The CMM Wall Mount unit will need to be
shut-down independently.
