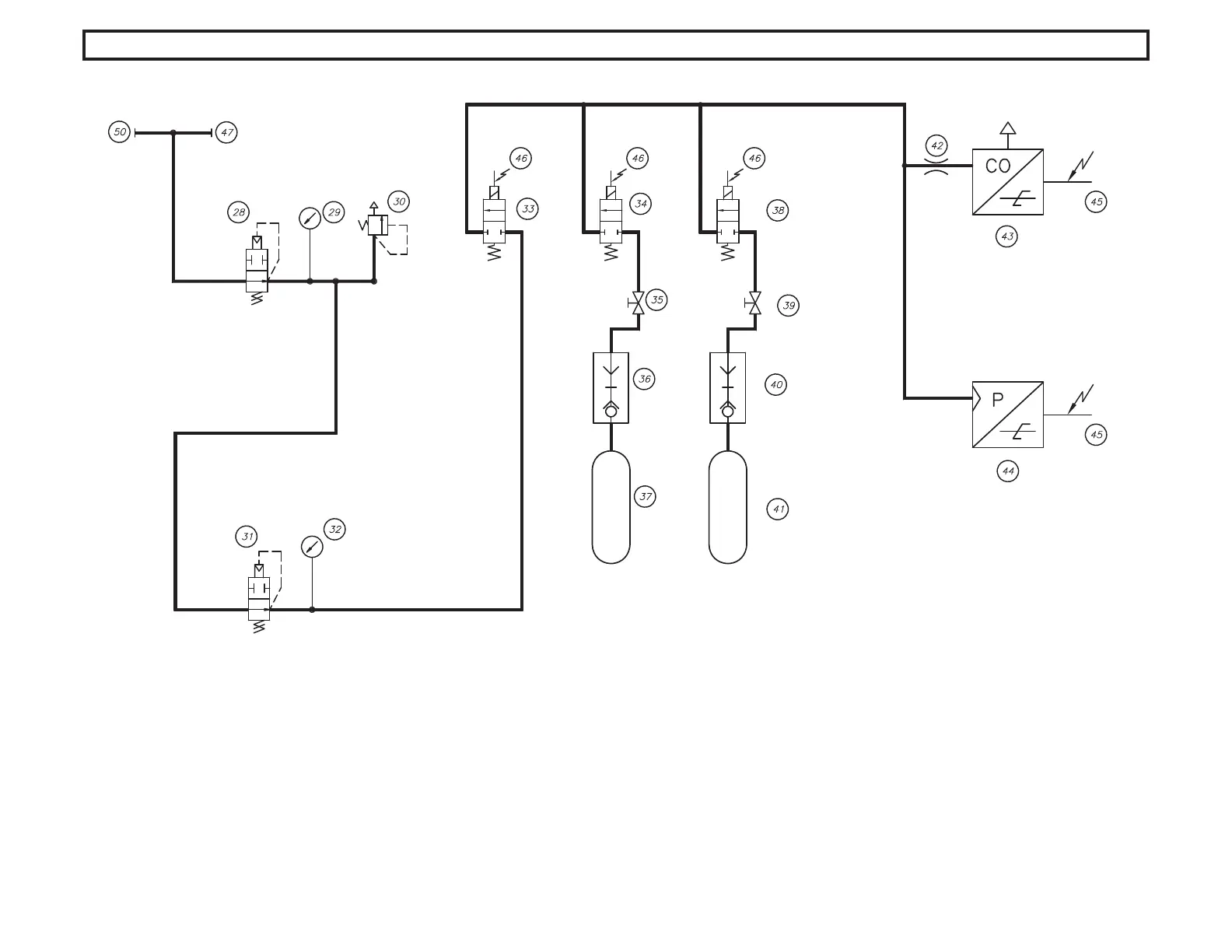

Appendix B - P&ID of Typical CMM
Legend
Item No. Description Item No. Description
28 High Pressure Regulator 39 0 PPM Cylinder Valve
29 Pressure Gauge 40 0 PPM Quick Disconnect
30 Pressure Relief Valve 41 0 PPM Cylinder
31 Low Pressure Regulator 42 Flow Restrictor Orifice
32 Pressure Sample Gauge 43 CO Sensor Cell
33 System Air Solenoid Valve 44 Pressure Sensor
34 20 PPM Solenoid Valve 45 To CMM
35 20 PPM Cylinder Valve 46 From CMM
36 20 PPM Quick Disconnect 47 Compressor System Outlet
37 20 PPM Cylinder 50 To Storage
38 0 PPM Solenoid Valve
