35. Replace the keyboard assembly (Section 5.7).
36. Replace the tilt feet (Section 5.5).
37. Replace the handle bracket (Section 5.4).
Clutches and Ground Clips
This section contains removal and replacement procedures for the clutch
ground clips located between the system chassis and CPU base, and for the
clutches that join the system unit module and the display enclosure.
Removing and Replacing the Clutch Ground Clips
To remove the left and right clutch ground clips, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
2. Remove the keyboard assembly (Section 5.7).

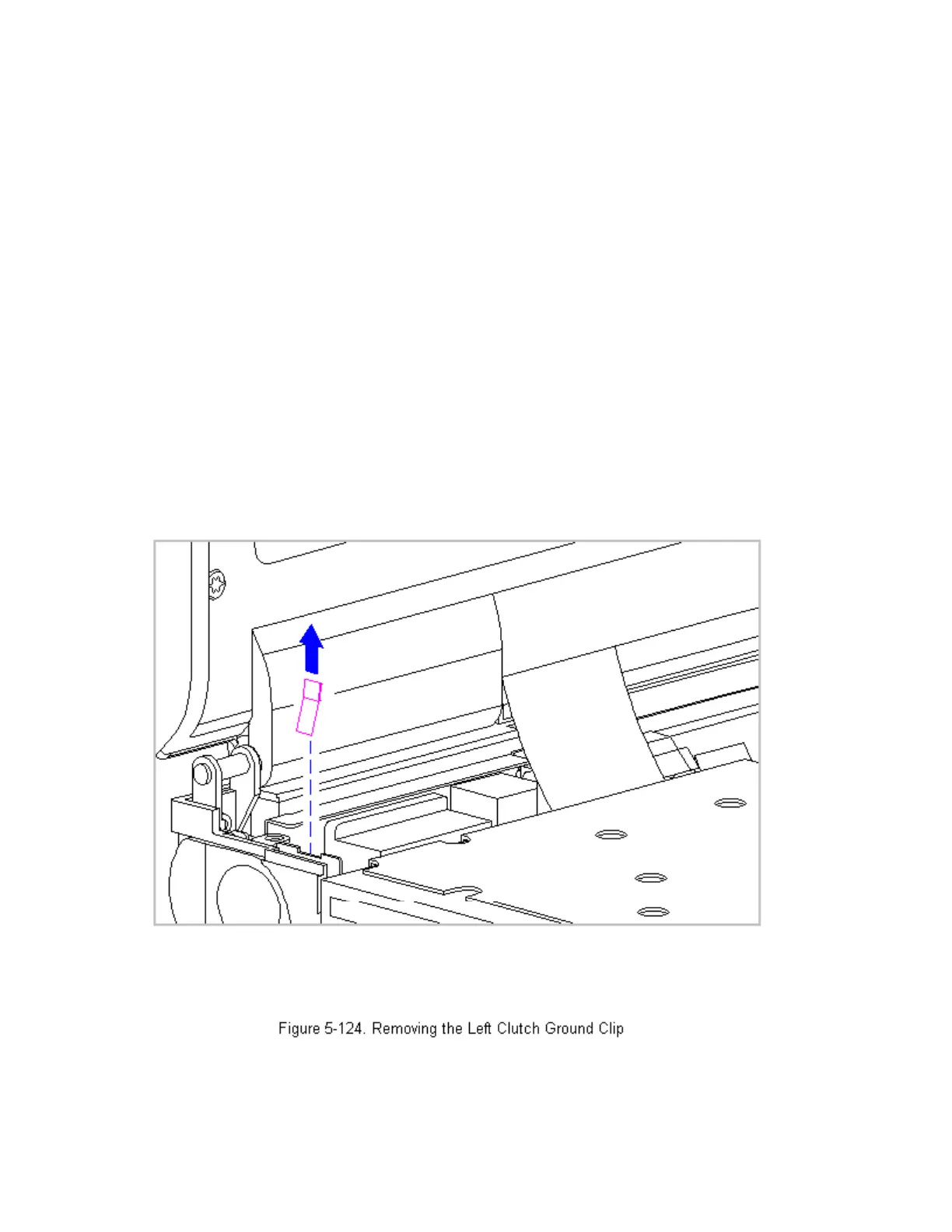

3. Remove the left clutch ground clip from the system chassis (Figure
5-124).
