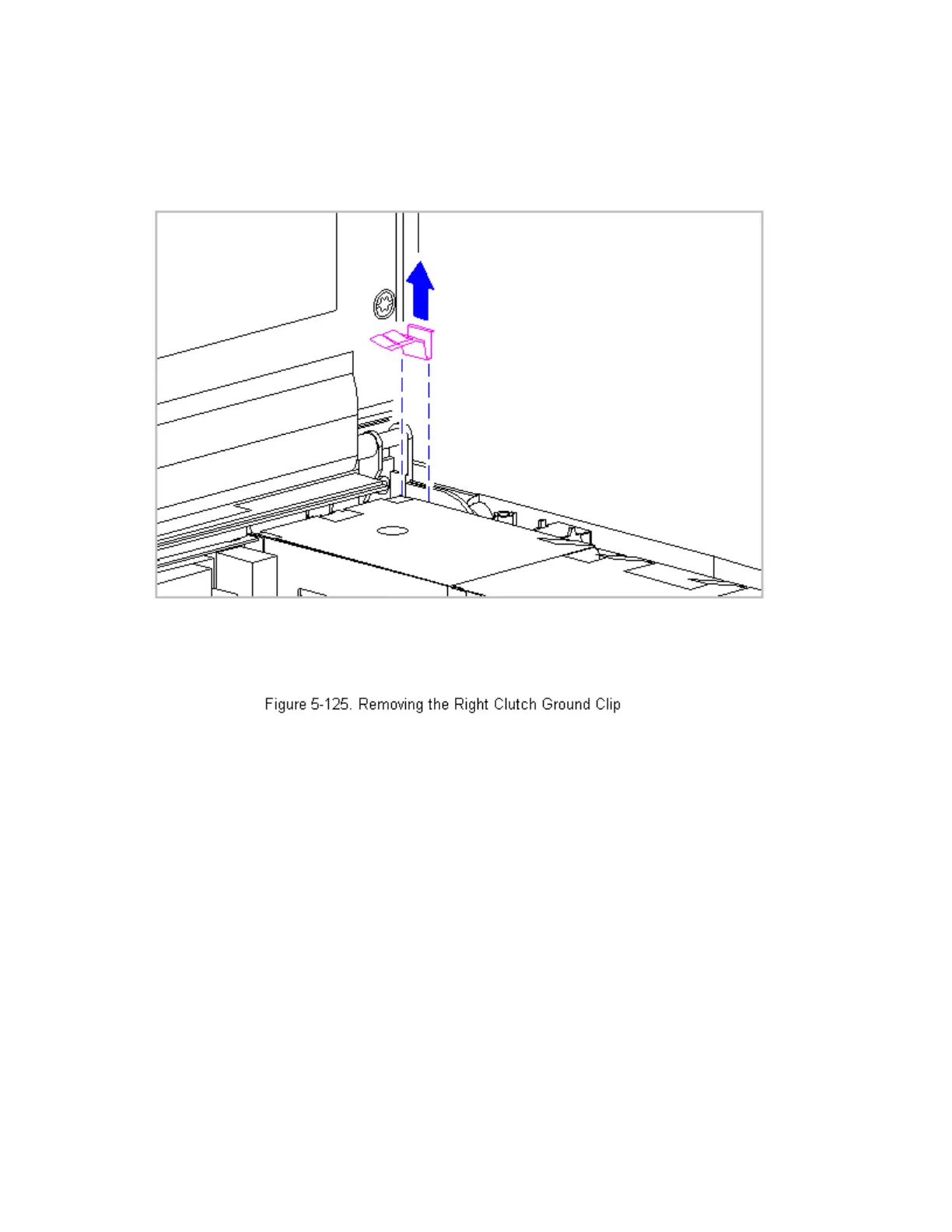

4. Remove the right clutch ground clip located between the clutch and the
CPU base (Figure 5-125).
5. To replace the clutch ground clips, reverse the previous steps.
Removing and Replacing the Clutches
To remove the clutches, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
2. Remove the handle brackets from each side of the computer (Section
5.4).
