>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The computer becomes top-heavy when the keyboard assembly is removed and
the display is opened. To prevent damage to the display and the computer,
ensure that the display assembly is opened at a 90-degree angle.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
4. Remove the keyboard assembly (Section 5.7).
5. Remove the left and right clutch ground clips (see "Removing and
Replacing the Clutch Ground Clips" in this section).

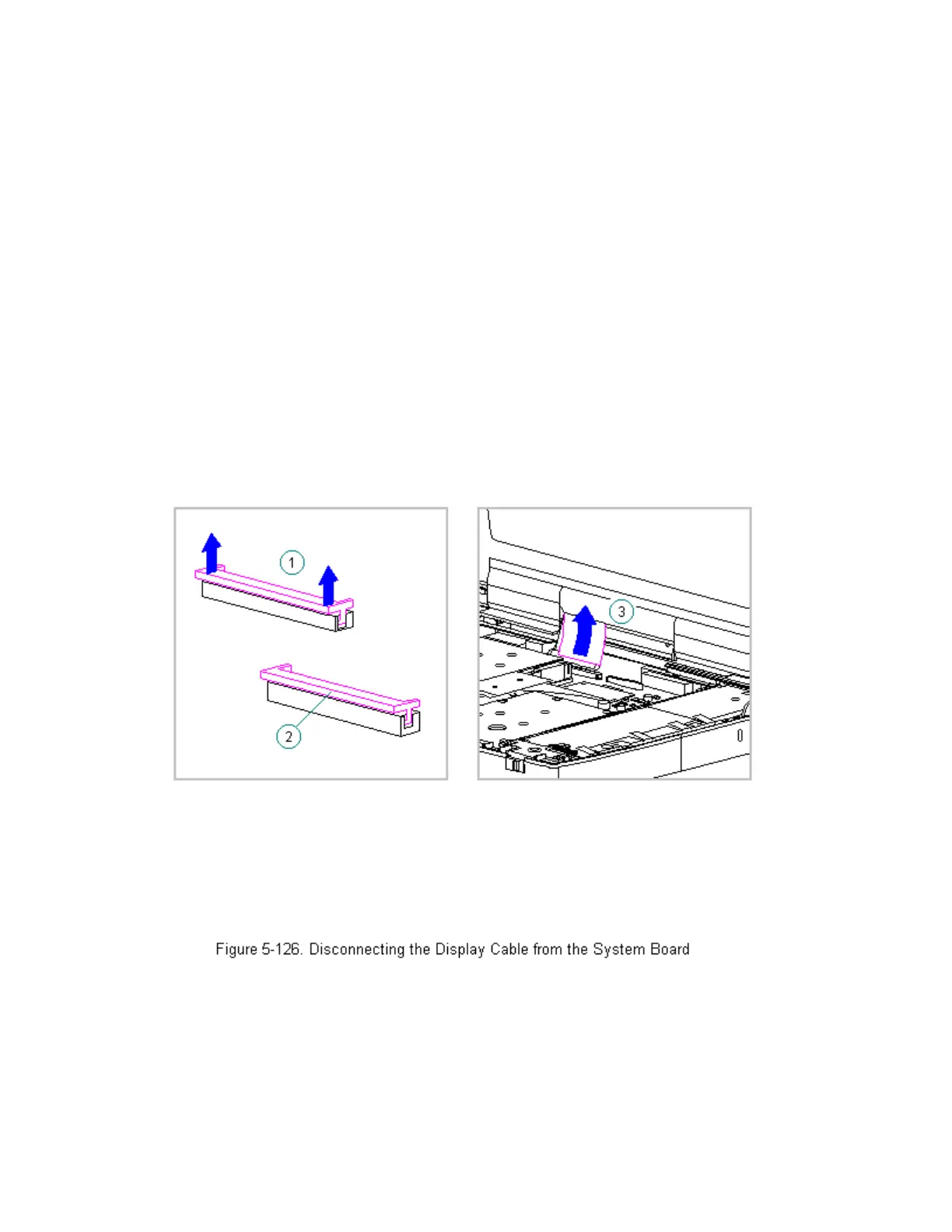

6. Pull up both ends of the ZIF connector slide simultaneously [1],
carefully opening the slide [2] (Figure 5-126).
7. Lift the display cable out of the connector slide [3], being careful
not to pull or twist the cable (Figure 5-126).
8. Remove the display ground cable [1] away from the flex ground bracket
(Figure 5-127).
3 Remove the tilt feet from each side of the computer (Section 5 5)
