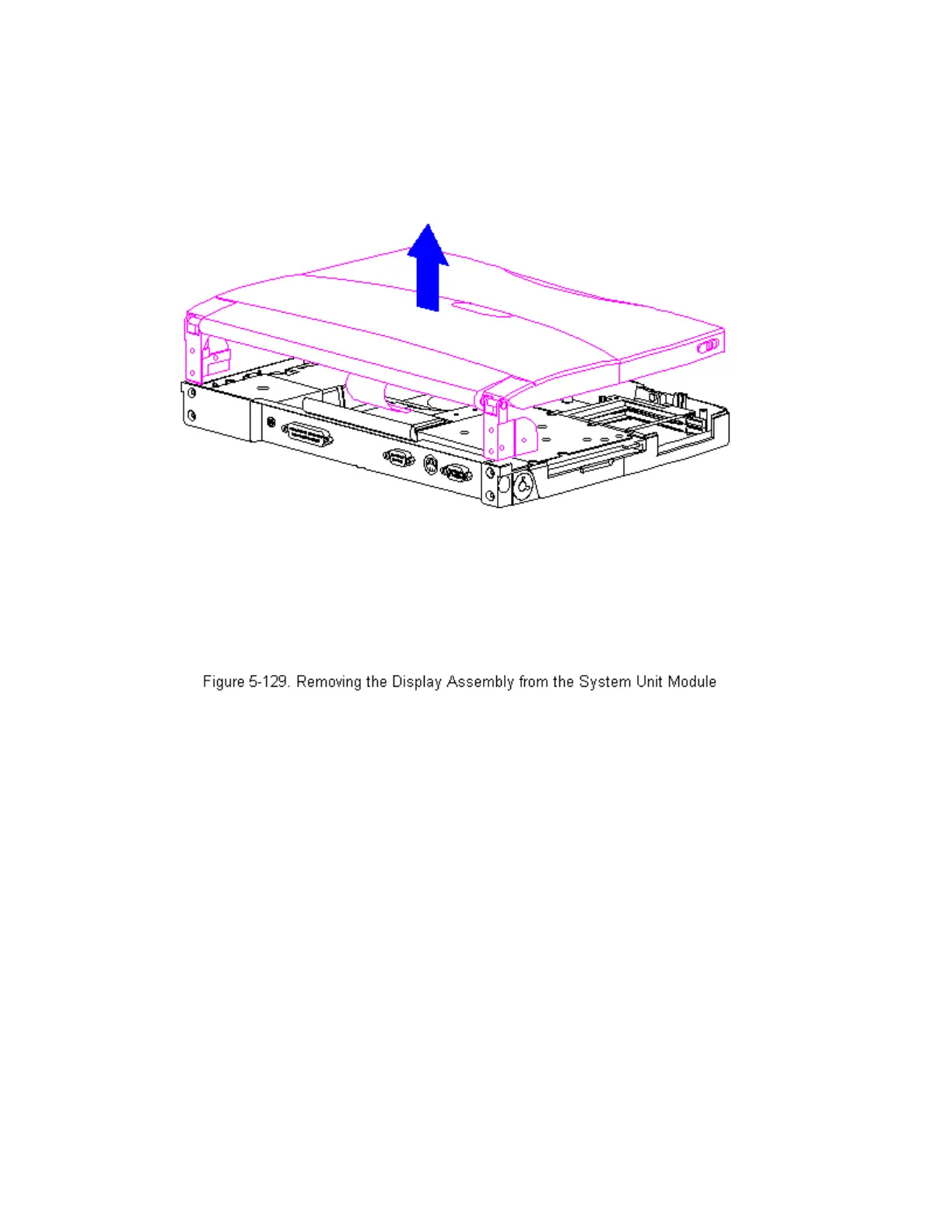

10. Lift the display assembly off the system unit module (Figure 5-129).
11. Place the display assembly topside up.
12. Remove the display bezel (Section 5.19).
13. Remove the screws from the clutches on either side of the display
enclosure.
14. On either side of the display enclosure, slide the clutches from
underneath the display shield tabs (Figure 5-130).
