Hardware Reference Guide 4–3
Using the Legacy Module
Connecting the Legacy Module
1. Remove the access panel. Refer to “Removing and Replacing the
Access Panel” on page 3-1.
2. Remove the rear panel cover. Refer to “Removing the Rear Panel
Cover” on page 4-2.
3. Align the plastic tabs on the Legacy Module with the holes in the
rear panel, then press firmly to seat the Legacy Module into the
Legacy Module connector.
4. Replace the grounding screw.

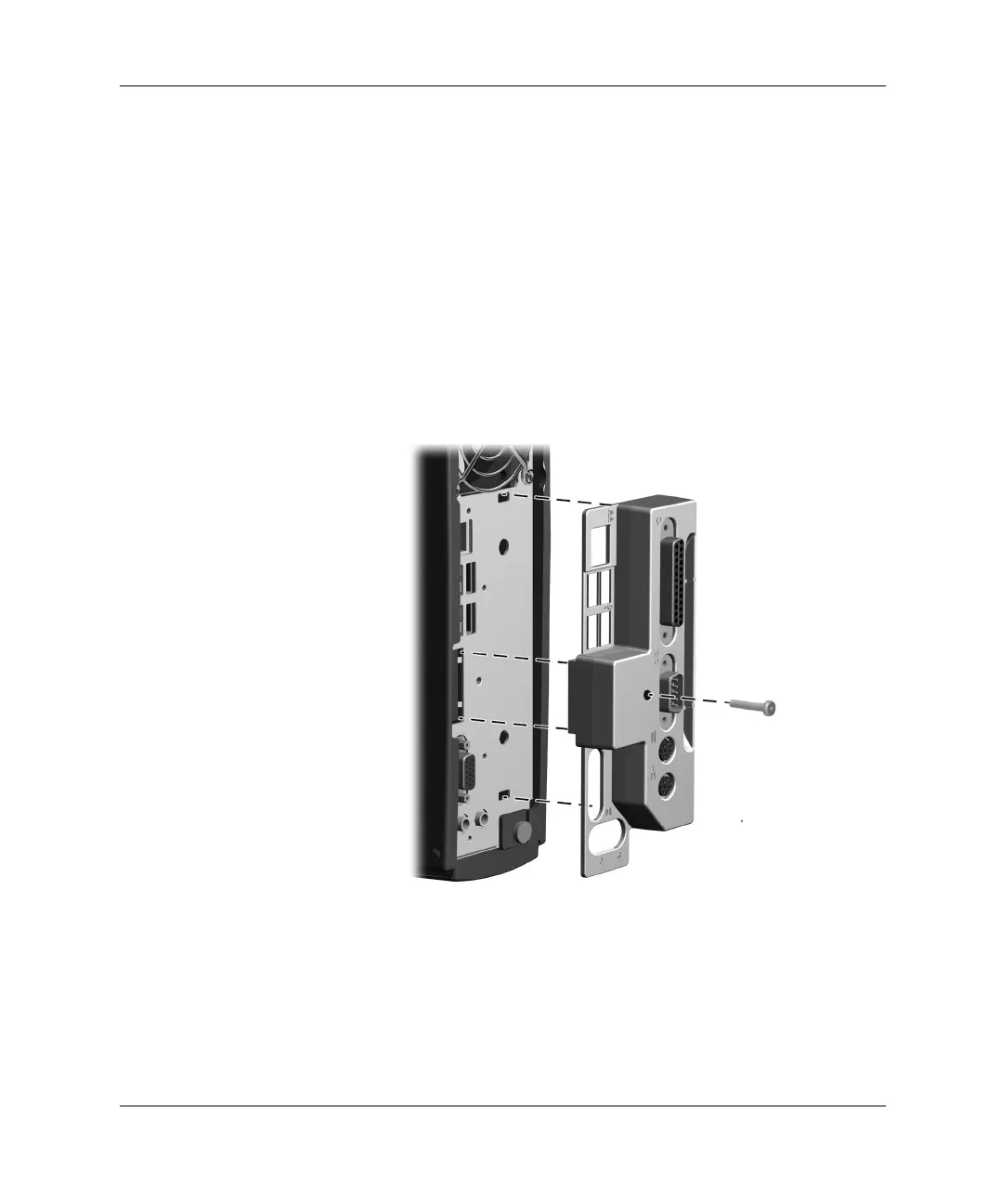

Installing the Legacy Module and Grounding Screw
5. Replace the access panel.
