Hardware Reference Guide 3–7
Adding System Memory and Upgrading the Internal Hard Drive
Upgrading the Primary Hard Drive
The primary hard drive is a 3.5-inch hard drive located on the right
side of the personal computer, over the MultiBay.
1. Exit all software applications, shut down the operating system
software, turn off the personal computer and any external devices,
then disconnect the power cord from the power outlet.
2. Remove the access panel. Refer to “Removing and Replacing the
Access Panel” on page 3-1.

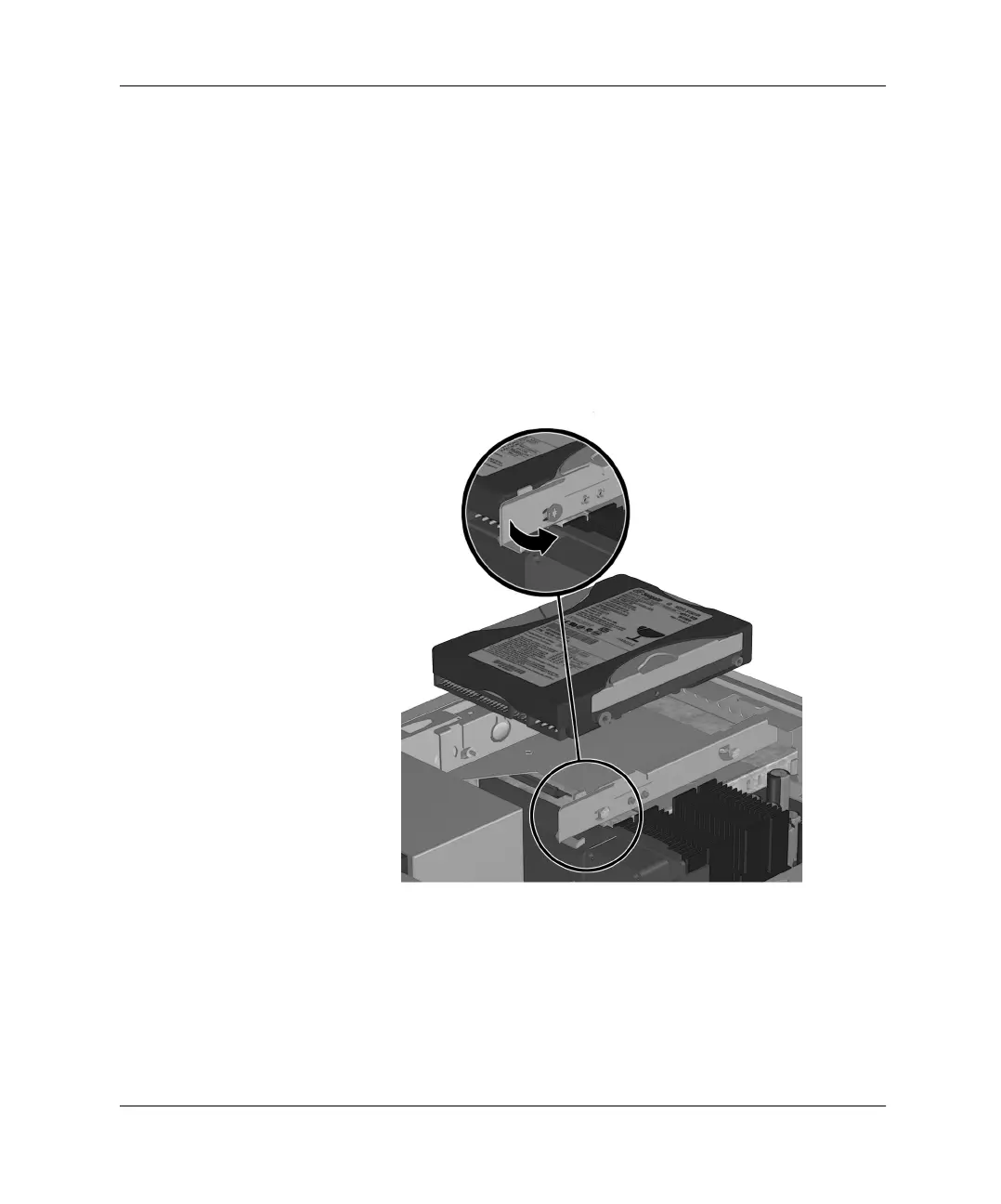

Removing the Internal Hard Drive
3. Gently pull the release lever away from the hard drive.
4. Slide the drive toward the power supply, then lift the drive up and
out of the personal computer.
sp-hrg.book Page 7 Thursday, December 13, 2001 9:14 AM
