Removal and Replacement Procedures
Maintenance and Service Guide 5–5
b. Slide the battery release latch 1 toward the back of the
notebook (Figure 5-2).
c. Swing the right side of the battery pack up and to the
left
2.
d. Remove the battery pack
3.

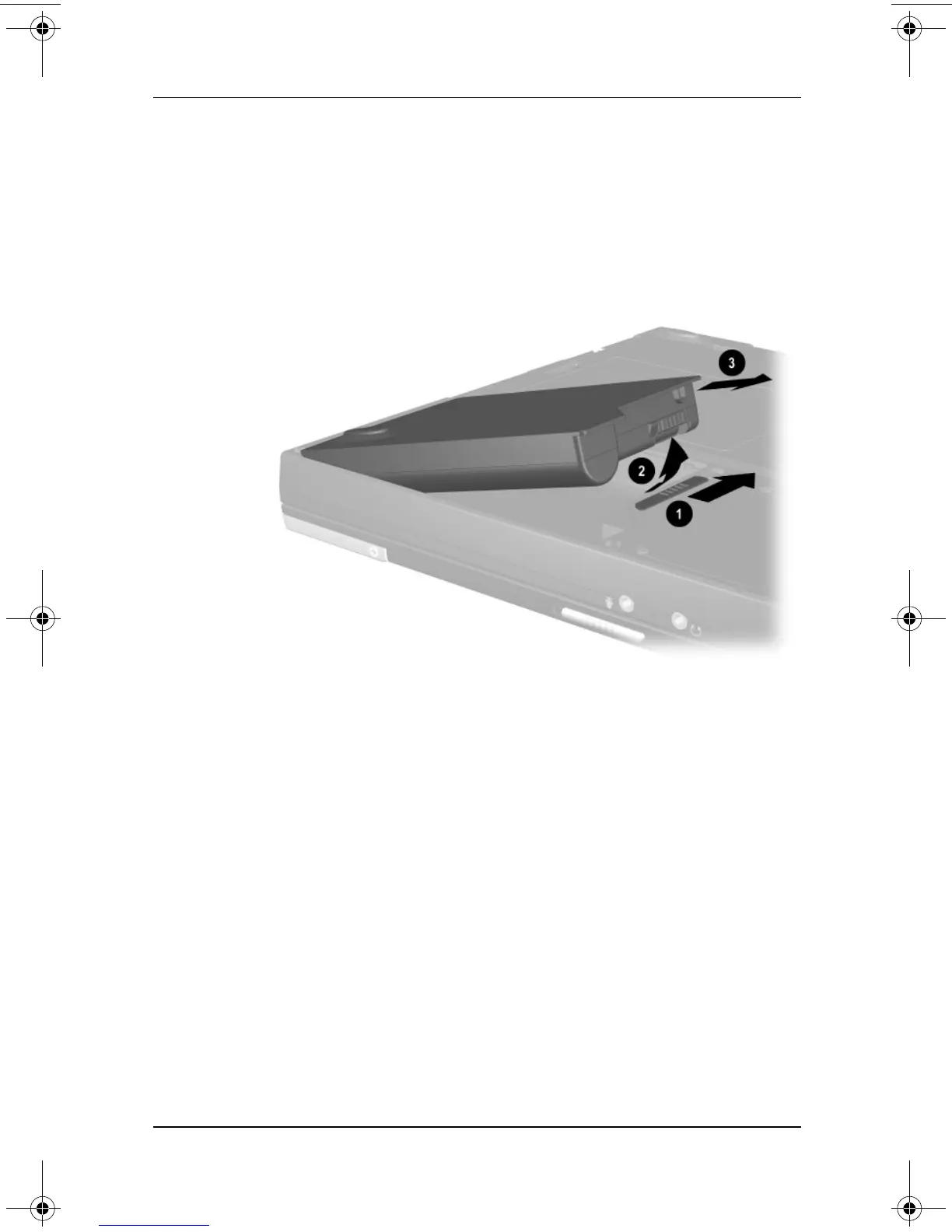

Figure 5-2. Removing the Battery Pack
Reverse the preceding procedure to install the battery pack.
279362-003.book Page 5 Monday, May 19, 2003 1:28 PM
