Removal and Replacement Procedures
Maintenance and Service Guide 5–7
4. Remove a Media Bay device by following these steps:
a. Turn the notebook bottom side up with the left side
facing forward.
b. Slide and hold the Media Bay release latch toward the
back of the notebook
1 (Figure 5-3).
c. Use the notch in the Media Bay device to slide the device
out of the Media Bay
2.

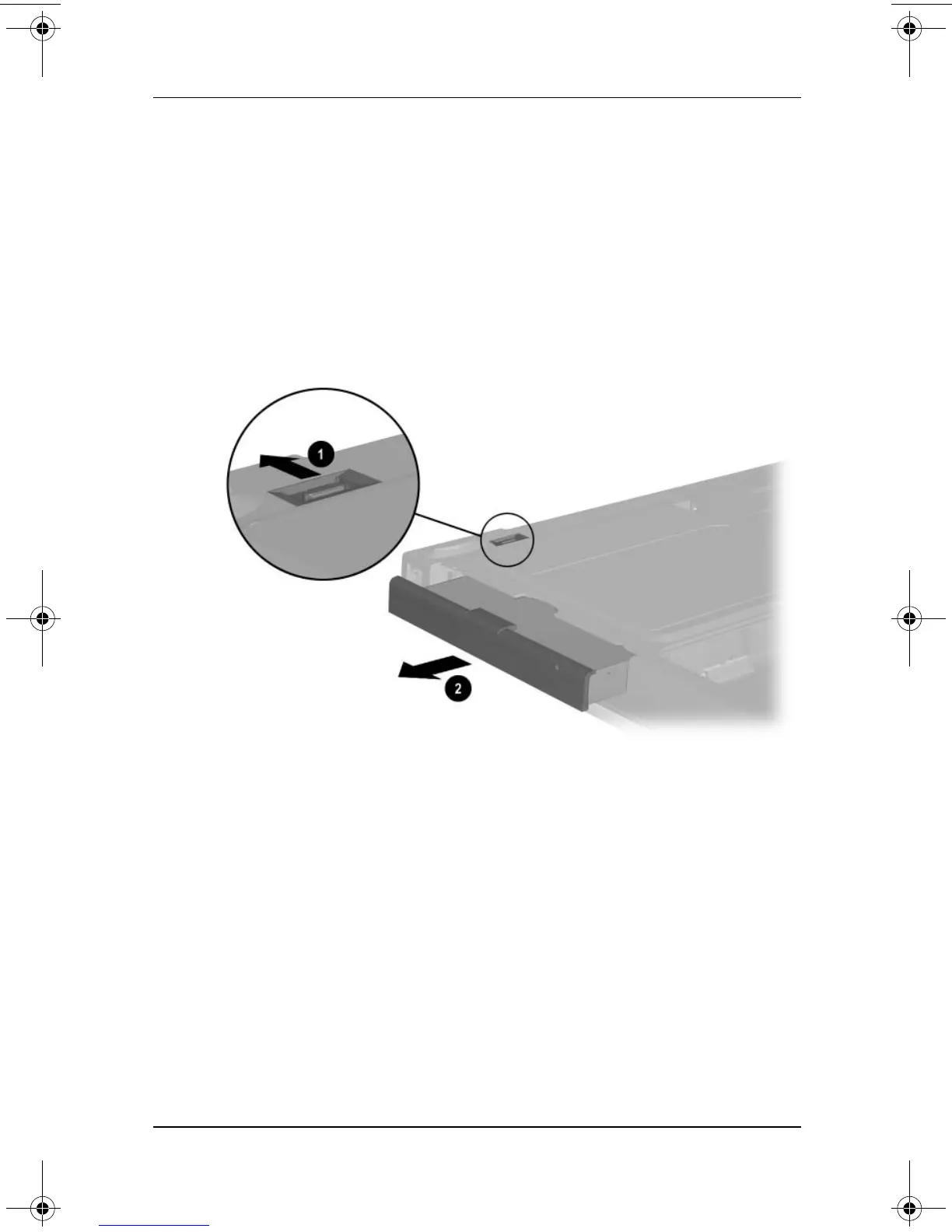

Figure 5-3. Removing a Media Bay Device
Reverse the preceding procedure to install the Media Bay device.
