7. Lift the top edge of the keyboard and swing it up and forward
until it rests on the top cover 1 (Figure 5-12).
8. Disengage the keyboard cable from the retaining clips in the
top cover.
9. Release the ZIF connector to which the pointing device cable
is attached 2 and disconnect the pointing device cable 3.
10. Release the ZIF connector to which the keyboard cable is
attached 4 and disconnect the keyboard cable 5.

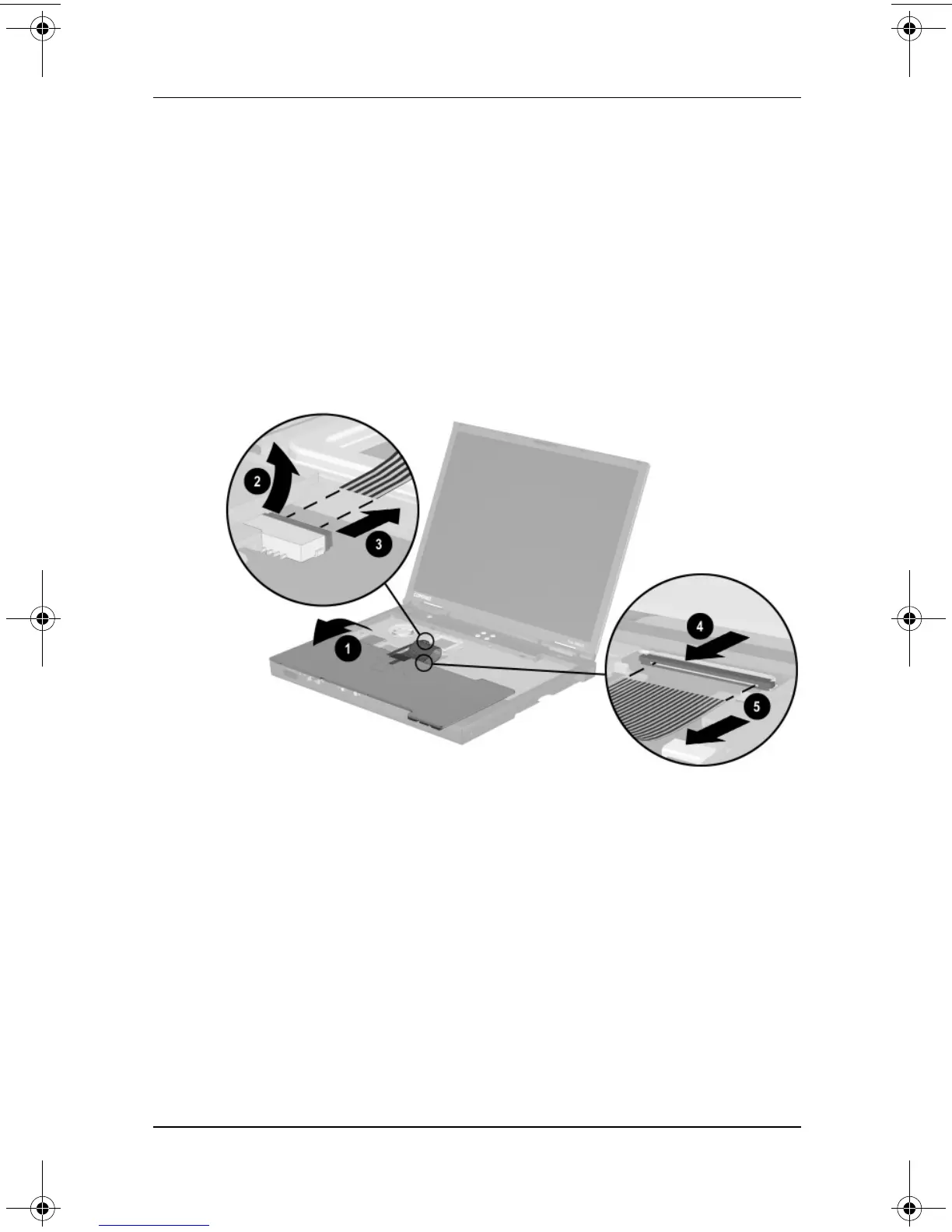

Figure 5-12. Disconnecting the Pointing Device and
Keyboard Cables
11. Remove the keyboard.
Reverse the preceding procedure to replace the keyboard.
