5–24 Maintenance and Service Guide
Removal and Replacement Procedures
5. Spread the retaining tabs 1 that secure the memory
expansion board to the socket. The board rises up at a
45-degree angle (Figure 5-14).
6. Pull the board away from the socket at a 45-degree angle 2.

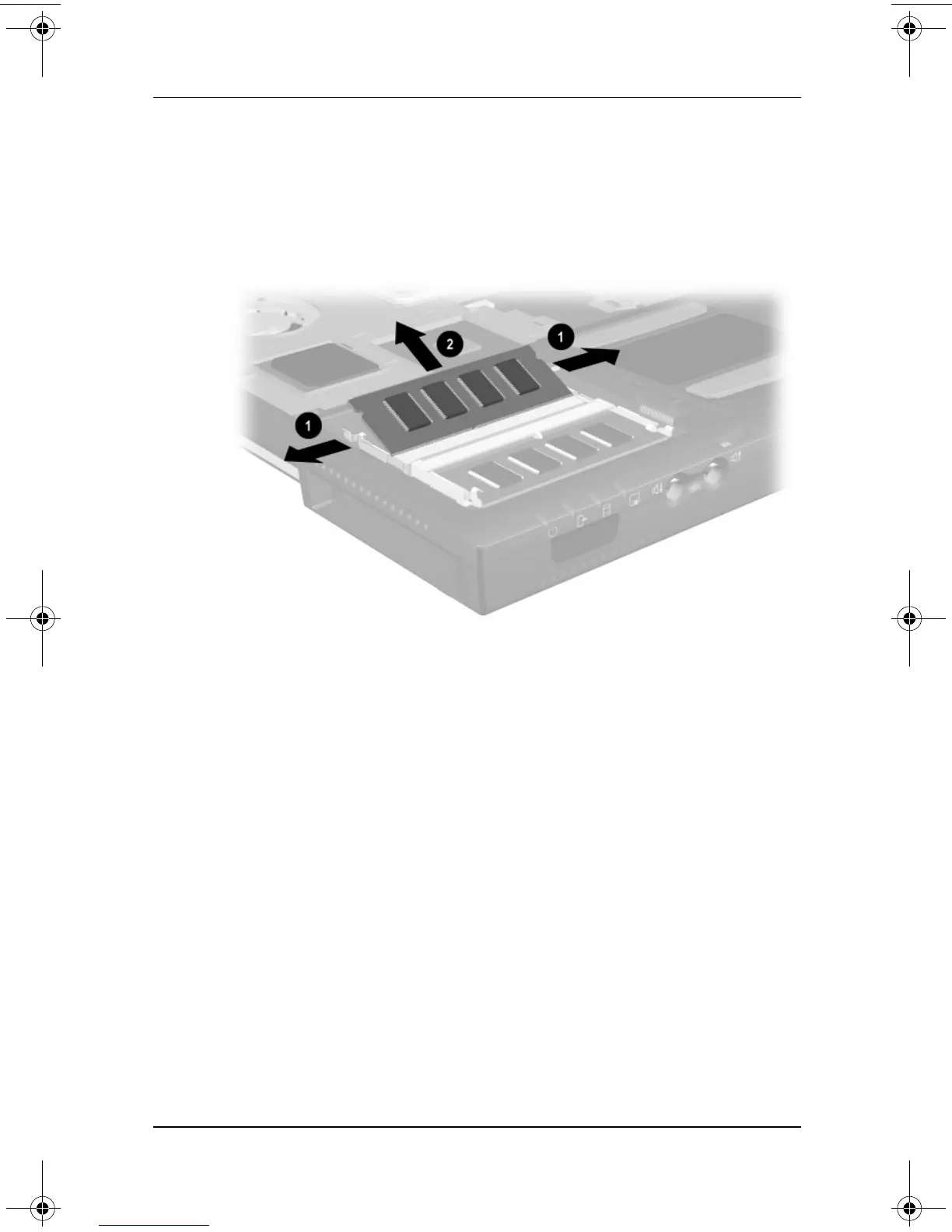

Figure 5-14. Removing a Memory Expansion Board
Reverse the preceding procedure to replace a memory
expansion board.
