5–26 Maintenance and Service Guide
Removal and Replacement Procedures
4. Lift up on the left side of the TouchPad 1 until it disengages
from the top cover (Figure 5-15).
5. Swing the TouchPad up and back 2 and rest it on the
top cover.
6. Disconnect the TouchPad cables 3 and 4 from the
system board.

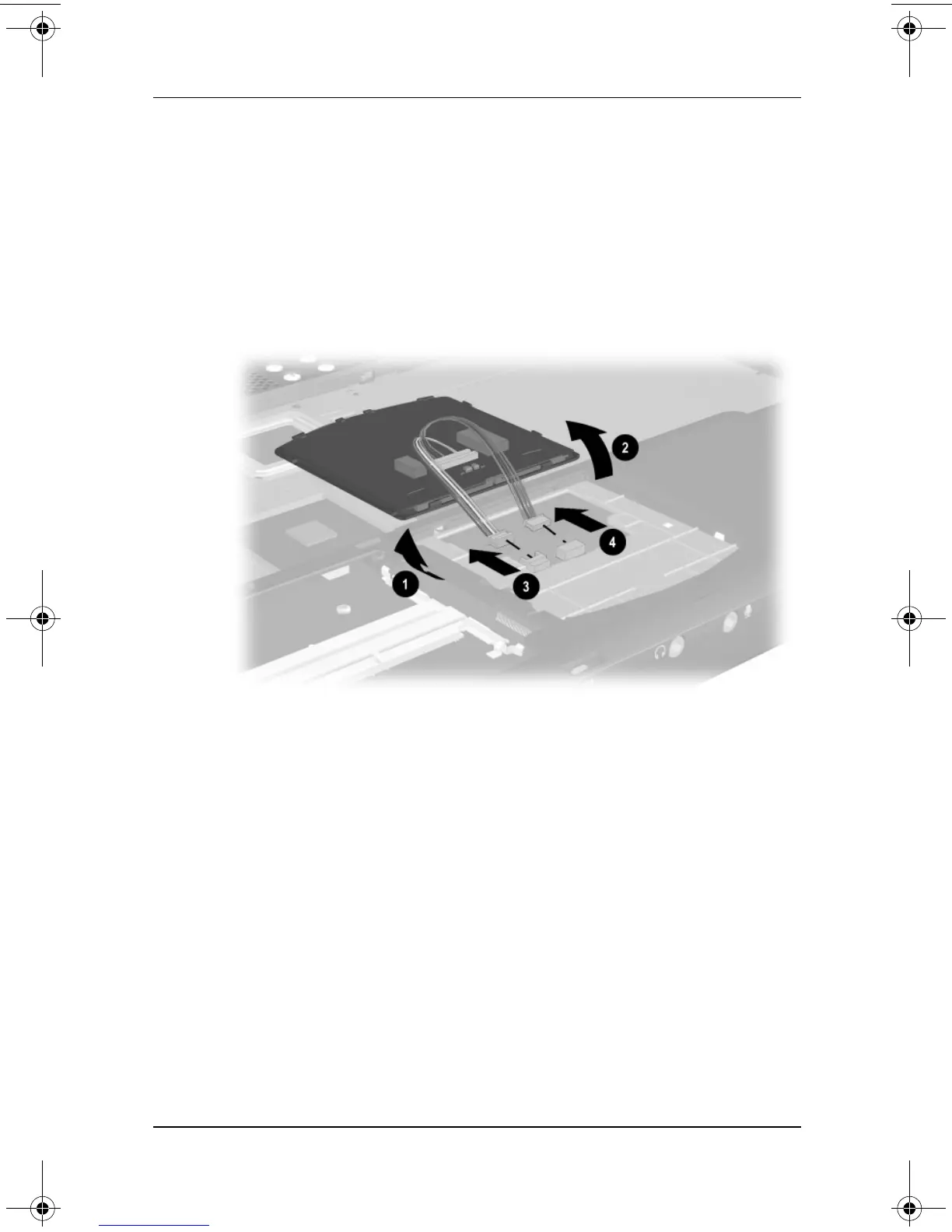

Figure 5-15. Removing the TouchPad
7. Remove the TouchPad.
Reverse the preceding procedure to replace the TouchPad.
