Removal and Replacement Procedures
Maintenance and Service Guide 5–45
✎
Steps 8 and 9 apply only to Evo Notebook N620c, N610c, and
N610v models.
8. Remove the three PM2.0 × 4.0 screws 1 that secure the fan to
the heat sink (Figure 5-30).
9. Lift the fan out of the heat sink 2.

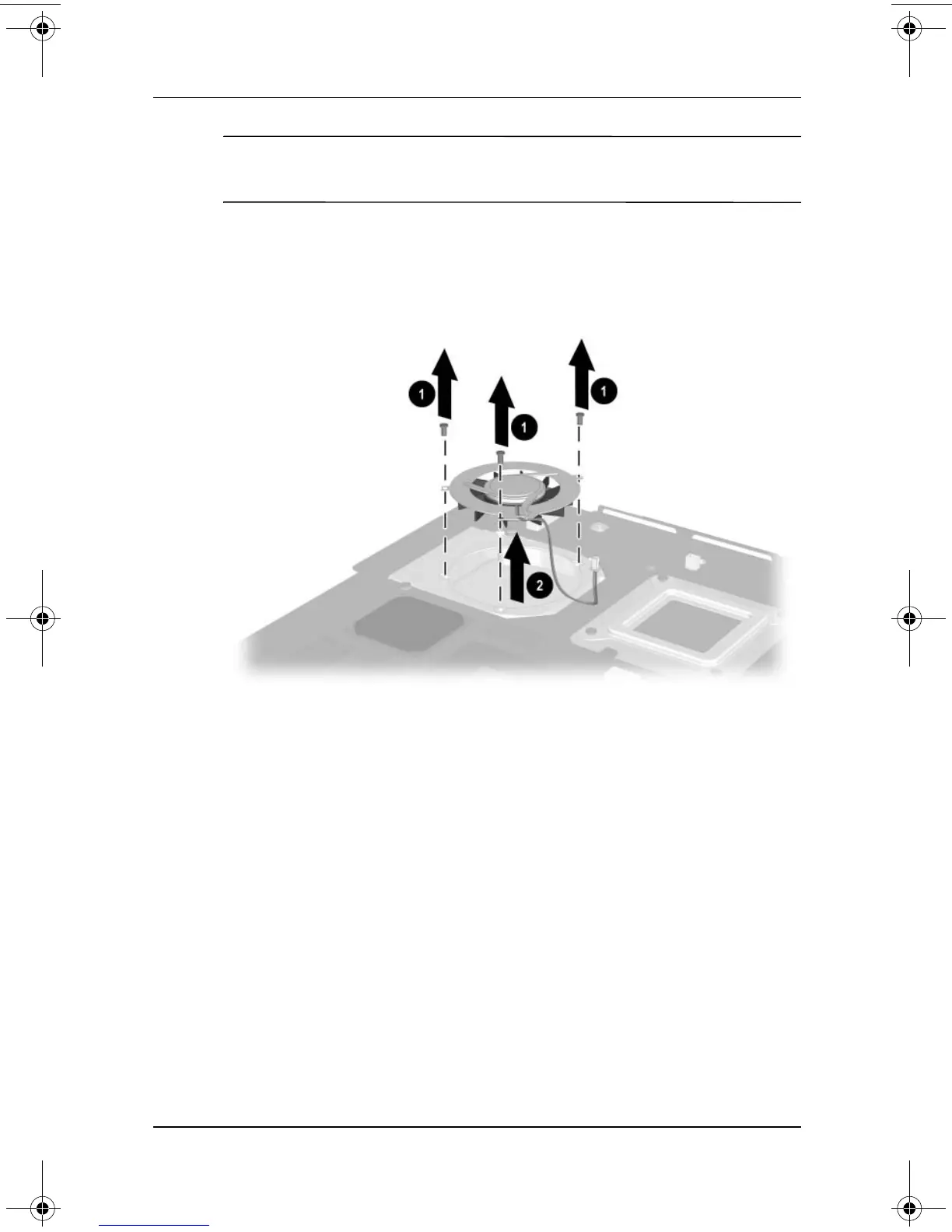

Figure 5-30. Removing the Fan on Evo Notebook N620c,
N610c, and N610v Models
10. Remove the fan.
Reverse the preceding procedure to replace the fan.
