Removal and Replacement Procedures
Maintenance and Service Guide 5–53
3. Lift the left and right edges of the DC-DC converter board to
disconnect the board from the system board (Figure 5-35).

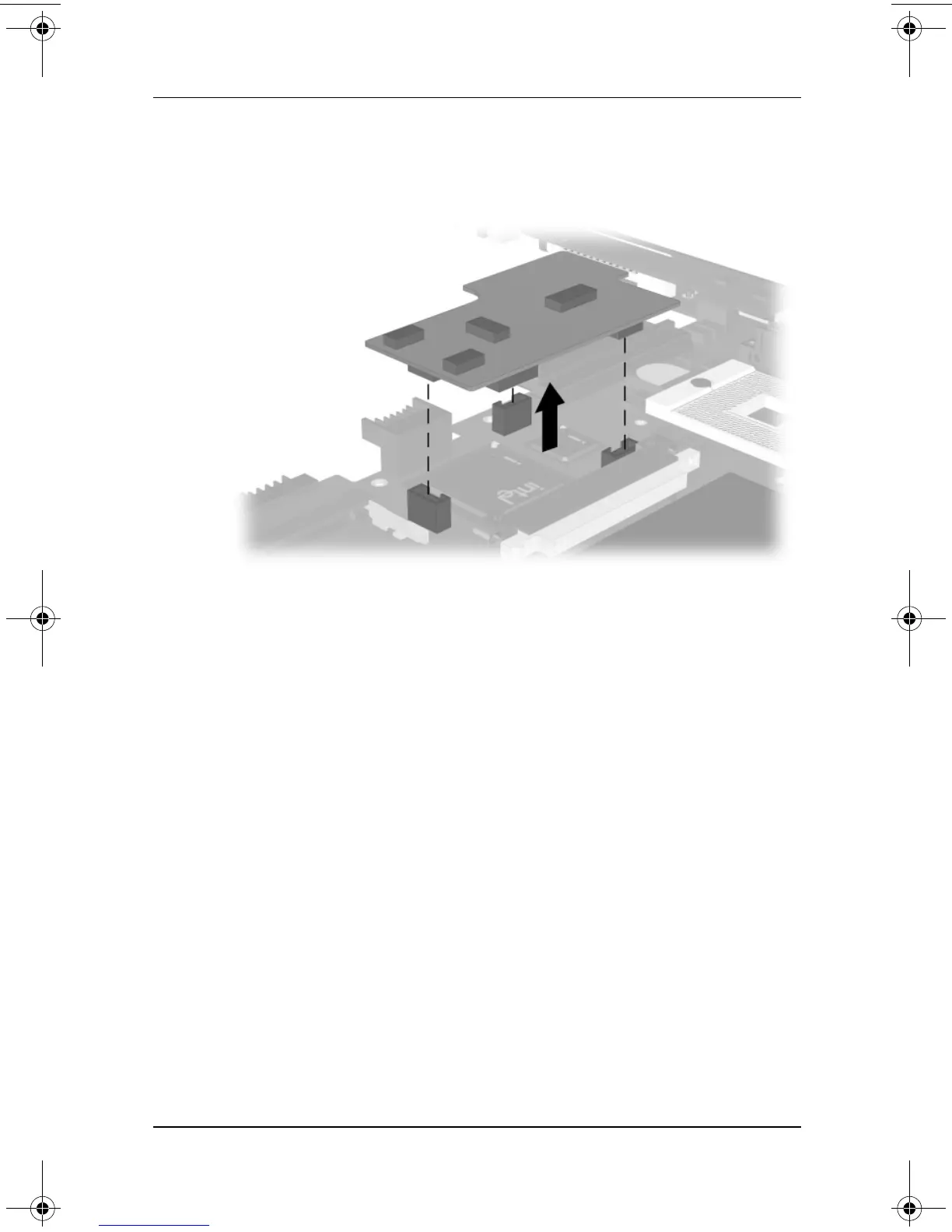

Figure 5-35. Removing the DC-DC Converter Board
4. Remove the DC-DC converter board.
Reverse the preceding procedure to replace the DC-DC converter
board.
279362-003.book Page 53 Monday, May 19, 2003 1:28 PM
