A–10 Maintenance and Service Guide

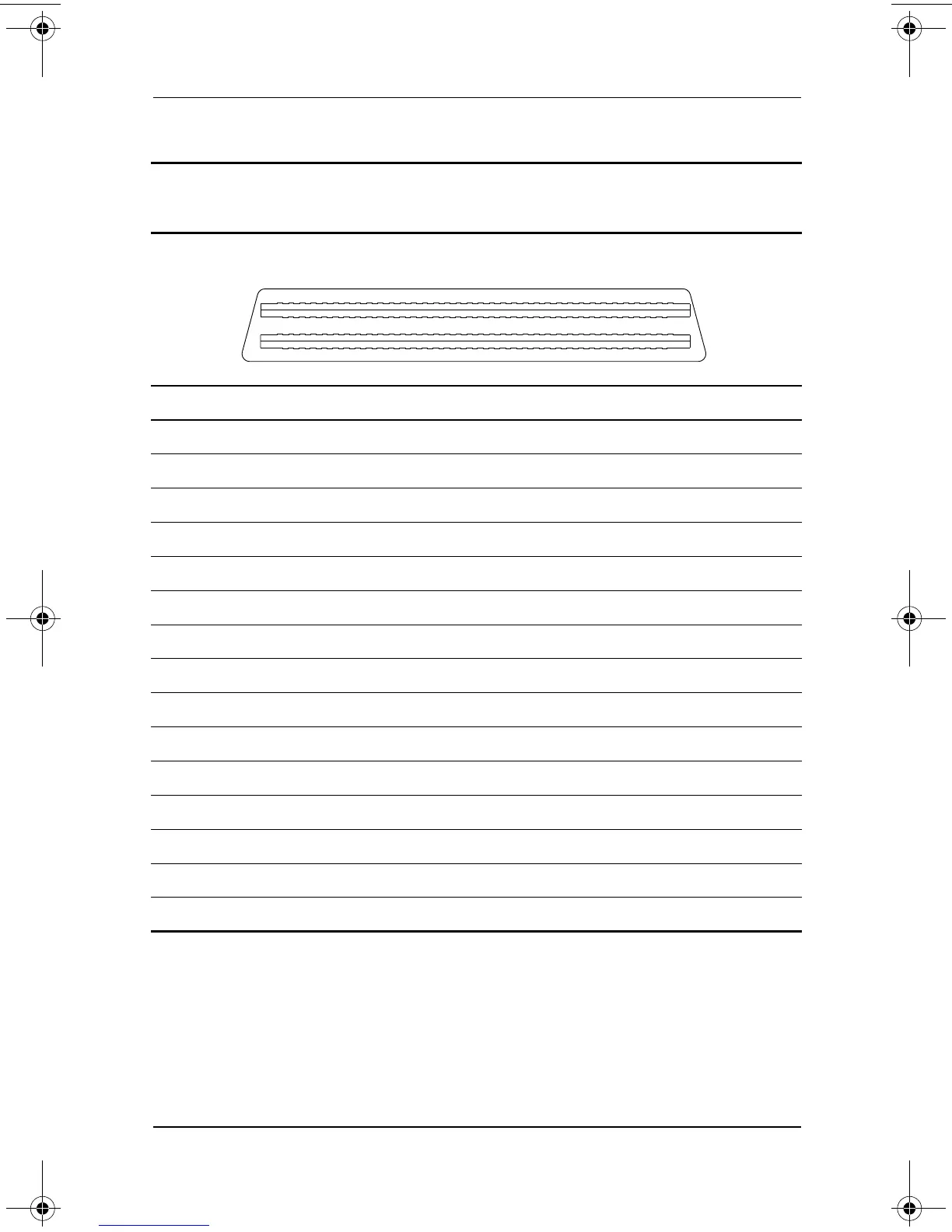

Connector Pin Assignments
Table A-10
Docking (Continued)
Pin Signal Pin Signal
91 PS2 VCC 106 GND
92 SERIRQ 107 AD[15]
93 PS2 CLK 108 AD[13]
94 EXPREQ 109 AD[11]
95 AD[29] 110 AD[09]
96 AD[31] 111 GND
97 AD[30] 112 AD[06]
98 AD[28] 113 AD[04]
99 AD[26] 114 AD[02]
100 GND 115 AD[00]
101 AD[24] 116 GND
102 AD[22] 117 FRAME
103 AD[20] 118 TRDY
104 AD[18] 119 STOP
105 AD[16] 120 PAR
31
61
91
1
120
90
60
30
