Screw Listing
Maintenance and Service Guide C–9

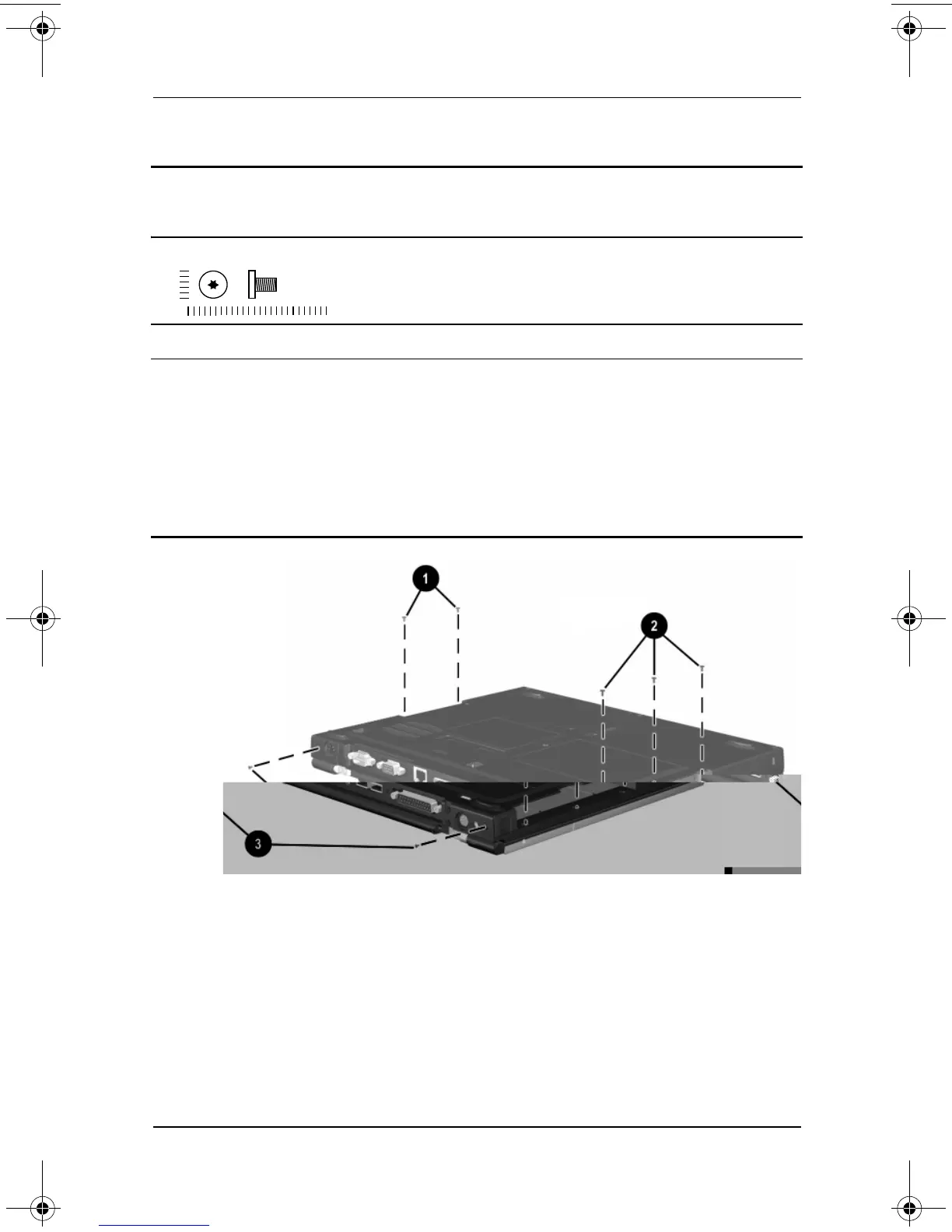

Figure C-8. TM2.5 × 5.0 Screw Locations
Table C-5
Torx T8 Metric 2.5 × 5.0 Screw
Color Qty Length Thread
Head
Width
Black 12 5.0 mm 2.5 mm 4.0 mm
Where used:
1 Evo Notebook N600c models—Two screws that secure the top cover to the
base enclosure in the hard drive bay (documented in Section 5.12)
2 Three screws that secure the top cover to the base enclosure in the
Media Bay (documented in Section 5.12)
3 Evo Notebook N600c models—Two screws that secure the top cover to the
base enclosure (documented in Section 5.12)
