PM1395
GUIDE TO INSTALL HEELS
To install the heels on the case supports, read the following instruction.
Feeder offers the choice of using 2 heels to keep it balanced while the cover is opened.
If required this choice, proceed as next:
a) Find front and rear heels.
b) Set each heel to the base as the figure
shows, using the apropiate screws.

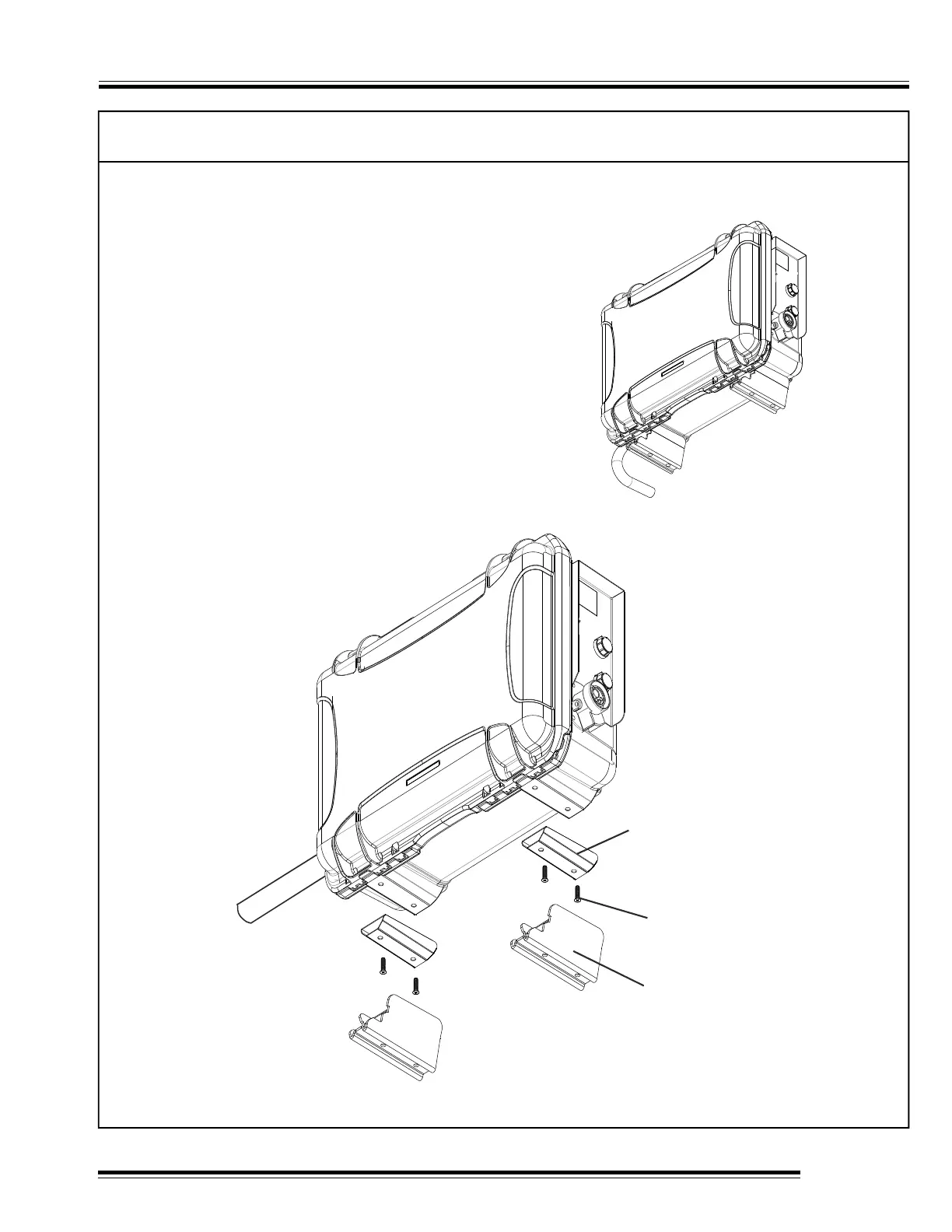

FIGURE 7-2 Heels Installation
1).- PR1177 Internal reinforcement (2 pieces)
2).- MT08699 Screw (4 pieces)
3).- PP4556 heel (2 pieces)
Feeder with heels placed
14
