PM1395
LIST 7-2 Wire drive and gear
3
11
10
8
5
6
9
4
7
IT. No PART No. DESCRIPTION QUANTITY
1 PB2303 Feed plate with groove 1
2 MB06011R Arm compl (With central gear) 1
3 MF02408R Shaft 1
4 MB06013R Wire pressure knob 1
5 ME02417R Drive gear 1
6 ----- Roll (Ask to your distributor) 2
7 MG02226R Inlet guide tube 1
8 PP4429 Fix knob (Gun loking tab) 1
9 MT08685R Fix bolt 1
10 MO00033 Opressor 1
11 ME02451 Moving arm central gear 1

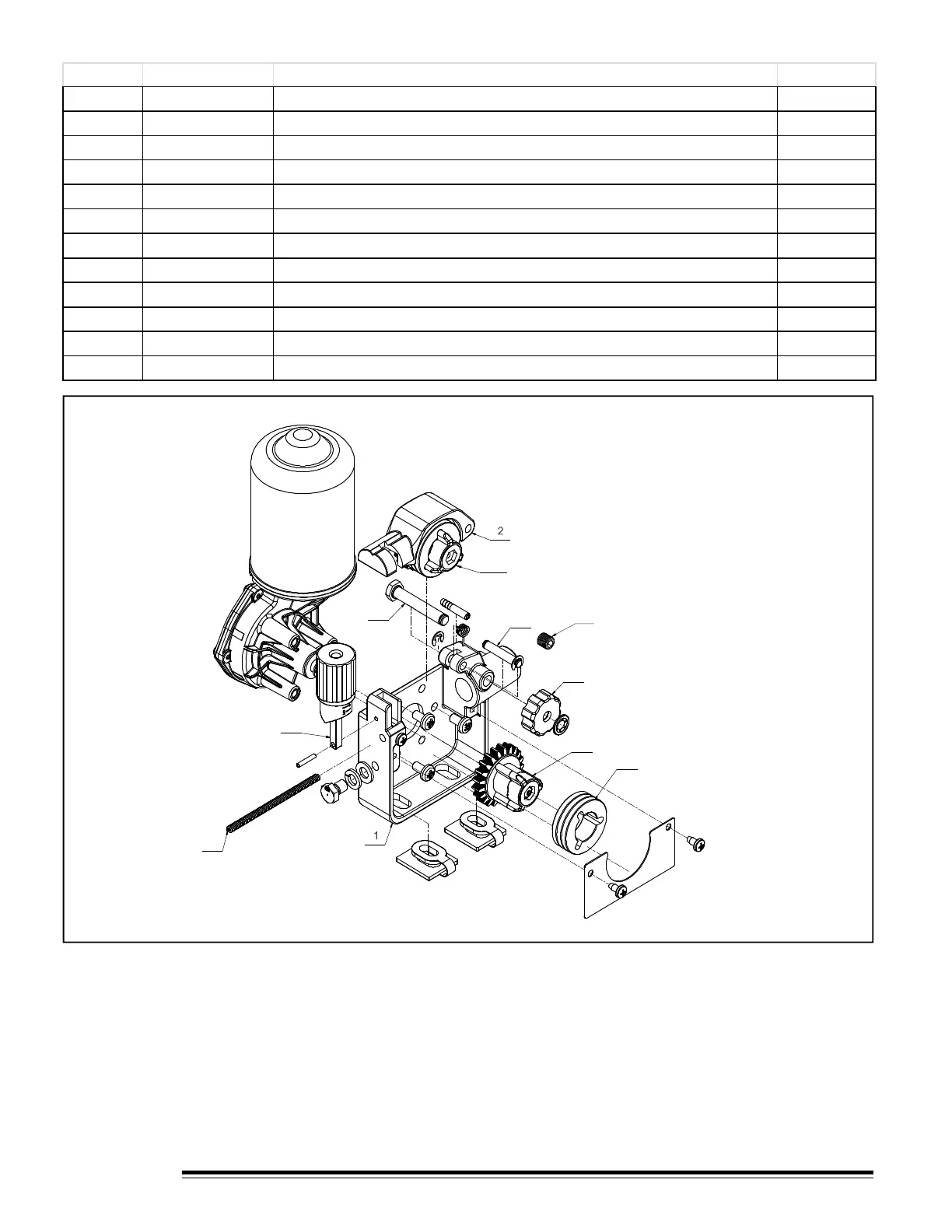

FIGURE 7-3 Wire drive and gear
15
